Product Description

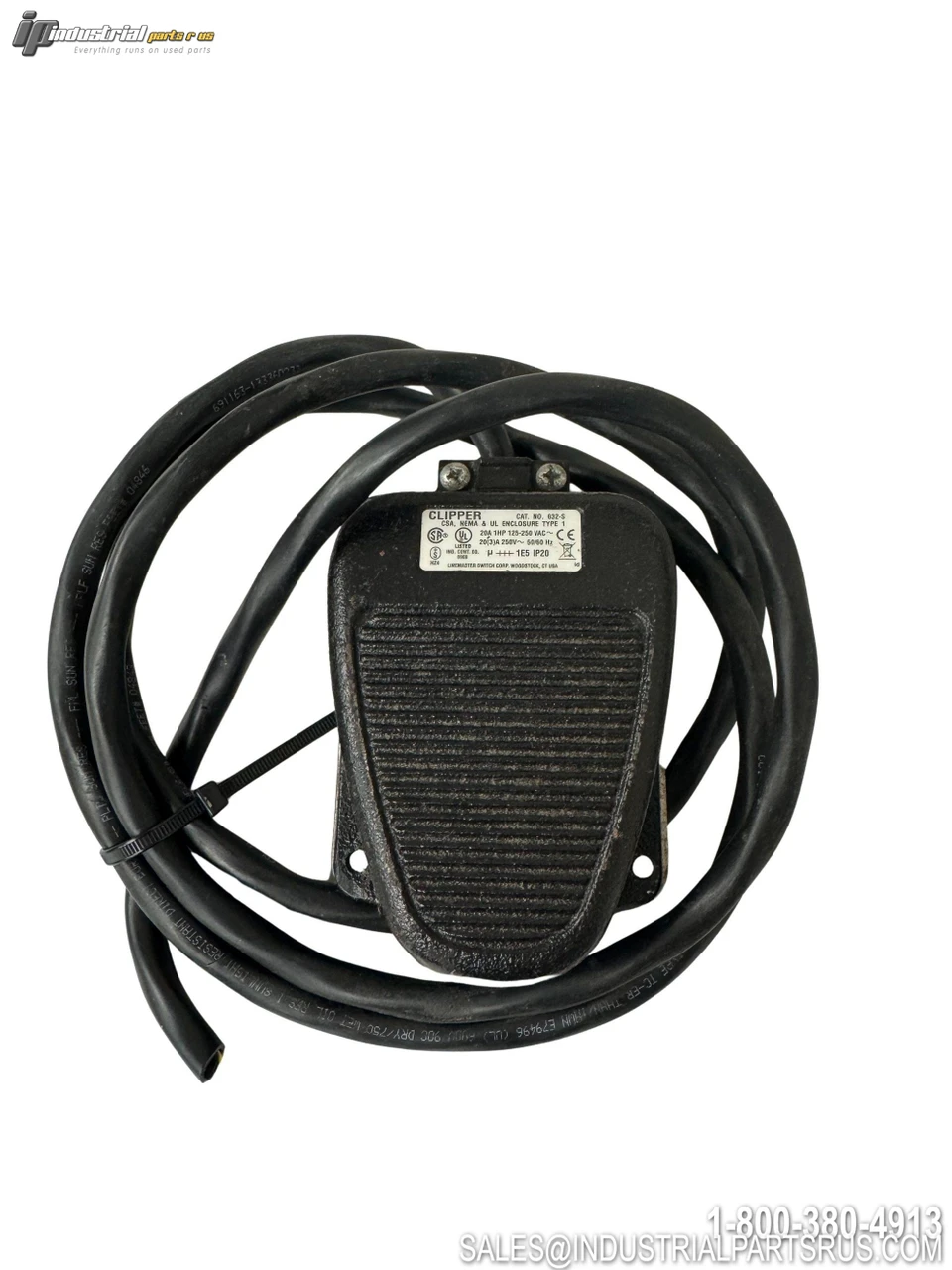

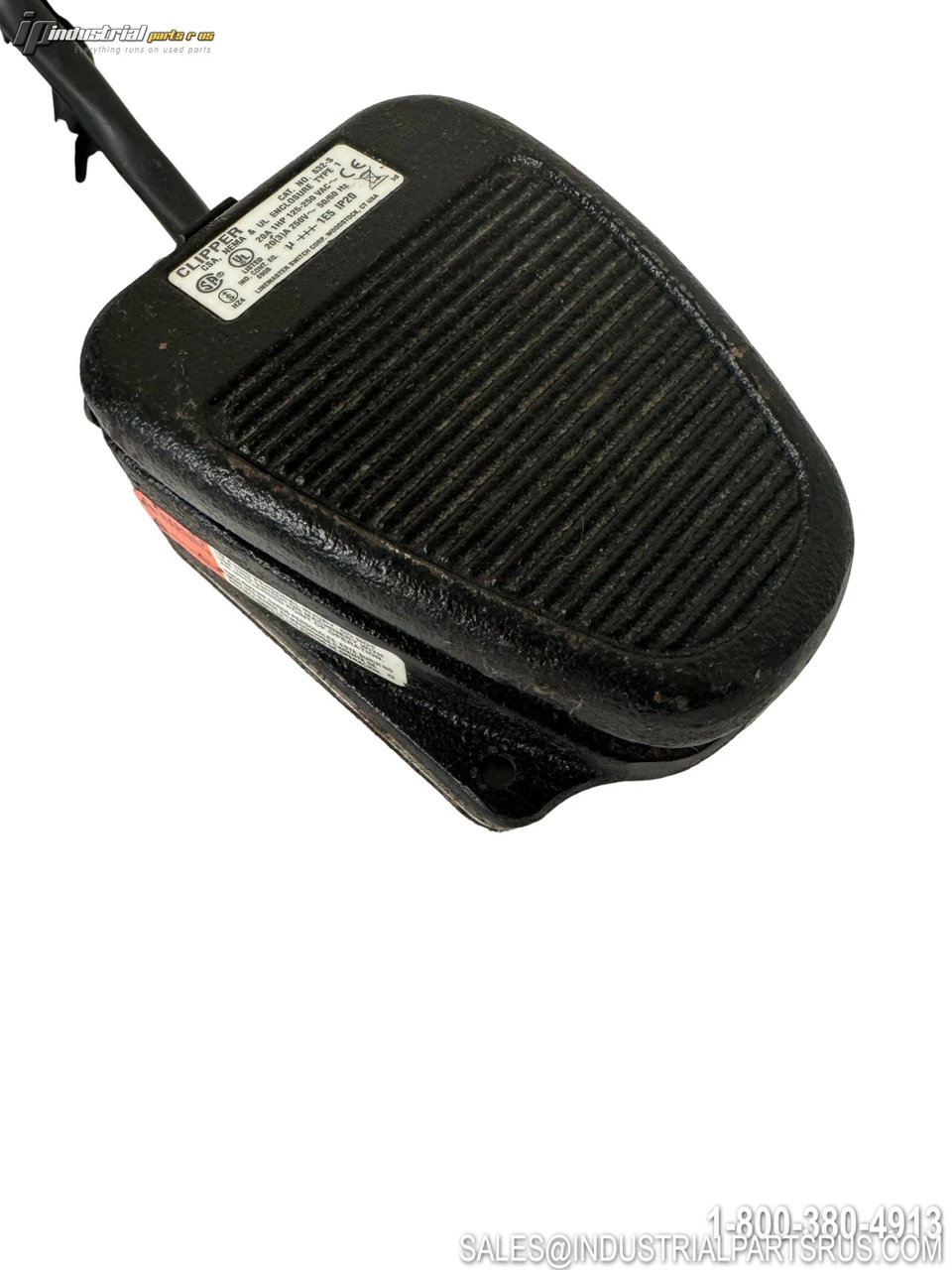

The Linemaster 632-S is a single-pedal, momentary-action Clipper Series foot switch designed for medium-duty general purpose industrial applications. It features a durable cast iron housing with a non-skid base pad, adjustable strain relief connector, and a splash-resistant interior switch. The SPDT (Form C) contact configuration makes it suitable for a wide range of machine control, welding, and automation uses.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Linemaster |
| Model / Part Number | 632-S |
| Series | Clipper |
| Product Type | Foot Switch |
| Switch Operation | Momentary (Off-(On)) |
| Contact Configuration | SPDT (Form C) |
| Number of Poles | 1 |
| Number of Pedals | 1 (Single) |
| AC Contact Rating (Current) | 20A @ 125–250 VAC |
| Horsepower Rating | 1 HP @ 125–250 VAC |
| Voltage Rating | 125/250 VAC |
| Housing Material | Cast Iron |
| Color | Black |
| Switch Connection | Screw Terminal |
| NEMA Enclosure Rating | NEMA Type 1 |
| IP Rating | IP20 |
| Dimensions (L x W x H) | 4-1/2 in x 3-1/2 in x 1-1/2 in (114.3 mm x 88.9 mm x 38.1 mm) |
| Weight | 2-1/4 lbs |
| Foot Guard Included | No |
| Mounting | 2 Mounting Holes (floor or equipment) |
| Base | Non-skid base pad |
| Strain Relief | Adjustable strain relief connector |
| Hazardous Location Rating | Not Rated |
| Certifications | UL, CSA, EN 60529 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Clipper
Enclosure Type NEMA Type 1
Part Number 632-S
Shelf D-12
Model 632-S
MPN 632-S
Type Foot Switch
