Product Description

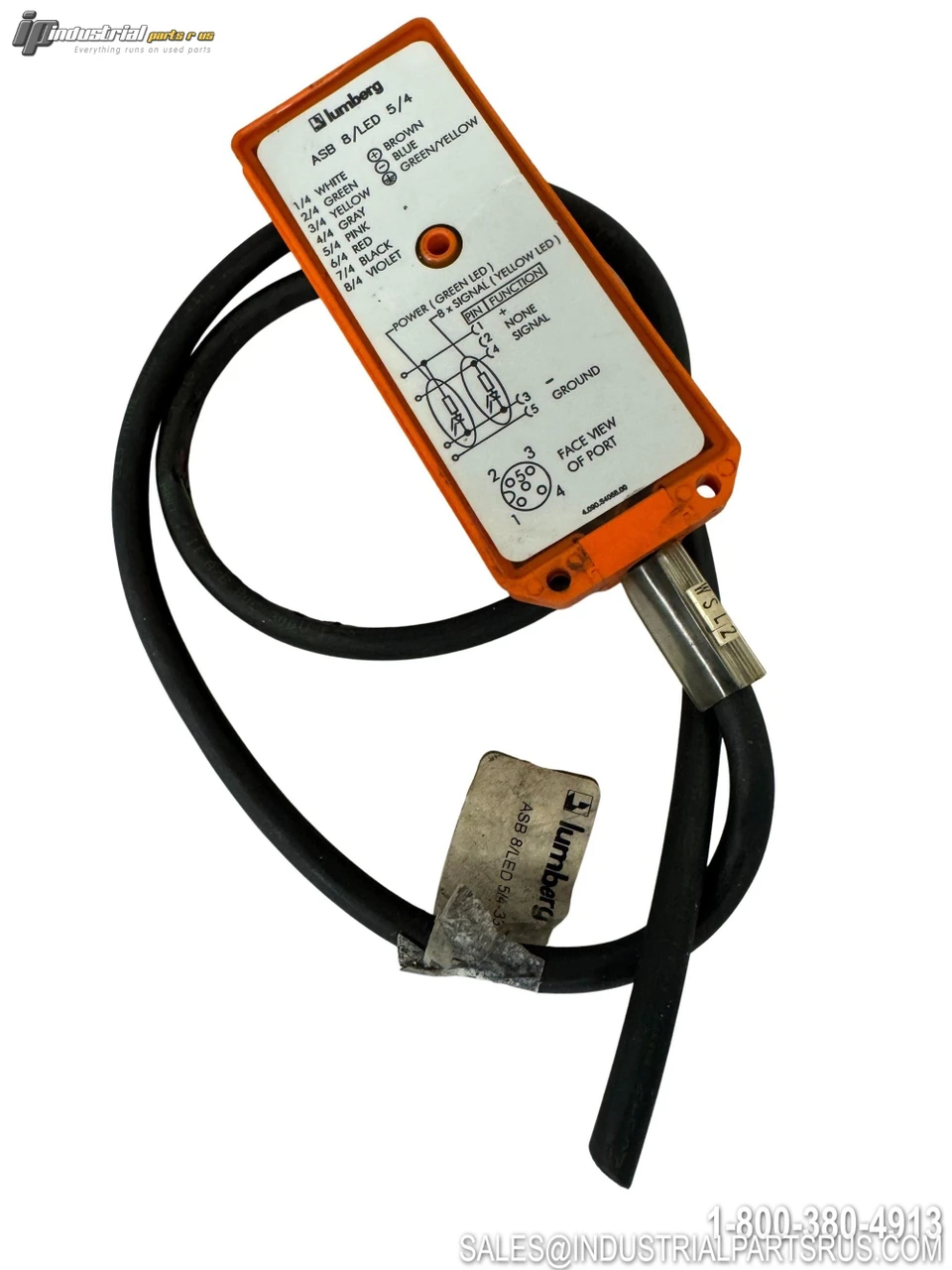

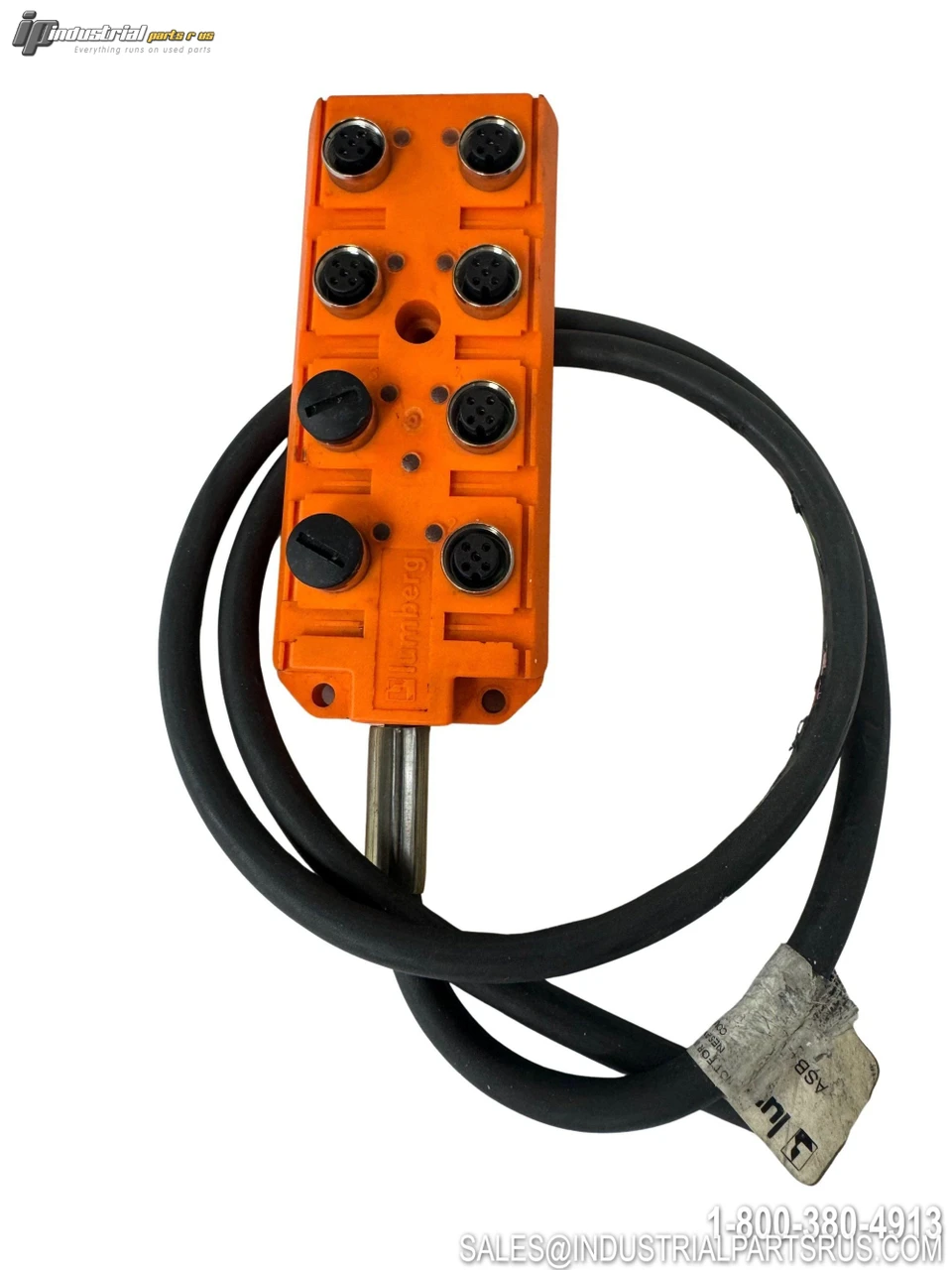

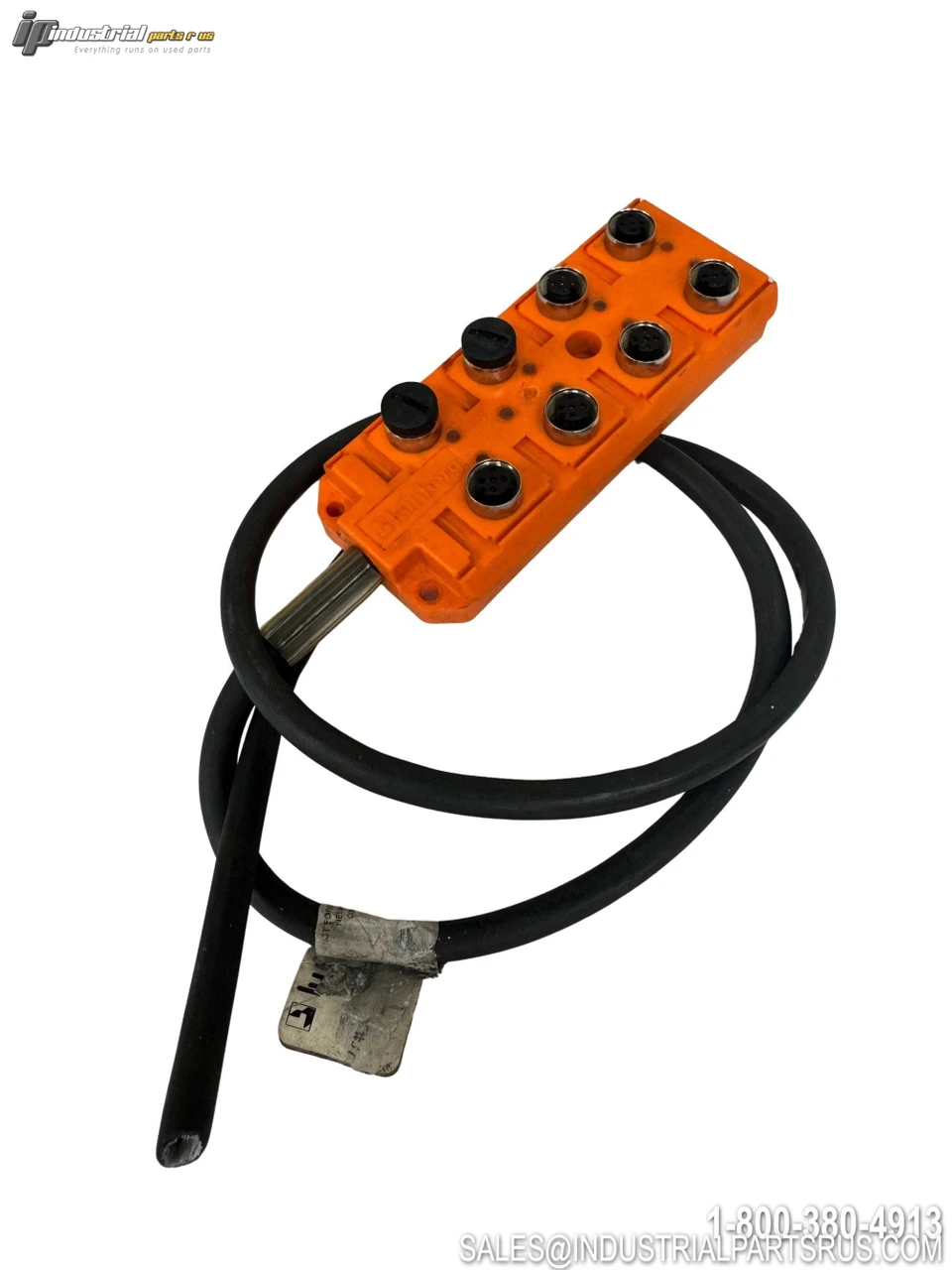

The Lumberg ASB 8/LED 5/4 is a Micro M12 actuator/sensor distribution box designed for industrial automation applications. It provides 8 ports with M12, 5/4-pole, A-coded I/O connections, one signal per port, and features built-in LED indicators for system supply status (green) and individual port function (yellow). The unit is rated IP67 and NEMA 6P for reliable operation in demanding industrial environments. Digital signal type with M12 communication standard.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Lumberg Automation |
| Model / Part Number | ASB 8/LED 5/4 |
| Product Series | ASB Series |
| Product Type | Actuator/Sensor Distribution Box (Passive) |
| Number of Ports | 8 |
| Number of Poles (Ways) | 4 (5/4-pole) |
| Signals Per Port | 1 |
| Output Connector Type | M12, A-coded, 5-pole female |
| Control Cable Interface | Open end / pigtail (no plug fitted) |

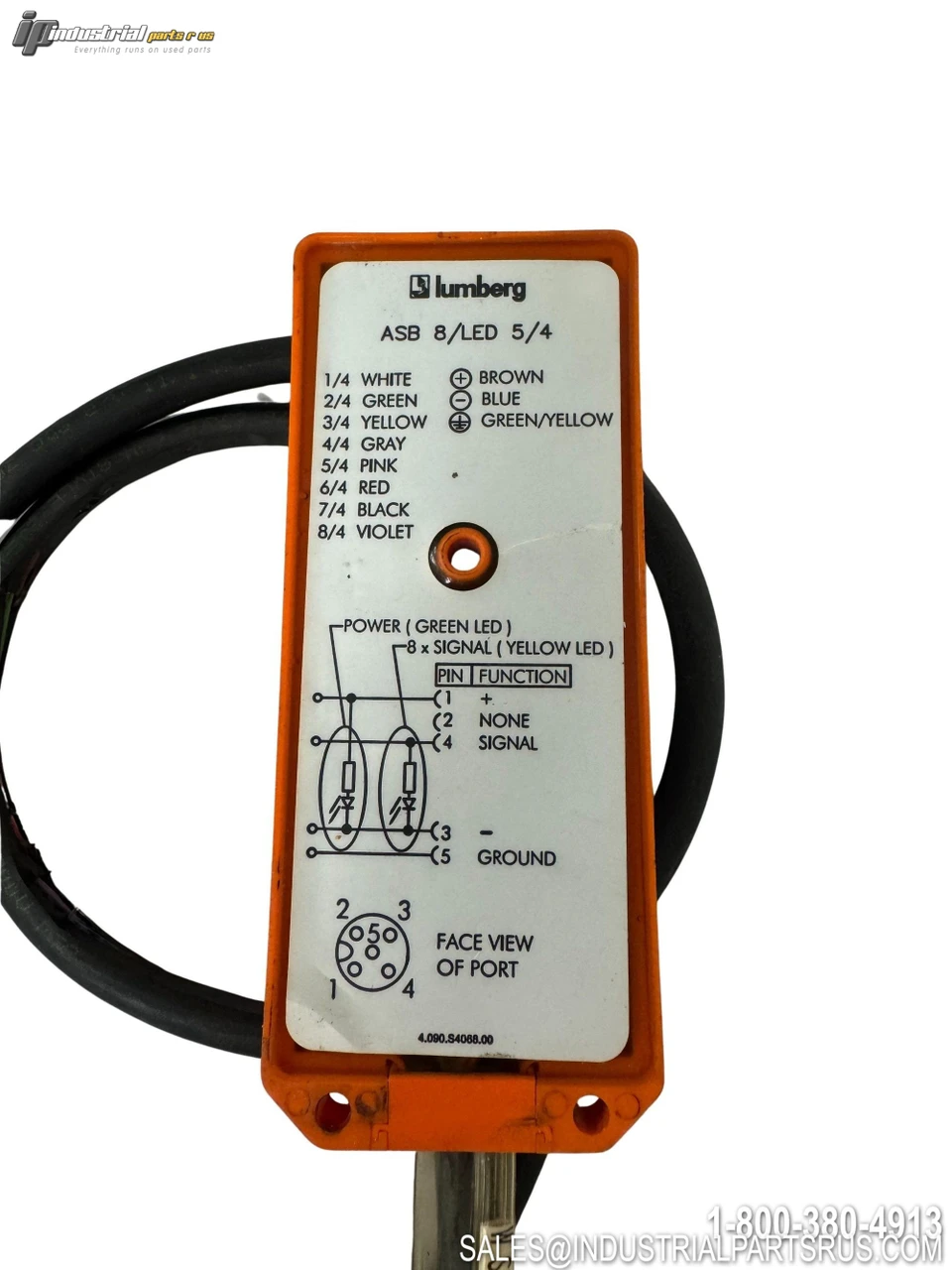

| LED Indicators | Green (system supply), Yellow (port status/function) |
| Operating Voltage | 10 – 30 V DC |
| Max Measurement Voltage | 32 V DC |
| Rated Current Per Port | 4 A |
| Maximum Total Current | 12 A |
| Contact Resistance | ≤ 5 mΩ |
| Insulation Resistance | ≥ 10 MΩ |
| IP Rating | IP67 / NEMA 6P |
| Pollution Degree | 3 |
| Operating Temperature | -15°C to +80°C |
| Housing Material | Plastic / TPE (TPU) |
| Housing Color | Orange |
| Contact Plating | Pre-nickelled and gold-plated |
| RoHS Compliant | Yes |
| Manufacturer | Lumberg Holding GmbH & Co. KG (Lumberg Automation / Belden) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type M12 Connector - 5 Pole, A-coded
Manufacturer Lumberg
Enclosure Type IP67 / NEMA 6P
Part Number ASB 8/LED 5/4
Shelf K-6
Model ASB 8/LED 5/4
MPN ASB 8/LED 5/4
Type I/O Module
