Product Description

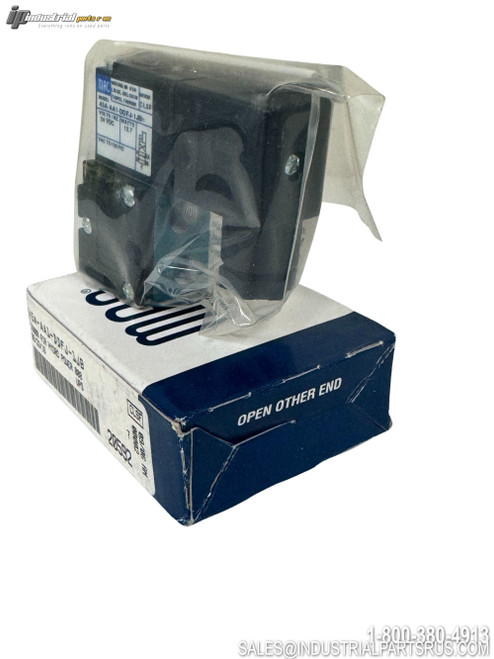

The MAC Valves 45A-AA1-DDFJ-1JB is a 45 Series direct-solenoid-operated 4/2-way poppet valve designed for precise pneumatic directional control. It features a 24 VDC, 12.7-watt coil, four 1/8" NPTF female ports, a non-locking recessed manual operator, and a rectangular plug-in DIN 43650 electrical connector. The balanced poppet and short-stroke MACSOLENOID design deliver fast, repeatable response times and long service life across high-cycle industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | MAC Valves |
| Model / Part Number | 45A-AA1-DDFJ-1JB |
| Product Series | 45 Series |
| Valve Type | Direct Solenoid Operated Poppet Valve |
| Valve Function | 4-Way / 2-Position (4/2) |
| Number of Ports | 4 Port Body |
| Port Size / Thread Type | 1/8" NPTF (Female) |
| Coil Voltage | 24 VDC |
| Coil Power | 12.7 W |
| Flow Coefficient (Cv) | 0.15 |
| Pressure Range | Vacuum to 120 PSI (0–8.3 bar) |
| Media | Compressed Air, Inert Gases, Vacuum |
| Manual Operator | Non-Locking Recessed Manual Operator |
| Electrical Connection | Rectangular Plug-In DIN 43650 Connector |
| Flow Controls | None (No Flow Controls) |
| Operation Type | Monostable (Spring Return) |
| Return Mechanism | Steel Mechanical Spring Reset |
| Mounting / Installation | Individual In-Line |
| Body Material | Aluminum |
| Dimensions (H x W x D) | 63 mm x 25 mm x 62 mm |
| Weight | 0.30 lbs |
| Compliance Standards | IEC 61508, IEC 61511, ISO 13849, REACH |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Country/Region of Manufacture Taiwan
Manufacturer Mac
Part Number 45A-AA1-DDFJ-1JB
Shelf A-15
Model 45A-AA1-DDFJ-1JB
MPN 45A-AA1-DDFJ-1JB
Type Solenoid Valve
