Product Description

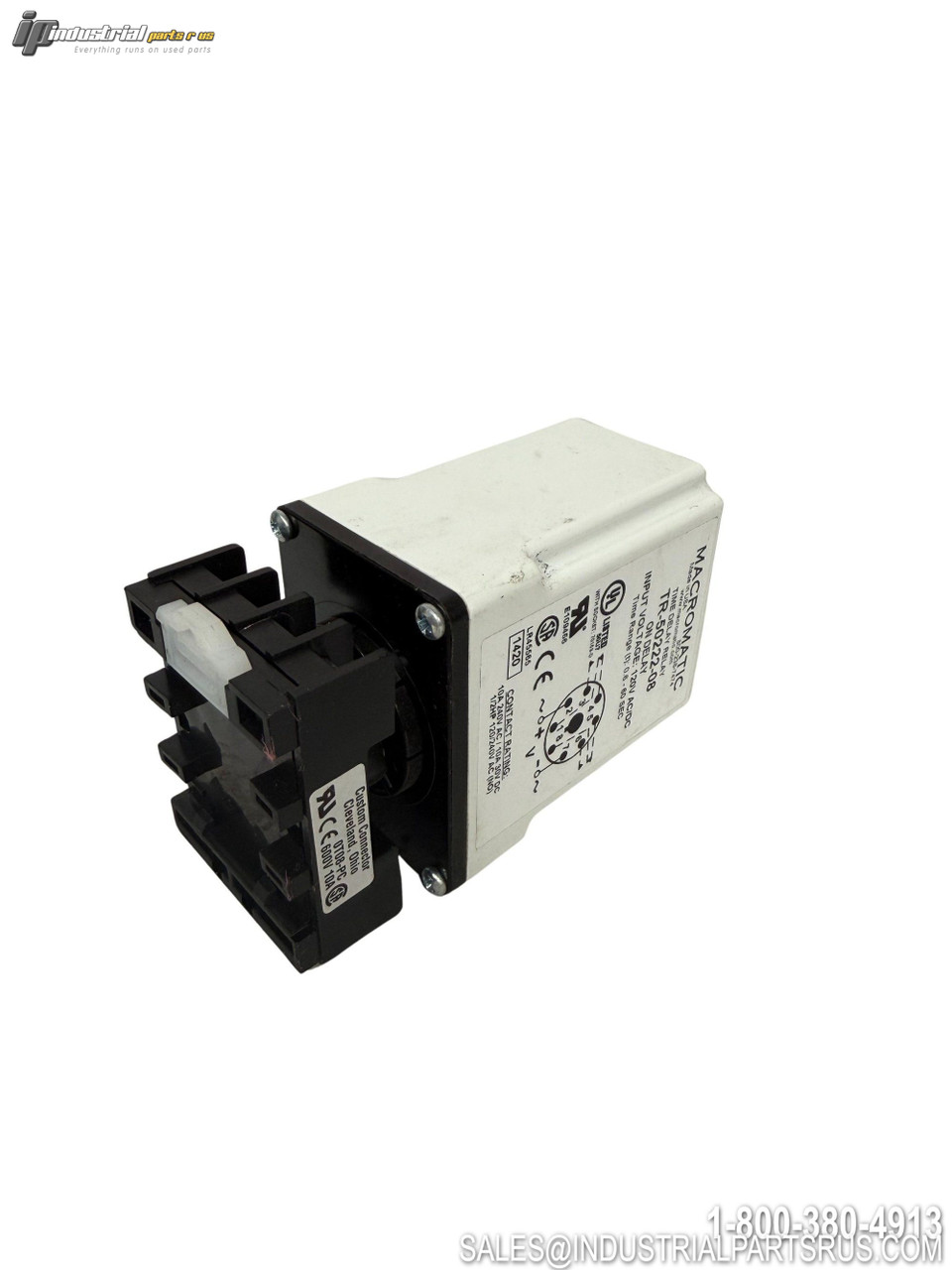

The Macromatic TR-50222-08 is a non-programmable time delay relay from the TR-5 series featuring on-delay timing function. Upon application of input voltage, the time delay begins and at the end of the delay period, the output contacts are energized. This relay utilizes industry-standard 8-pin octal socket mounting and provides reliable timing control for industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Macromatic |
| Model/Part Number | TR-50222-08 |
| Product Type | Time Delay Relay |
| Series | TR-5 |
| Function | On Delay |
| Coil Voltage | 120VAC/DC |
| Contact Configuration | DPDT |
| Contact Rating (AC) | 10A @ 240VAC |
| Contact Rating (DC) | 10A @ 30VDC |
| Time Range | 0.6 - 60 Seconds |
| Number of Pins | 8 |
| Socket Type | 8-pin Octal |
| Mounting Type | Plug-in |
| Dimensions | 3.5"D x 1.7"W x 2.4"H |
| Operating Temperature | -28°C to 65°C (-18°F to 149°F) |
| Voltage Tolerance | +10/-15% of nominal |
| Reset Time | 0.1 Seconds |
| Mechanical Life | 2,000,000 operations |
| Electrical Life | 100,000 operations |
| Load Burden | 2 VA |
| Certifications | UL, CSA, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Mounting Style Plug-In
Current Rating 10A
Manufacturer Macromatic
Part Number TR-50222-08
Series TR-5
Shelf C-10 Tub 3
Model TR-50222-08
Coil Voltage 120V AC/DC
MPN TR-50222-08
Type Time Delay Relay
