Product Description

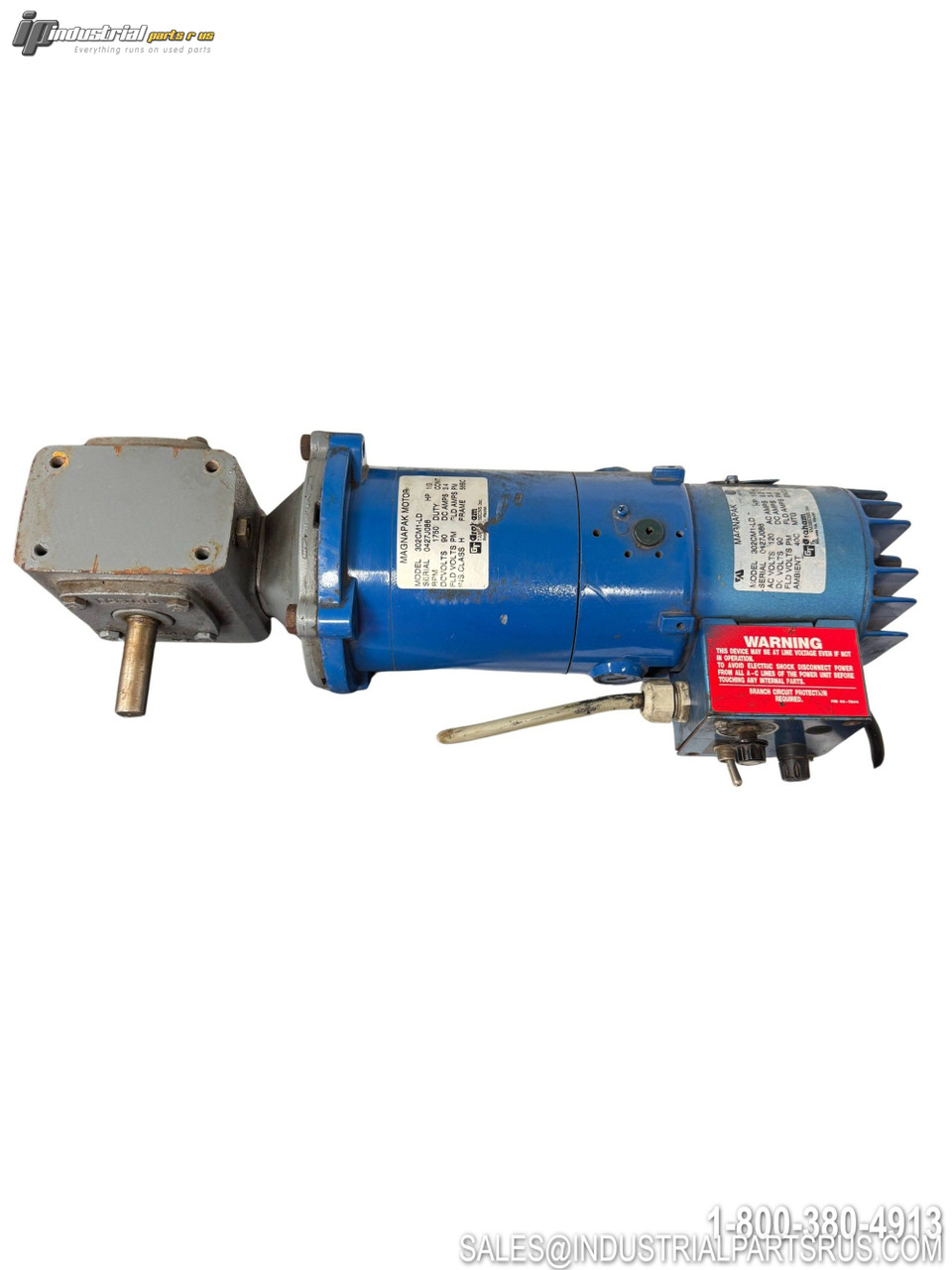

The Magnapak Motor 302CM1-LD is a DC motor system manufactured by Graham Transmissions that combines a 1/3 horsepower DC motor with integrated controller and operator controls. This motor features 120VAC input voltage and provides 90VDC output for variable speed applications. The system includes no base mounting option and comes with built-in controls and power cord for complete operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Magnapak Motor |
| Model/Part Number | 302CM1-LD |
| Manufacturer | Graham Transmissions |
| Motor Type | DC Motor |
| Horsepower | 1/3 HP |
| Input Voltage | 120 VAC |
| Output Voltage | 90 VDC |
| Base Option | No Base |
| Controls Option | With Controls |
| Power Cord Option | With Power Cord |
| Series | Magnapak |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 3.2 A
Manufacturer Magnapak Motor
Shaft Diameter 0.625 in
Enclosure Type TEFC
Part Number 302CM1-LD
Shelf G-8
Model 302CM1-LD
MPN 302CM1-LD
Type DC Motor
