Product Description

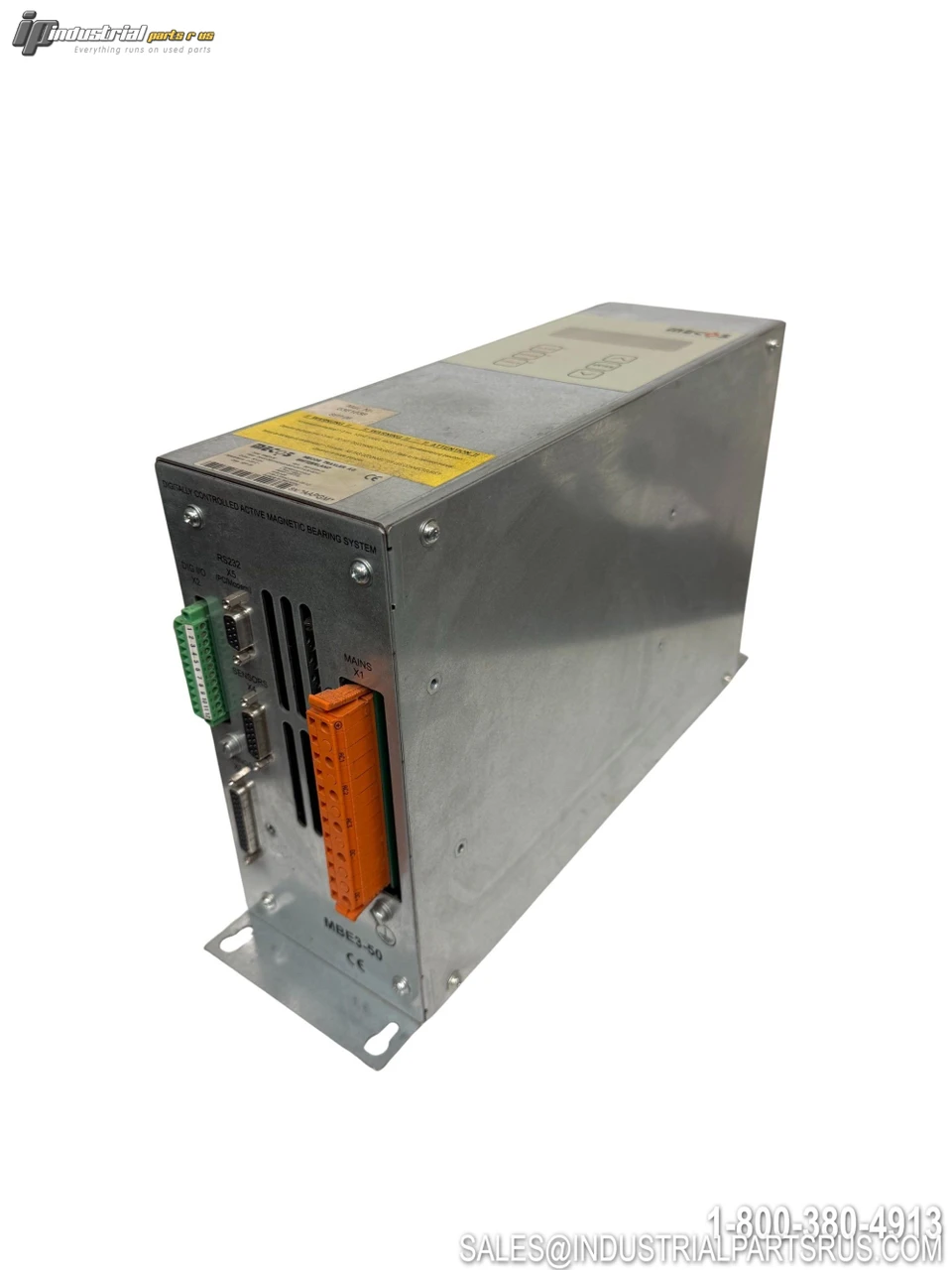

The Mecos (Mecos Traxler AG) MBE3-50 is a digitally controlled active magnetic bearing (AMB) control system designed to levitate and stabilize rotating shafts without mechanical contact. It provides precise, closed-loop electromagnetic control of bearing actuators and is commonly used in high-speed laser cutting and turbomachinery applications, including Trumpf CO2 laser systems (Trumatic L3030, TCL2530, and related platforms). The unit accepts three-phase AC or DC bus input power and delivers a regulated 50V/2A output to drive the magnetic bearing electromagnets at up to 900 Hz operating frequency.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mecos (Mecos Traxler AG) |
| Model / Part Number | MBE3-50 |
| Product Type | Digitally Controlled Active Magnetic Bearing System |
| Input Voltage | 3x 400–500VAC / 400–800VDC |
| Input Current | 1A |
| Input Frequency | 50/60 Hz |
| Phase | 3-Phase |
| Rated Power (VA) | 100 VA |
| Output Voltage | 50V |
| Output Current | 2A |
| Operating Frequency (Bearing) | 900 Hz |
| Operating Temperature | 0°C – 55°C |
| Tightening Torque | 1.7 Nm (15 lb·in) |
| Trumpf Part Number | 0357500 / 0148433 / 0376160 |
| Compatible Equipment | Trumpf Trumatic L3030, TCL2530, TLF CO2 Laser Systems |
| Weight | ~5.20 kg (11.5 lb) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Mecos
Part Number MBE3-50
Shelf E-15
Model BG10328-08
MPN MBE3-50
Type Servo Drive
