Product Description

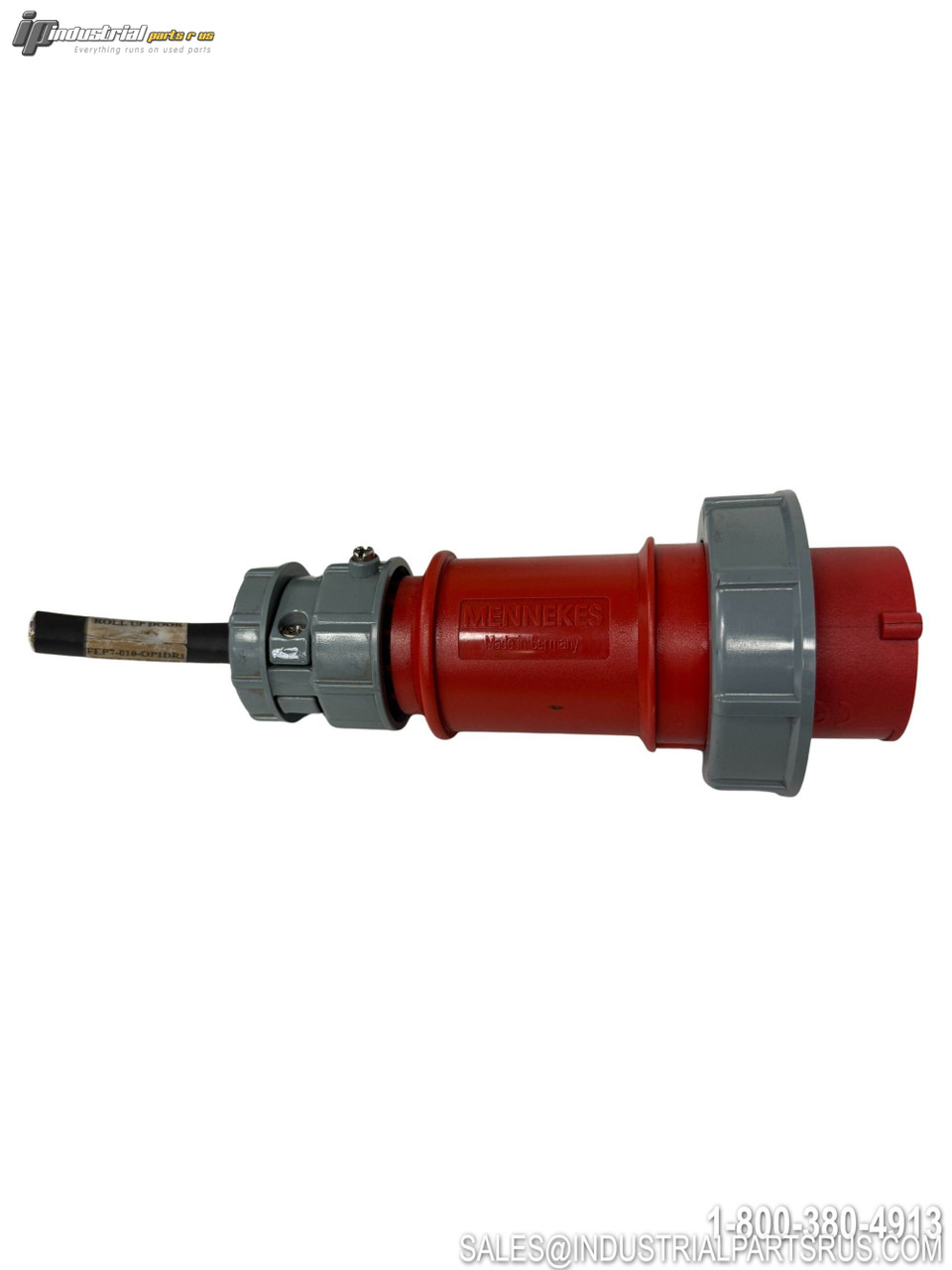

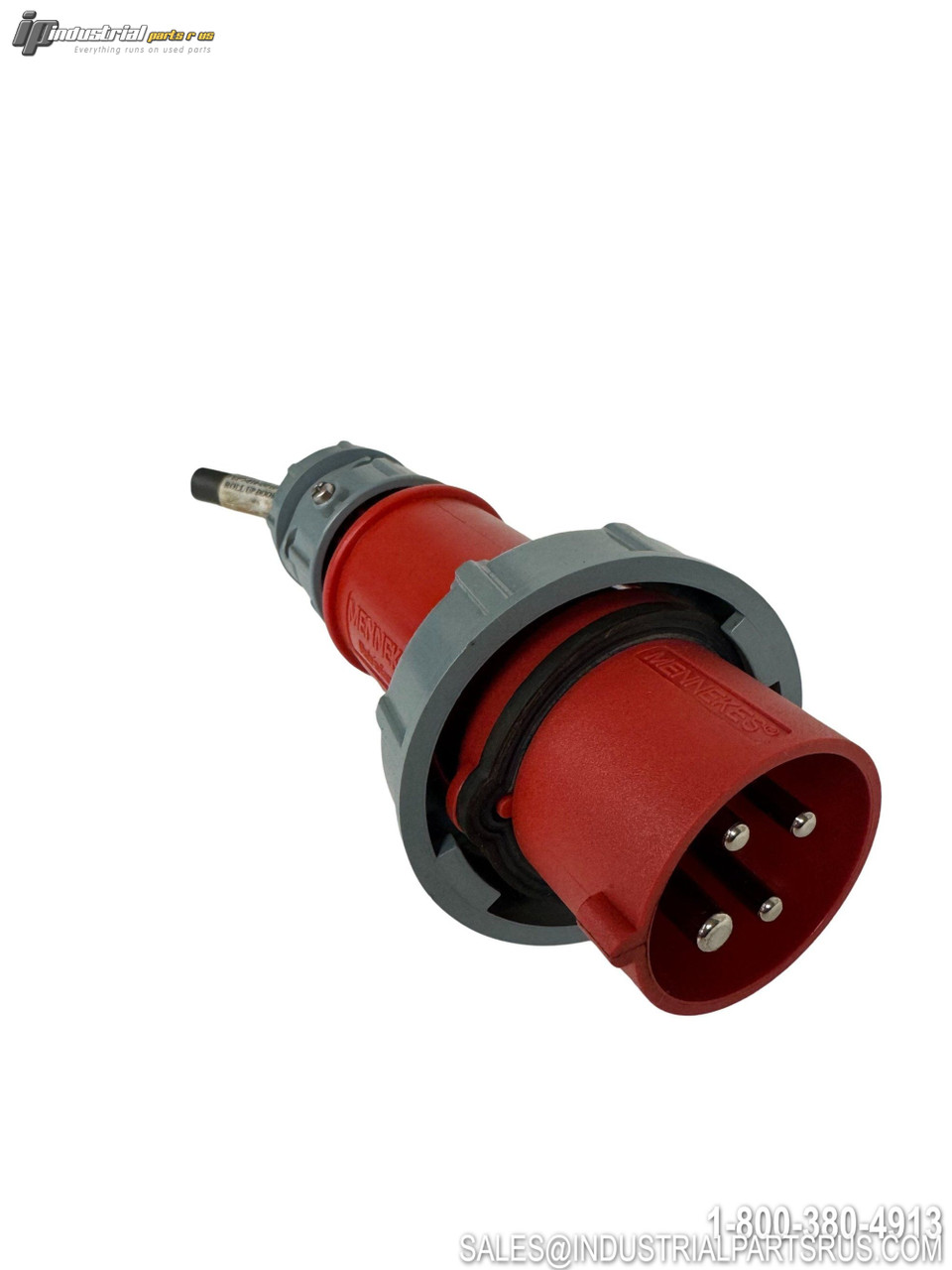

The Mennekes ME420P7W is a professional-grade pin and sleeve watertight plug designed for industrial electrical connections. This in-line plug features a non-metallic, impact and chemical resistant housing with watertight protection rated to IEC IP 67 standards. The device is part of Mennekes' 309 Series and is fully compatible with other IEC 60309-2 brands.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mennekes |
| Model/Part Number | ME420P7W |
| Series | 309 |
| Type | Pin and Sleeve Watertight Plug |
| Current Rating | 20A |
| Voltage | 480VAC |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Wire Size | 12-14 AWG |
| Terminal Type | Screw Terminal |
| Color | Red |
| Ground Position | 7h Clock Position |
| Enclosure Type | NEMA 4X |
| IP Rating | IP 67 |
| Housing Material | Non-metallic |
| Construction | Watertight |
| Phase | 3 Phase |
| Standard HP Rating | 5 |
| Compatibility | 420C7W Connector, 420R7W Receptacle |
| Standards | UL 1682, UL 1686, CSA C22.2 No. 182.1, IEC 60309-1, IEC 60309-2 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Mennekes
Enclosure Type NEMA 4X
Part Number ME 420P7W
Shelf K-66
Model ME 420P7W
MPN ME 420P7W
Type Pin and Sleeve Watertight Plug
