Product Description

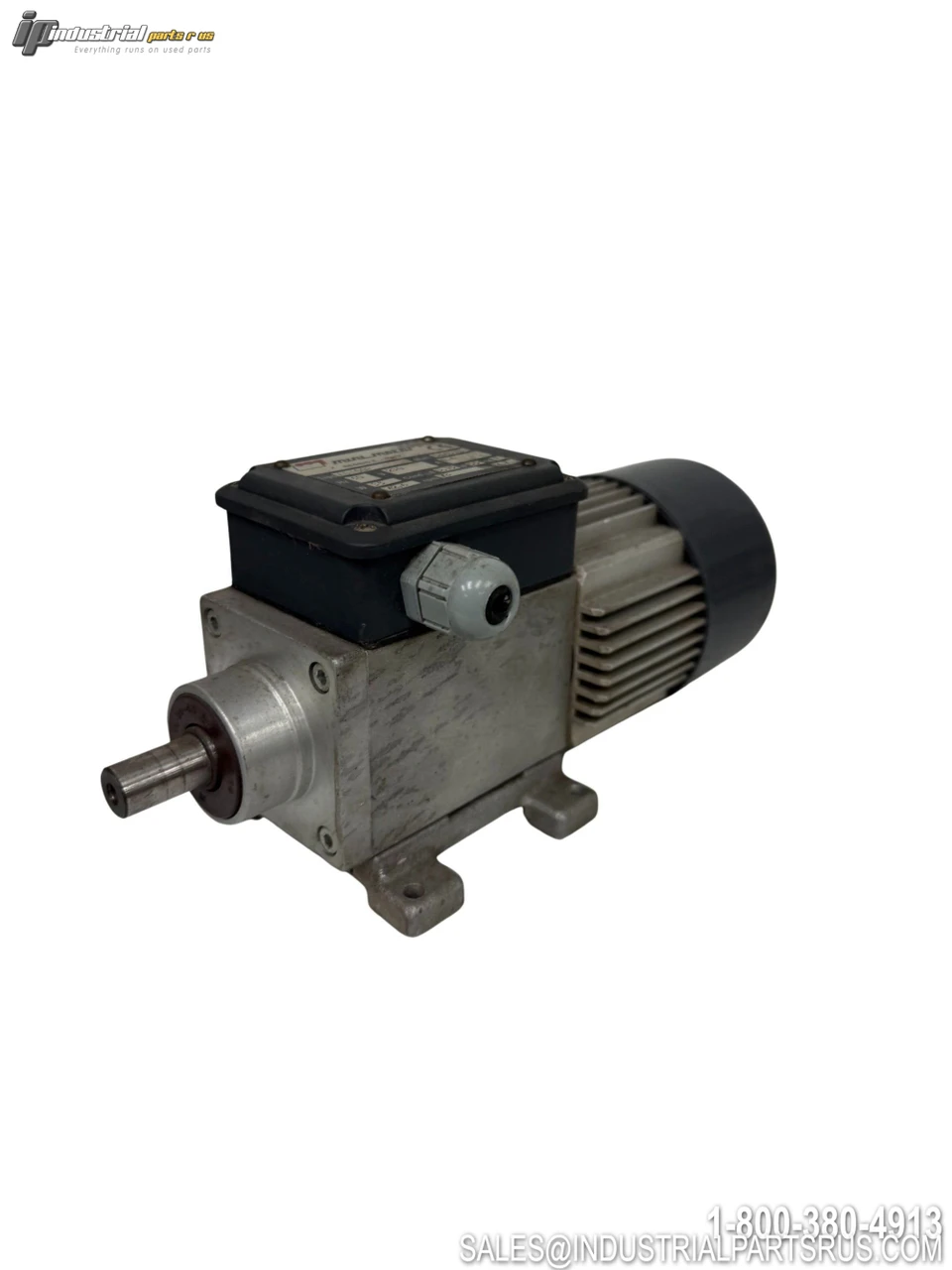

The Mini Motor AC 100P is a single-phase asynchronous coaxial geared motor with gear pairs, manufactured in Italy by Mini Motor S.r.l. It features a totally enclosed motor with external ventilation, a die-cast aluminium gear unit housing with case-hardened gear pairs, and is designed for applications such as label and packaging machines, conveyors, and pharmaceutical and medical machinery. The AC series offers up to 15 selectable gear ratios and is available in B3 foot or B5 flange mounting configurations. The motor is reversible and includes a built-in thermal cutout for overload protection. 10.9mm Shaft Diameter
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mini Motor |
| Model / Part Number | AC 100P |
| Product Type | Coaxial AC Gearmotor (Gear Pairs) |
| Voltage | 230V AC |
| Power Rating (Watts) | 35W |
| Frequency | 60 Hz |
| Full Load Amps | 0.41 A |
| Phase | Single Phase |
| Output RPM | 78 RPM |
| Output Torque | 4.7 Nm |
| Rated Torque (Series Max) | 5 Nm |
| Gear Ratio (I) | 42.6 |
| Available Gear Ratios | 15 ratios, 7.4 to 441.9 |
| Capacitor (Cond. UF) | 3.15 µF |
| Insulation Class | Class F (Max 311°F / 155°C) |
| Enclosure / IP Rating | IP55 (IP65 per OEM spec sheet) |
| Motor Type | Asynchronous, Totally Enclosed, External Ventilation |
| Thermal Safety Cutout | Yes (single phase model) |
| Gear Unit Material | Die-cast aluminium |
| Gear Type | Coaxial / Inline, Case-hardened Gear Pairs |
| Bearing Type | Roller Bearings |
| Lubrication | Long-life oil |
| Sealing | Special high-temperature rubber sealing rings |
| Shaft Diameter | 10.5mm |
| Mounting Type | B3 (Foot) or B5 (Flange) |
| Optional Brake | 230V AC (ACKA) or 24V DC (ACKB) |
| Standards / Compliance | CEI EN 60529 |
| Made In | Italy |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.41 A
Manufacturer Mini Motor
Shaft Diameter 0.36 in (9 mm)
Enclosure Type TENV (Totally Enclosed Non-Ventilated)
Part Number AC 100P
Shelf G-7
Model AC 100P
MPN AC 100P
Type Gearmotor
