Product Description

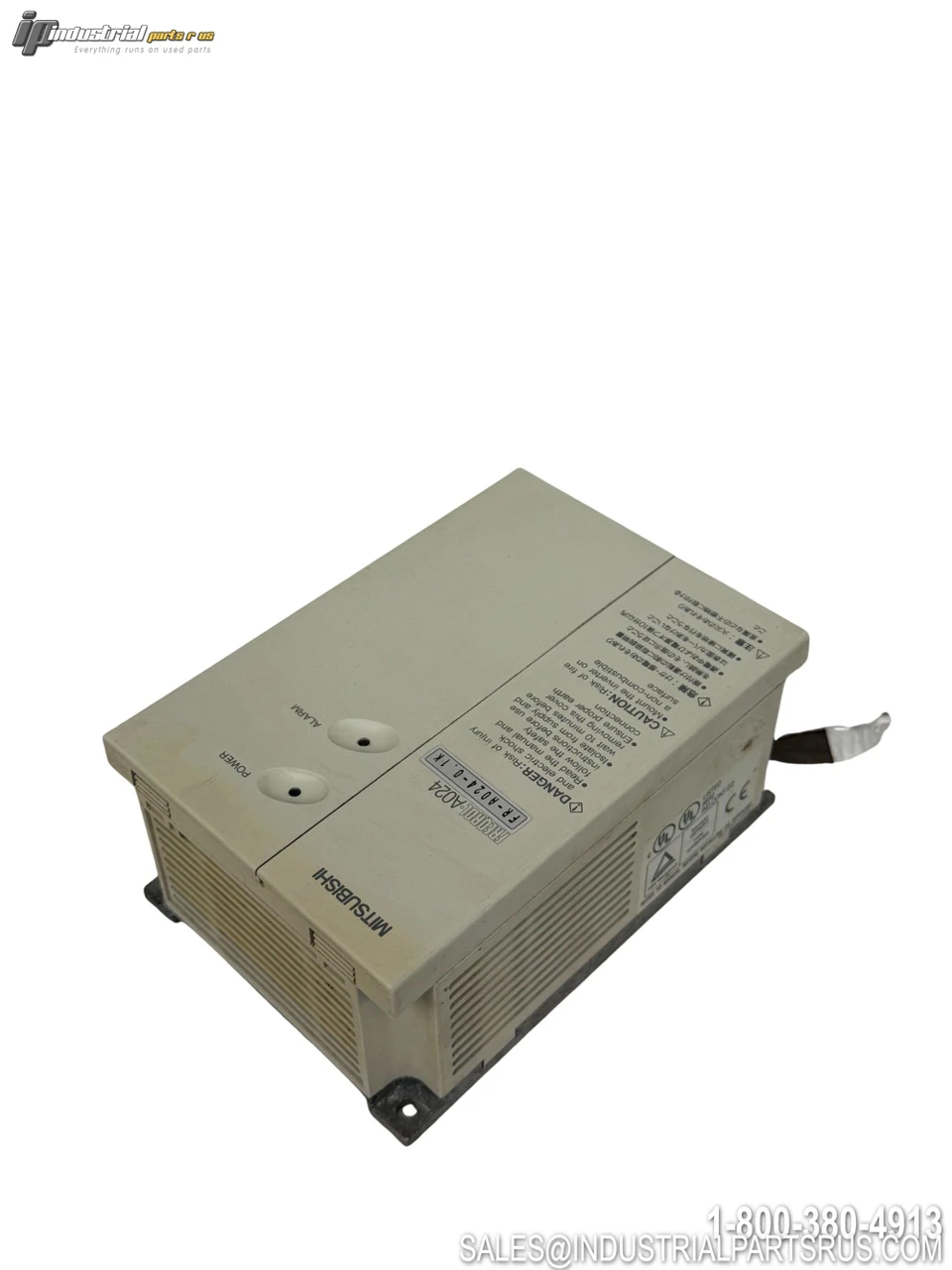

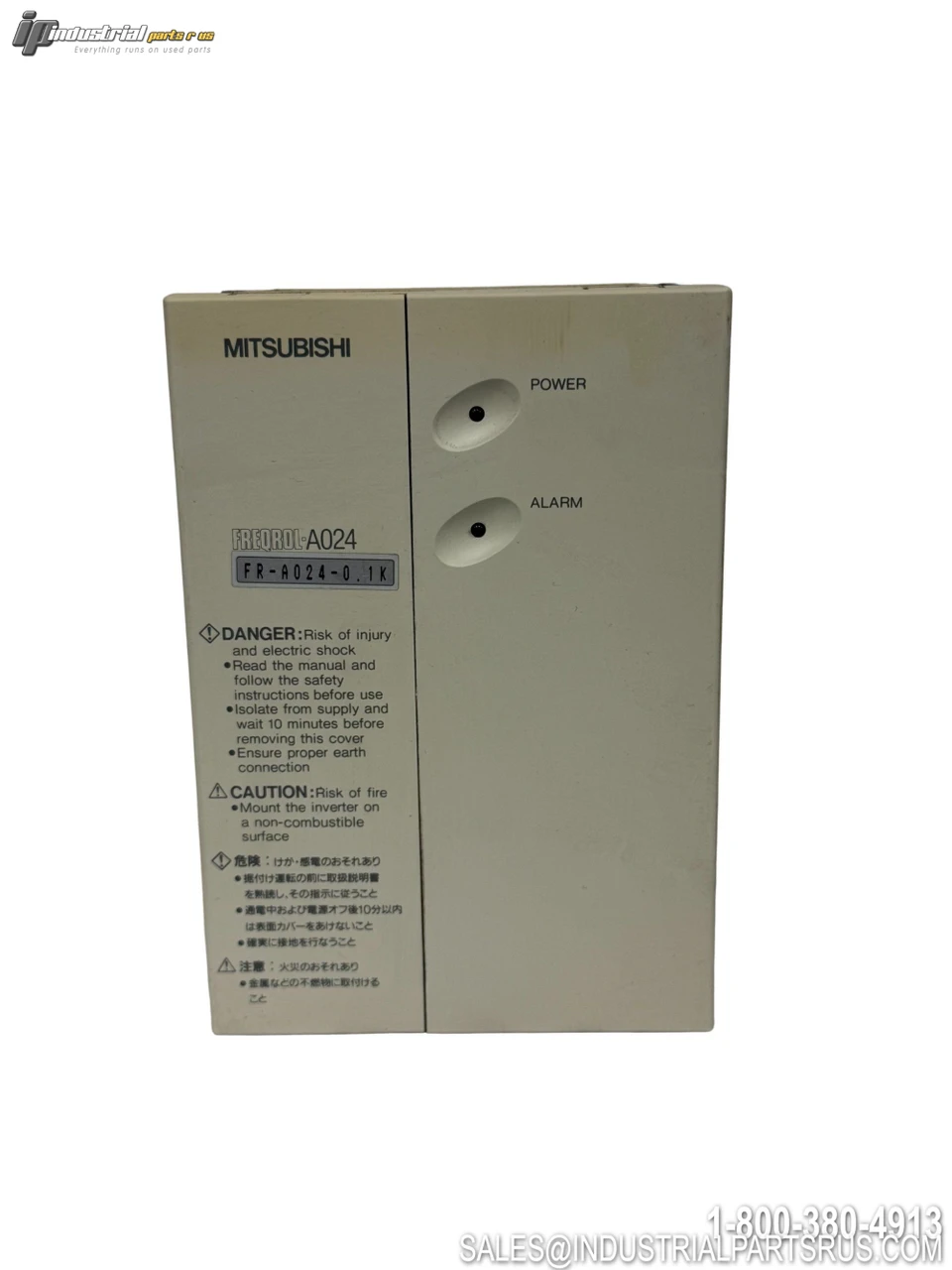

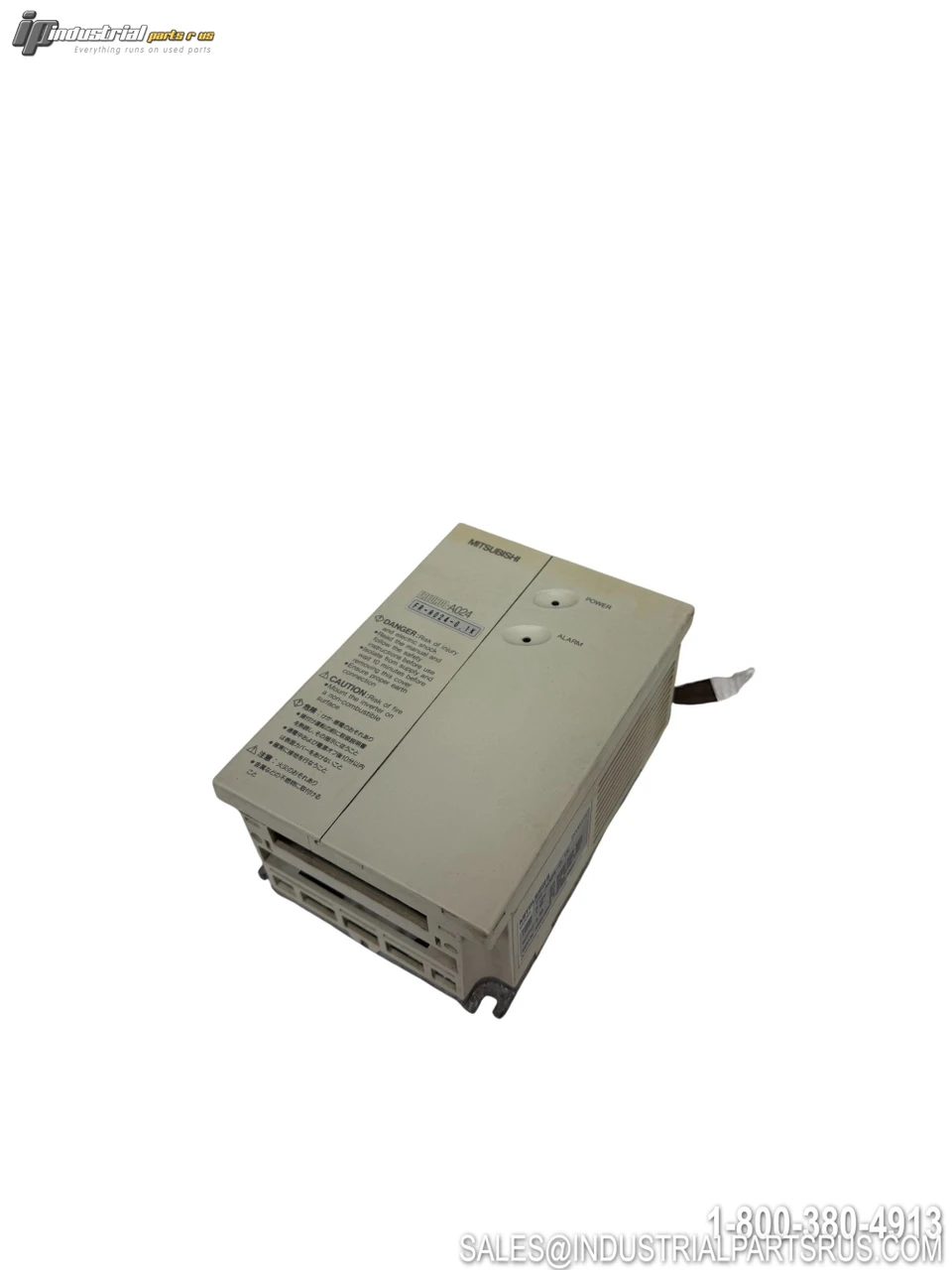

The Mitsubishi FREQROL FR-A024-0.1K is a compact general-purpose Variable Frequency Drive (VFD/inverter) from Mitsubishi Electric's A024 series, designed to provide precise speed and torque control for three-phase AC motors. Rated at 0.1 kW (approximately 1/8 HP), this unit accepts 200–230V three-phase input and delivers a rated output current of 0.8A with an IP20 enclosure for industrial use. The FR-A024 series features magnetic flux vector control, IGBT-based Intelligent Power Module (IPM) technology for low acoustic noise, and a selectable stall prevention (tripless) function for reliable operation in demanding applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric |
| Model / Part Number | FR-A024-0.1K |
| Series | FREQROL A024 |
| Product Type | VFD / Inverter |
| Rated Power Output | 0.1 kW (0.125 HP / 1/8 HP) |
| Input Voltage | 200–230 VAC, 3-Phase |
| Output Voltage | 200–230 VAC, 3-Phase |
| Input Current (Rated) | 1.5 A |
| Output Current (Rated) | 0.8 A |
| Number of Phases | 3-Phase |
| Input Frequency | 50 Hz / 60 Hz |
| Input Voltage Tolerance | 180V – 253V (±10% nominal) |
| Input Frequency Tolerance | ±5% |
| Overload Rating | 150% for 60 seconds; 200% for 0.5 seconds |
| Control Method | Magnetic Flux Vector Control (V/F + Vector) |
| Starting Torque | 200–300% (at low speed, vector mode) |
| Switching Device | IGBT (Intelligent Power Module - IPM) |
| Enclosure Type | IP20 |
| Cooling Method | Self-Cooling (Natural Convection) |
| Terminal Screw Size | M3.5 |
| Voltage Class | 200V Class |
| Suitable Applications | Conveyors, Pumps, Fans, Machine Tools |
| Product Status | Discontinued (2008) — Legacy Product |
| Suggested Replacement | Mitsubishi FR-E800 Series |
