Product Description

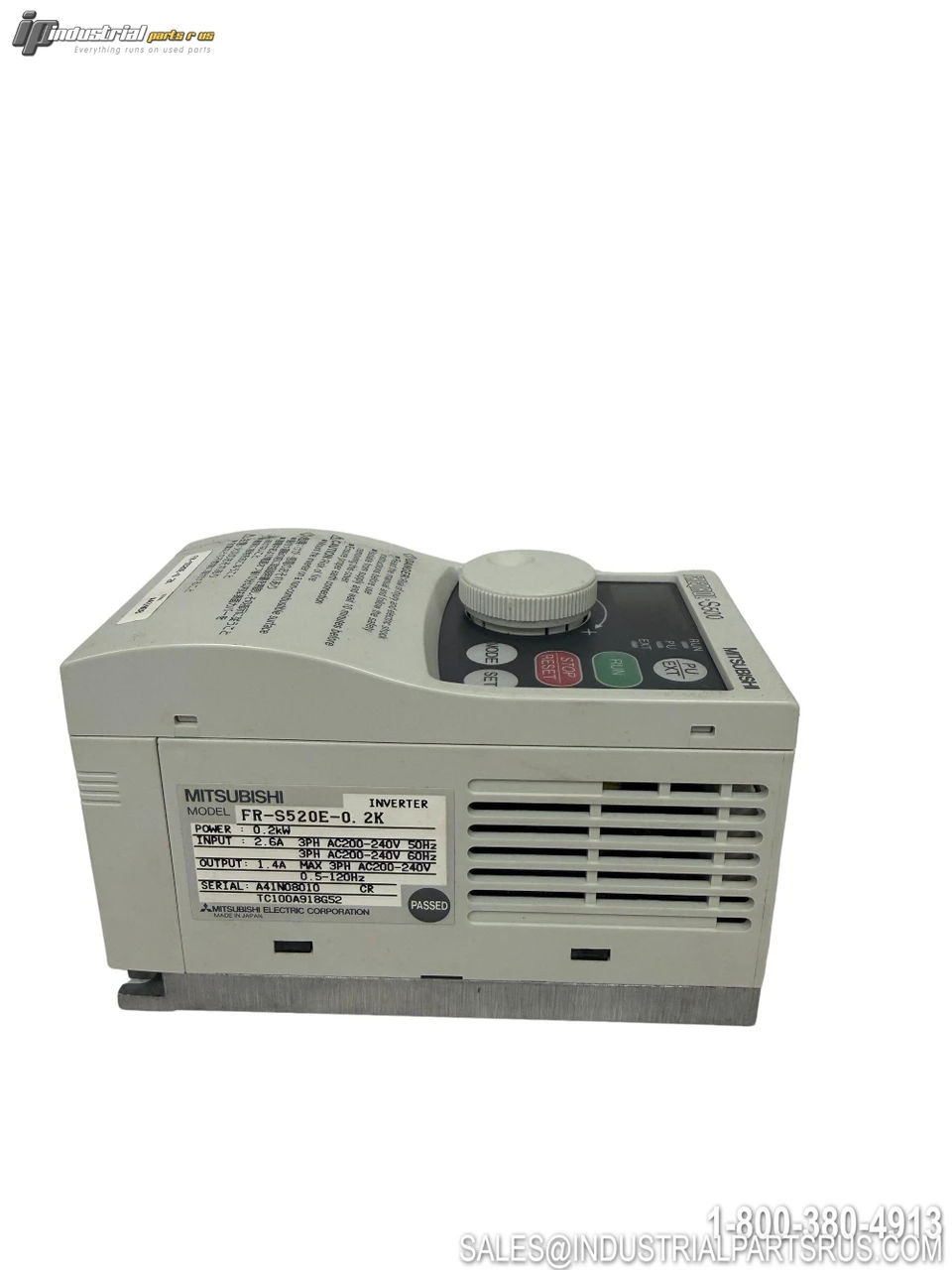

The Mitsubishi FR-S520E-0.2K is a compact transistorized inverter (Variable Frequency Drive) from the FREQROL FR-S500E Series, designed for precise variable-speed control of three-phase AC induction motors in industrial applications. It accepts a 3-phase 200–230 VAC, 50/60 Hz input and delivers a fully variable 3-phase output from 0.5 to 120 Hz, making it well suited for conveyors, fans, pumps, and general-purpose machinery. The unit features solid-state electronic thermal overload relay protection and is housed in an IP20 rated enclosure for panel or cabinet mounting.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric (FREQROL) |
| Model / Part Number | FR-S520E-0.2K |
| Series | FR-S500E (S500E) |
| Product Type | Variable Frequency Drive (VFD) / Transistorized Inverter |
| Rated Power | 0.2 kW (0.25 HP) |
| Input Voltage | 200–230 VAC (3-Phase) |
| Input Frequency | 50 / 60 Hz |
| Input Current | 2.6 A |
| Input Phase | 3-Phase |
| Output Voltage | 200–230 VAC (3-Phase) |
| Output Frequency Range | 0.5–120 Hz |
| Rated Output Current | 1.4 A |
| Output Phase | 3-Phase |
| Overload Current Rating | 150% for 60s; 200% for 0.5s (inverse time characteristics) |
| Enclosure Rating | IP20 |
| Torque Type | Constant Torque (CT) |
| Motor Overload Protection | Solid-state electronic thermal relay (Pr. 9) |
| Brake Resistor | Not applicable (no brake resistor at 0.2K size) |
| UL Listing | UL 508C / CSA C22.2 No.14 (for use in enclosure) |
| Mounting Type | Panel / Enclosure Mount |
| Origin | Made in Japan |
| Status | Obsolete / Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Mitsubishi
Enclosure Type IP20
Part Number FR-S520E-0.2K
Shelf E-19
Input Voltage 200-230V
Model FR-S520E-0.2K
MPN FR-S520E-0.2K
Type VFD
