Product Description

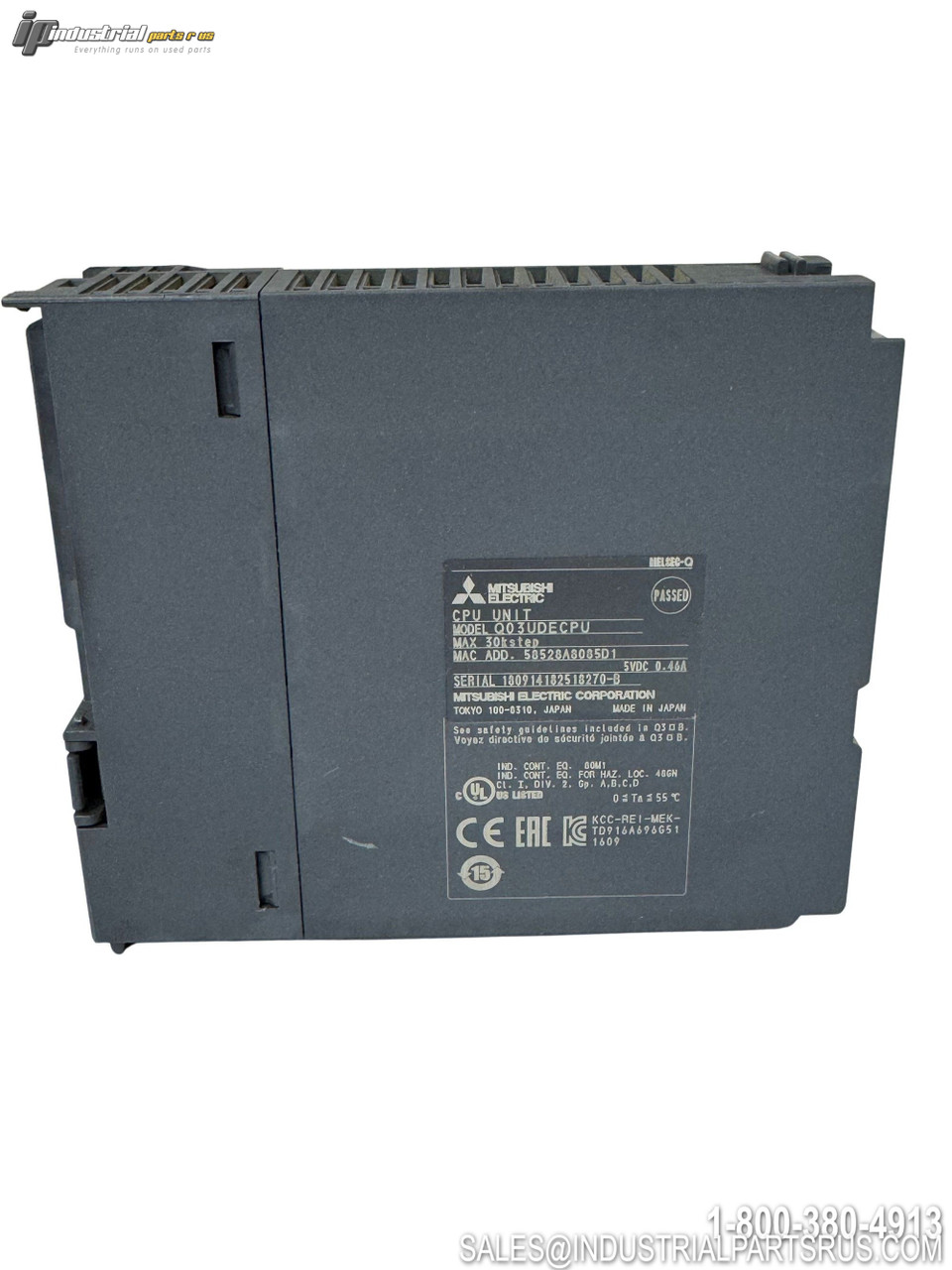

The Mitsubishi Q03UDECPU is a high-performance CPU module for the MELSEC-Q Series programmable logic controller system. This universal model QCPU features 30K steps program capacity with 120KB program memory and supports up to 4096 local I/O points with 8192 total system points. The unit includes built-in USB and Ethernet connectivity for programming and network communication.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | Q03UDECPU |
| Series | MELSEC-Q |
| Type | Universal Model QCPU |
| Program Memory | 30K Steps / 120KB |
| Local I/O Points | 4096 |
| Total I/O Points | 8192 |
| Cycle Time LD | 20 ns |
| Cycle Time MOV | 40 ns |
| USB Ports | 1 |
| Ethernet Port | 1 (10/100 Mbit RJ45) |
| Supply Voltage | 5VDC (from Q-series power supply) |
| Current Consumption | 0.33A |
| Mounting Type | Backplane/Rack |
| Battery Backup | Yes (Q6BAT) |
| Dimensions | 98 x 27.4 x 89.3 mm |
| Weight | 0.2 kg |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.33A
Manufacturer Mitsubishi
Part Number Q03UDE
Controller Platform Q-Series
Shelf K-71
Model Q03UDE
MPN Q03UDE
Type PLC Processor
