Product Description

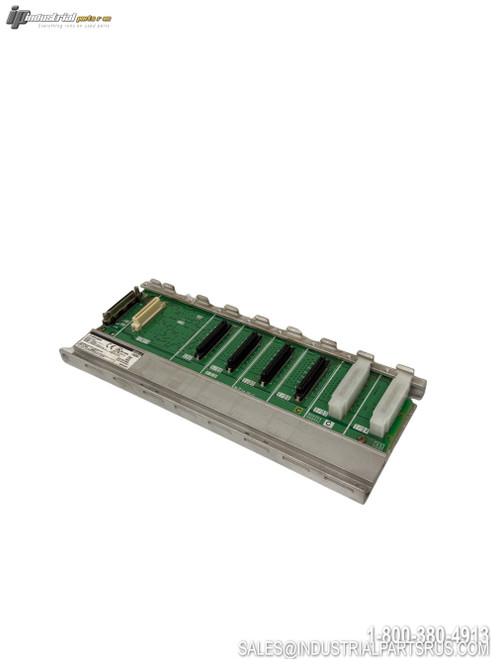

The Mitsubishi Q35B is a 5-slot main base unit for the MELSEC-Q Series PLC system designed to house the power supply module, CPU, and up to 3 additional I/O or communication modules. This modular platform provides reliable industrial automation control with both DIN rail and panel mounting options, making it ideal for space-constrained applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | Q35B |
| Series | MELSEC-Q |
| Product Type | PLC Base Unit |
| Slots (Total) | 5 |
| Power Supply Slots | 1 |
| CPU Slots | 1 |
| I/O Module Slots | 3 |
| Length | 245mm |
| Height | 98mm |
| Depth | 44.1mm |
| Weight | 0.25kg (from spec sheet) / 0.4kg (approx) |
| Mounting Type | DIN Rail / Panel Mount |
| Operating Temperature | +55°C Maximum |
| Certifications | CE, UL/cUL, EAC, UKCA, ABS, BV, DNV GL, LR, RINA |
| Compatible Power Supplies | Q61P-A1, Q61P-A2, Q63P |
| Compatible Use | MELSEC Q Series CPU, I/O, Communication Modules |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686246
Manufacturer Mitsubishi
Part Number Q35B
Controller Platform MELSEC-Q
Shelf K-25
Model Q35B
MPN Q35B
Type PLC
