Product Description

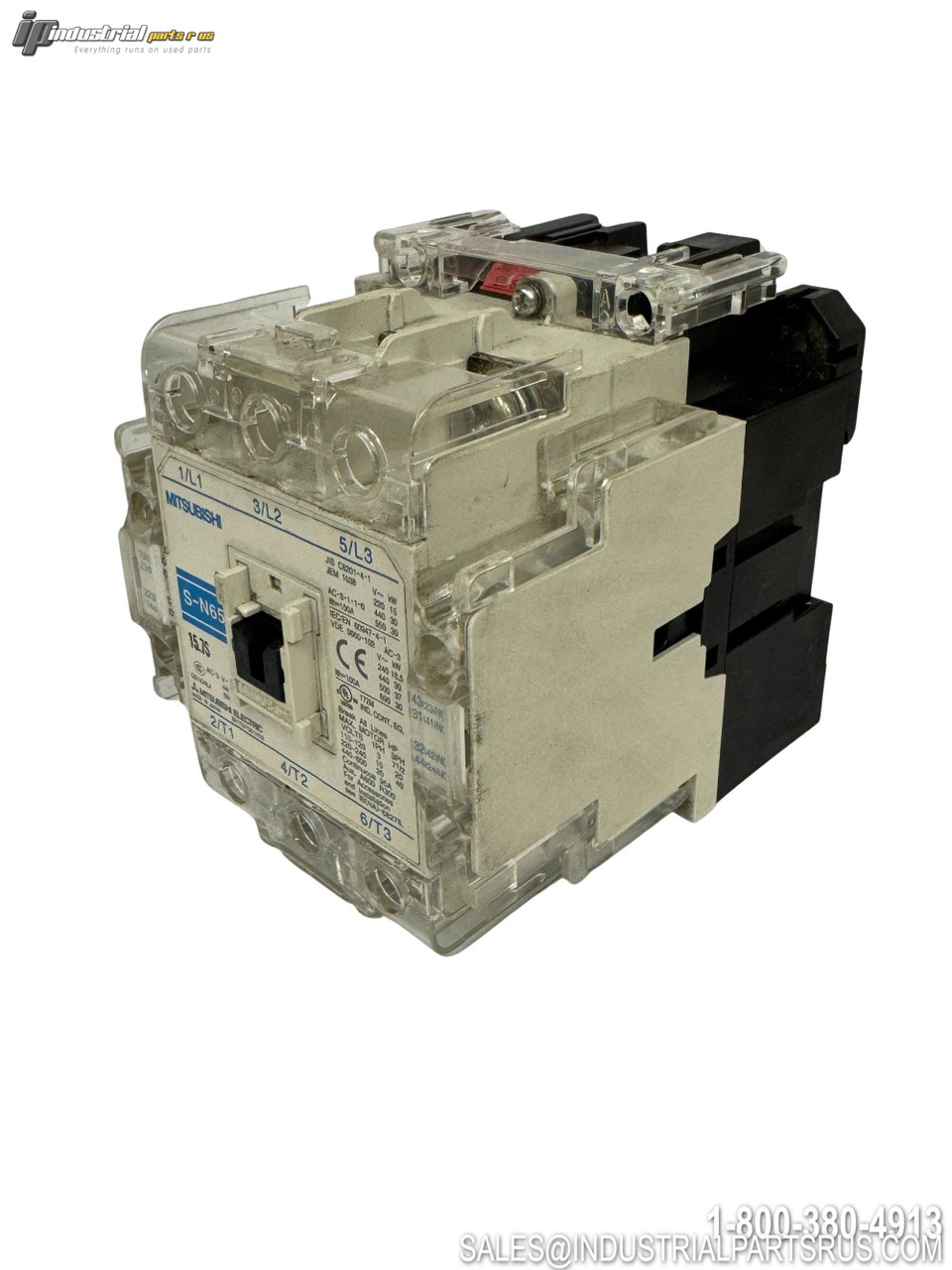

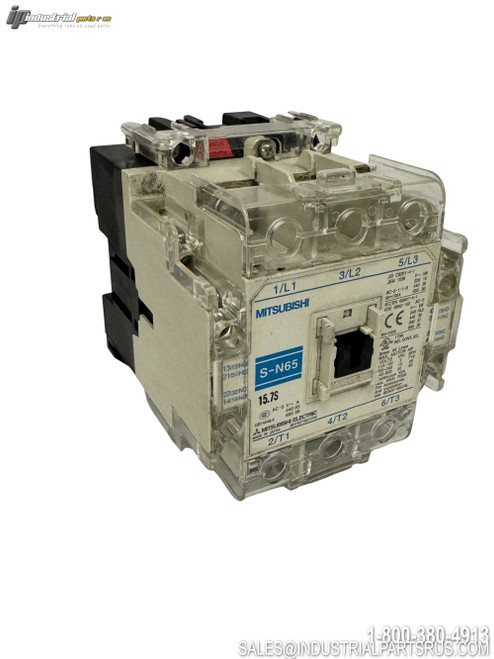

The Mitsubishi S-N65 is a 3-pole magnetic contactor from the MS-N series designed for motor control and switching applications. This unit features a 65A rated current capacity and includes built-in surge absorber functionality for reliable operation in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi |
| Model/Part Number | S-N65 |
| Product Series | MS-N Series |
| Type | Magnetic Contactor |
| Poles | 3 (3P) |
| Rated Current (AC-3) | 65A |
| Rated Current (AC-1) | 100A |
| UL Continuous Current Rating | 95A |
| Rated Power (440V AC-3 IEC) | 30kW |
| Rated Power (480V 3-Phase UL) | 40HP |
| Rated Operating Voltage (Ue) | 690V |
| Auxiliary Contacts | 2NO + 2NC |
| Connection Type | Screw-clamp |
| Mounting | DIN Rail / Surface Mount |
| Surge Absorber | Built-in |
| Coil Voltage | See Label |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style DIN Rail/Surface Mount
Current Rating 65 A
Material Thermoplastic
Full Load Amps 100A
Manufacturer Mitsubishi
Part Number S-N65
Series MS-N
Shelf C-14
Model S-N65
Coil Voltage See Label
Horsepower 40 HP
MPN S-N65
Type Contactor
