Product Description

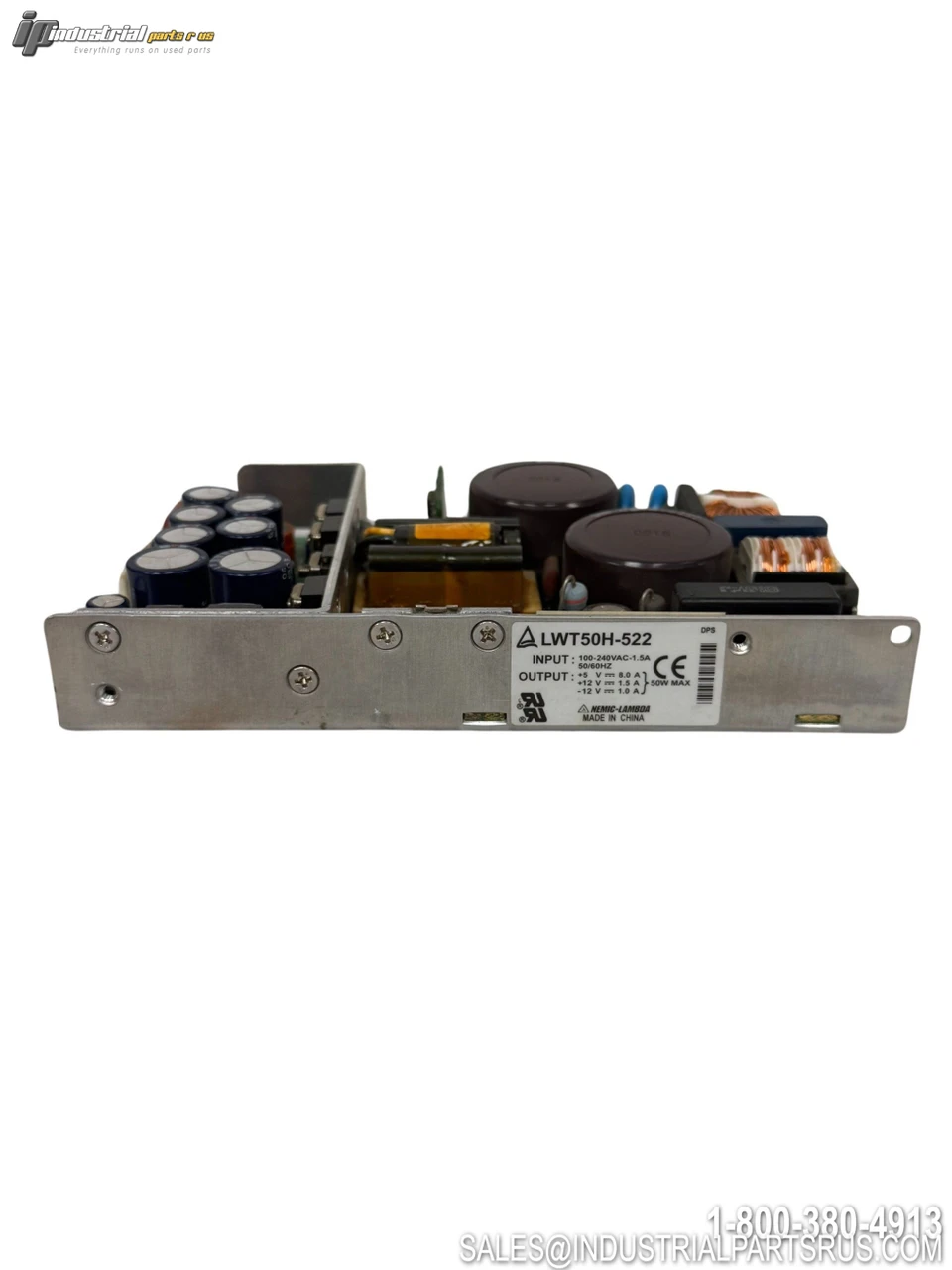

The Nemic-Lambda (TDK-Lambda) LWT50H-522 is a triple-output, open-frame AC-to-DC switching power supply rated at 50W. It accepts a universal AC input range of 85–265VAC and delivers three isolated DC outputs: +5V at up to 8A, +12V at up to 1.5A, and –12V at up to 1A. The unit features a low-profile design of approximately 1 inch (26mm) height, convection cooling, and built-in overvoltage/overcurrent protection, making it well-suited for information devices, communications equipment, and FA control systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Nemic-Lambda |
| Model / Part Number | LWT50H-522 |
| Product Type | Switching Power Supply (Open Frame) |
| Series | LWT-H / LW Series |
| AC Input Voltage Range | 85 – 265 VAC (Universal Input) |
| DC Input Voltage Range | 110 – 350 VDC |
| Input Frequency | 47 – 440 Hz |
| Input Current (Typical) | 1.2A @ 100VAC / 0.7A @ 200VAC |
| Number of Outputs | 3 (Triple Output) |
| Output 1 (V1) | +5 VDC, 1.0A min – 8.0A max |
| Output 2 (V2) | +12 VDC, 0.0A min – 1.5A max |
| Output 3 (V3) | -12 VDC, 0.0A min – 1.0A max |
| Total Output Power | 50W |
| Efficiency (Typical) | 72% |
| Cooling Method | Convection (Natural Air) |
| Operating Temperature | 0°C to +60°C (Derated above +40°C) |
| Load Derating | 100% @ 0–40°C; 80% @ 50°C; 60% @ 60°C |
| Isolation Voltage (I/O) | 3 kVAC for 1 minute |
| Isolation Voltage (Input–FG) | 2 kVAC for 1 minute |
| EMI Compliance | FCC Class B, VDE Class B |
| Protection Features | Overvoltage Protection, Overcurrent Protection |
| Package / Construction | Open Frame, Board-Mounted |
| Mounting Type | Chassis Mount |
| Profile Height | Approx. 1 inch (26mm) |
| Weight | 400g |
| Connector Type | JST (Japan Solderless Terminal) |
| Output Isolation | CH1 (5V) isolated from CH2 and CH3 (±12V) |
| Product Status | Obsolete / No Longer Manufactured |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Nemic-Lambda
Enclosure Type Open Frame
Part Number LWT50H-522
Shelf F-10
Model LWT50H-522
MPN LWT50H-522
Type Switching Power Supply
