Product Description

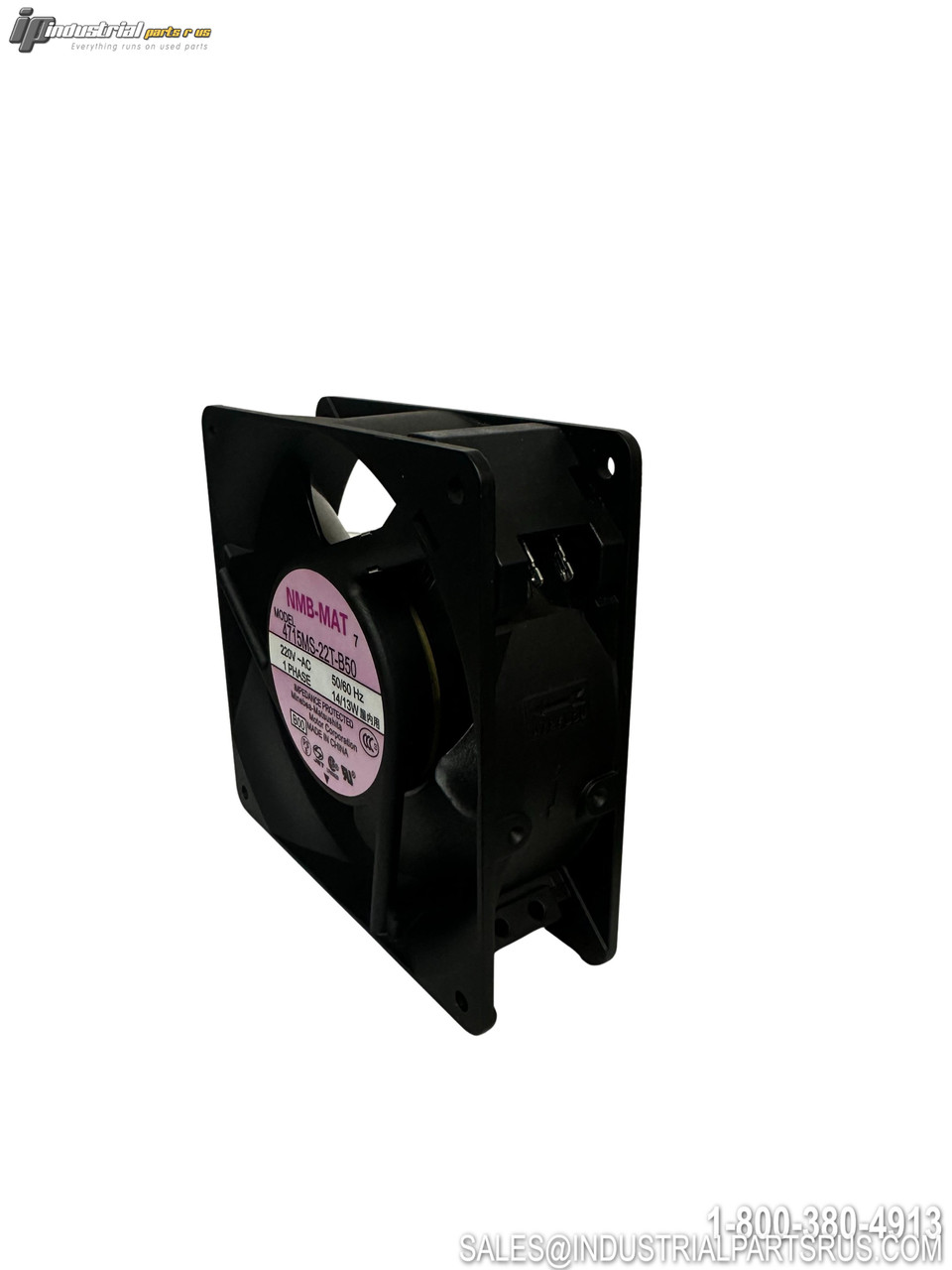

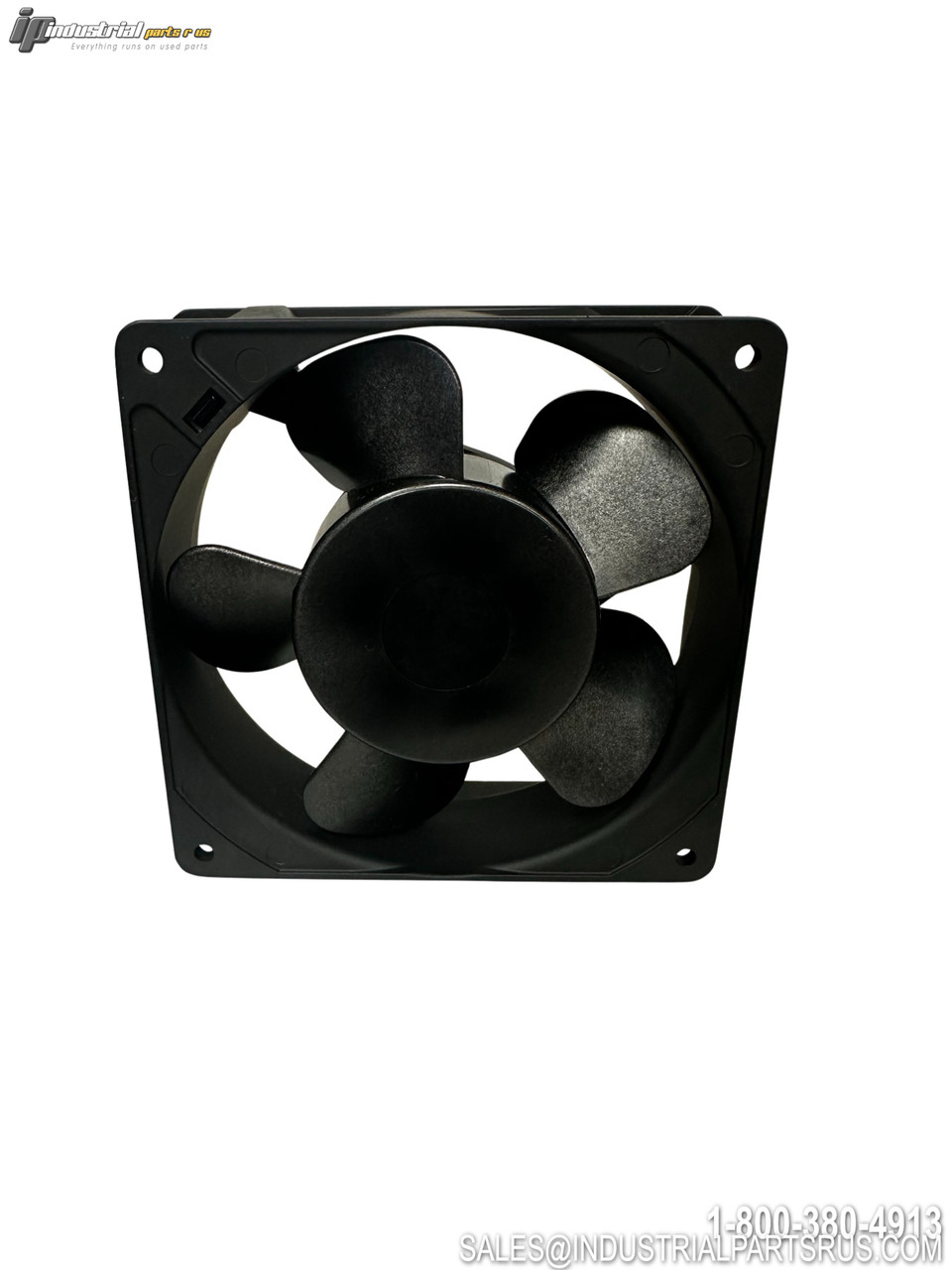

The NMB-MAT 4715MS-22T-B50 is a professional-grade AC axial cooling fan designed for industrial applications including UPS systems, server cooling, and telecommunications equipment. This square frame fan features ball bearing construction for reliable operation and optimized airflow performance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | NMB-MAT |
| Model/Part Number | 4715MS-22T-B50 |
| Supply Voltage | 220VAC |
| Frequency | 50/60Hz |
| Power Rating | 14W (50Hz) / 13W (60Hz) |
| Current Rating | 0.12A (50Hz) / 0.10A (60Hz) |
| Frame Size | 119mm x 119mm |
| Depth | 38mm |
| Speed | 2600 RPM (50Hz) / 2900 RPM (60Hz) |
| Air Flow | 88.3 CFM (50Hz) / 102.4 CFM (60Hz) |
| Static Pressure | 63.8 Pa (50Hz) / 75.6 Pa (60Hz) |
| Noise Level | 37dB (50Hz) / 41dB (60Hz) |
| Bearing Type | Ball Bearing |
| Connection Type | Terminal |
| Series | 4715MS |
| Mass | 550g |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Full Load Amps 0.12A (50Hz) / 0.10A (60Hz)
Manufacturer Nmb-Mat
Part Number 4715MS-22T-B50
Shelf J-112
Model 4715MS-22T-B50
MPN 4715MS-22T-B50
Type AC Axial Fan
