Product Description

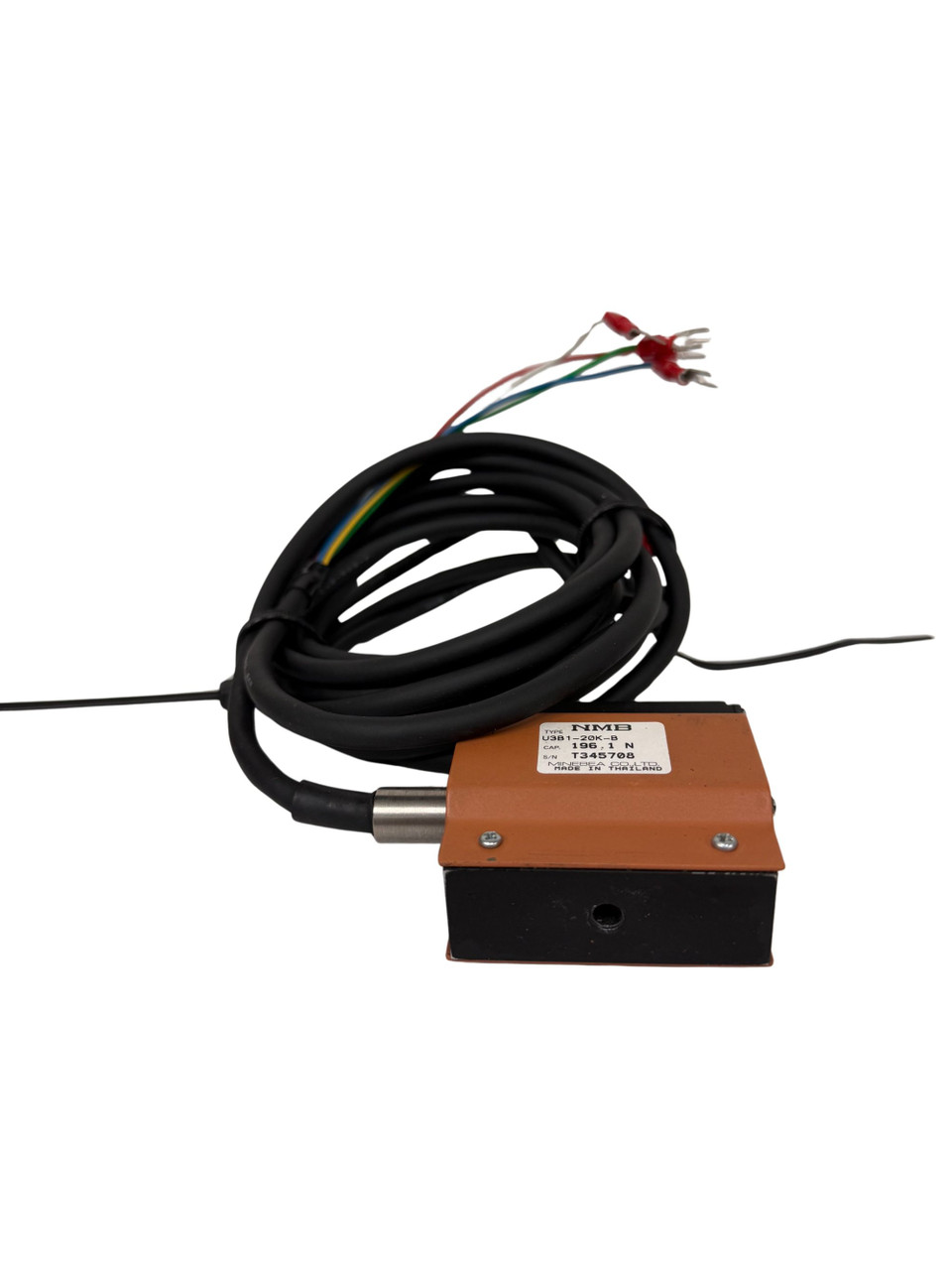

Model: U3B1-20K-B Type: Tension/compression load cell Rated capacity: 196.1 N (20 kgf) (approximately 44.1 lbf) N NMB Technologies +1 Rated output: 3.0 mV/V ±0.015 mV/V Non-linearity: 0.05% of rated output Hysteresis: 0.05% of rated output Repeatability: 0.03% of rated output Recommended excitation: ≤10 VDC Maximum excitation: 15 VDC Input resistance: 350 Ω ±3.5 Ω Output resistance: 350 Ω ±5 Ω Protection rating: IP64 Compensated temperature range: −10 °C to +70 °C Safe overload: 150% of rated capacity Ultimate overload: 200% of rated capacity N NMB Technologies +1 Mechanical characteristicsOther Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 646412796201
Country/Region of Manufacture Thailand
Shelf D-11 Tub 2
Model U3B1-20K-B
MPN U3B1-20K-B
Type PLC Processors
