Product Description

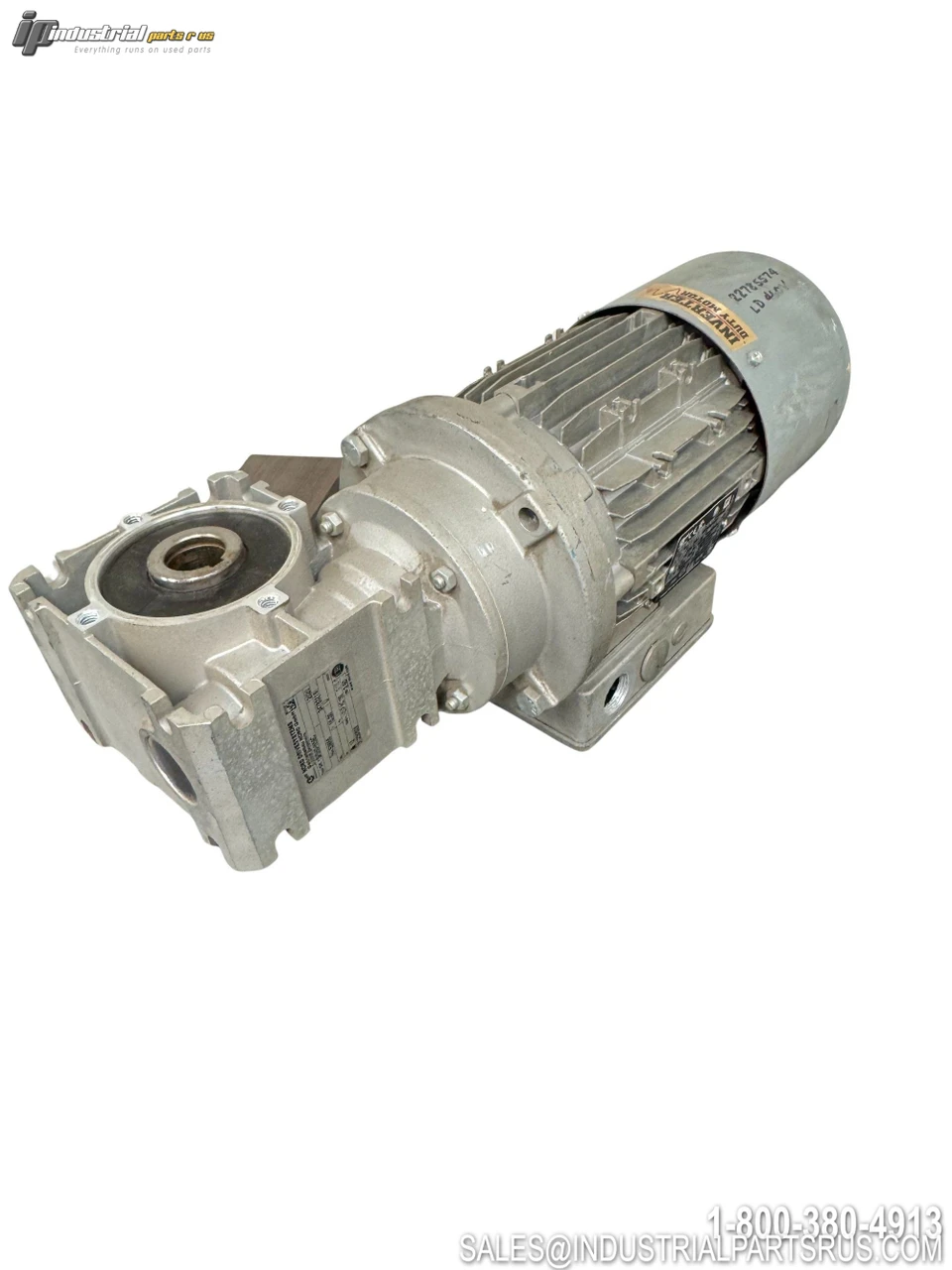

The Nord SK80L/4 CUS56CBRE20FHLRGIR is a 4-pole, three-phase inverter/vector duty AC motor built on Nord's IEC 80L frame with a NEMA 56C C-face adapter for direct coupling to standard NEMA gearboxes and drives. It is equipped with a BRE20 spring-set electromagnetic brake (20 Nm braking torque) featuring a Locking Manual Hand Release (FHL), a corrosion-protected stainless steel brake plate (RG), and a Current Sensing Relay (IR) for brake monitoring. The motor is rated 0.75 kW (1 HP) at 1650 RPM on 230/460V, 60 Hz, and carries IP55 enclosure protection with Class F insulation for demanding industrial environments. The squirrel cage induction design features a single keyed shaft (19 mm / 0.75 in diameter), NEMA Design B characteristics, and moisture-resistant varnish-dipped windings suitable for inverter and vector drive applications per NEMA MG1 Section 31.4.4.2.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Nord (Getriebebau NORD) |
| Model / Part Number | SK80L/4 CUS56CBRE20FHLRGIR |
| Motor Type | 3-Phase AC Inverter/Vector Duty Motor |
| Rated Power | 0.75 kW (1 HP) |
| Voltage | 230/460 VAC |
| Phase | 3-Phase |
| Frequency | 60 Hz |
| Base RPM | 1650 RPM |
| Number of Poles | 4 |
| Full Load Amps | 3.66 / 1.83 A (230V / 460V) |
| IEC Frame Size | 80L |
| NEMA C-Face Adapter | 56C (CUS option) |
| Enclosure Type | IP55 / TEFC (Totally Enclosed Fan Cooled) |
| Insulation Class | Class F |
| Service Factor | 1.15 |
| Duty Cycle | Continuous (S1) |
| Efficiency Class | Premium Efficient (IE3) |
| Inverter/Vector Duty | Yes – Rated per NEMA MG1 Section 31.4.4.2 |
| Brake Model | BRE20 Spring-Set Brake |
| Brake Torque | 20 Nm (15 lb-ft) maximum |
| Brake Option – FHL | Locking Manual Hand Release Lever |
| Brake Option – RG | Corrosion Protection (Stainless Steel Brake Plate) |
| Brake Option – IR | Current Sensing Relay (brake monitoring) |
| Mounting Type | C-Face (NEMA 56C) |
| Motor Connection | Star (High Voltage) / Delta (Low Voltage) |
| Ambient Temperature | 40°C maximum |
| Shaft Sealing | Lip seals on both shaft ends |
| Winding Treatment | Moisture-resistant varnish dipped |
| Manufacturer | Getriebebau NORD GmbH & Co. KG |
We warranty all items for 30 days from date of purchase.
