Product Description

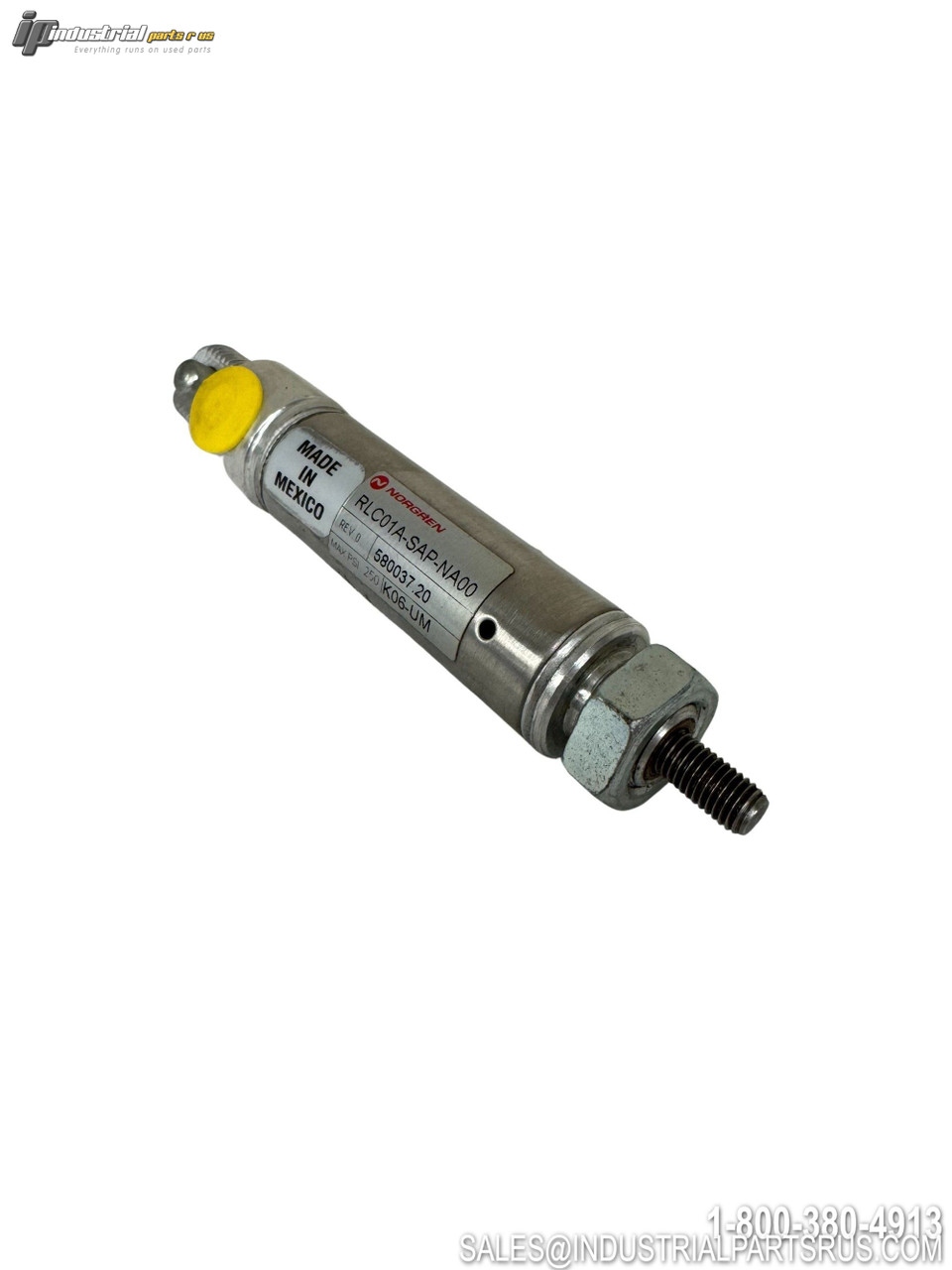

The Norgren RLC01A-SAP-NA00 is a Roundline Series pneumatic cylinder featuring a 3/4-inch bore diameter with a 1-inch stroke, single-acting spring return operation, and a pivot (clevis) mounting style. This cylinder is designed for lighter-duty, lower-force industrial automation applications where compact, reliable linear actuation is required. It operates on compressed air up to a maximum of 250 PSI and is part of Norgren's aluminum-body Roundline cylinder family, which is noted for its compact design and broad application range.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Norgren |
| Model / Part Number | RLC01A-SAP-NA00 |
| Product Type | Pneumatic Cylinder (Roundline) |
| Bore Diameter | 3/4 in (0.75 in) |
| Stroke Length | 1 in |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Mounting Type | Pivot (Clevis) Mount |
| Magnetic Piston | No (Non-Magnetic) |
| Cushioning | No Cushion (NA) |
| Maximum Pressure | 250 PSI |
| Port Size | 1/8 in NPT |
| Body Material | Aluminum |
| Seal Material | Nitrile (Standard) |
| Operating Temperature (Standard Seals) | -20°F to 200°F (-29°C to 93°C) |
| Series | RLC (Roundline, 3/4" Bore, Aluminum) |
| Manufacturer | IMI Norgren |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Norgren
Part Number RLC01A-SAP-NA00
Shelf B-7
Bore Diameter 3/4 in
Model RLC01A-SAP-NA00
MPN RLC01A-SAP-NA00
Type Pneumatic Cylinder
