Product Description

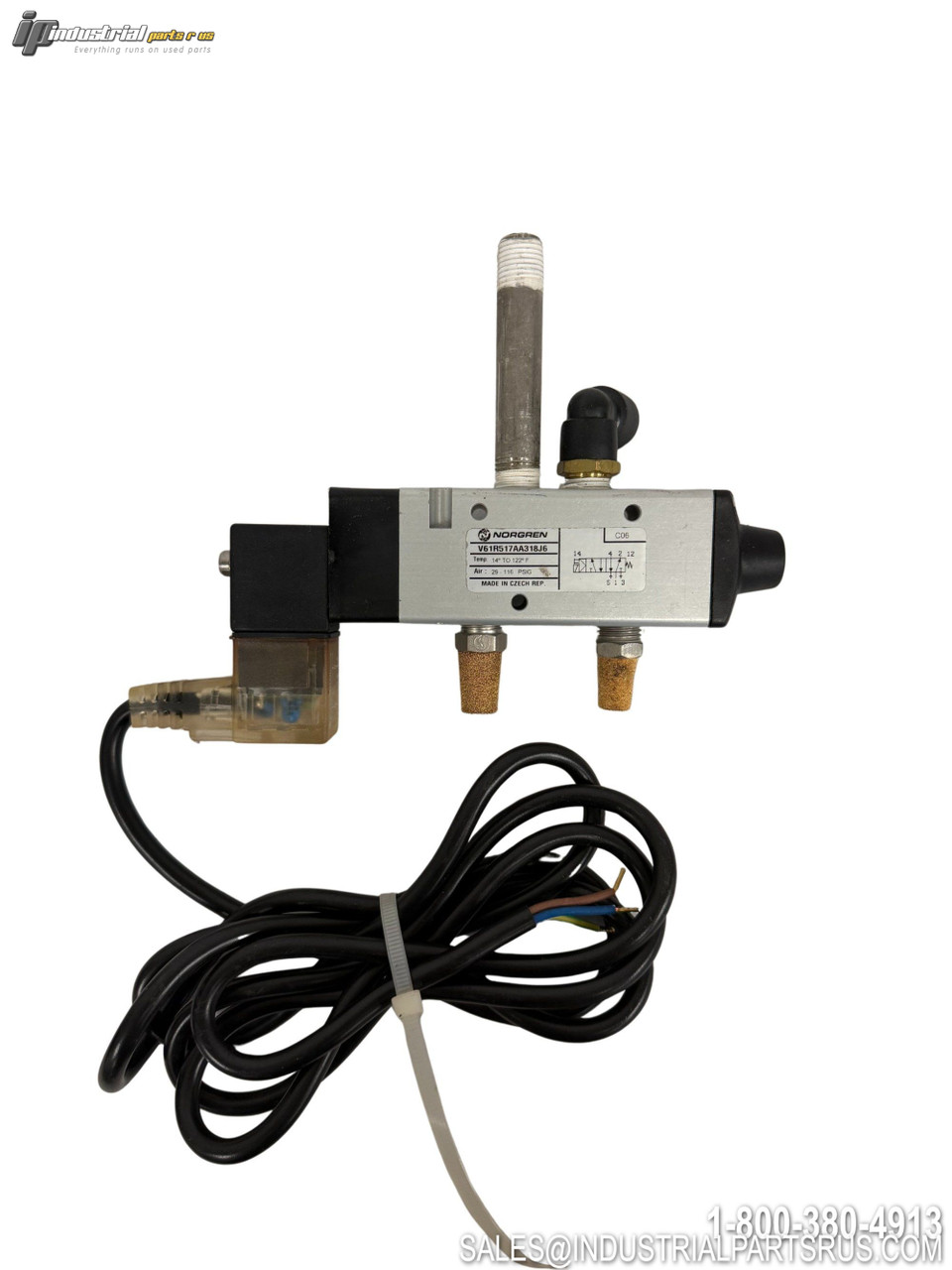

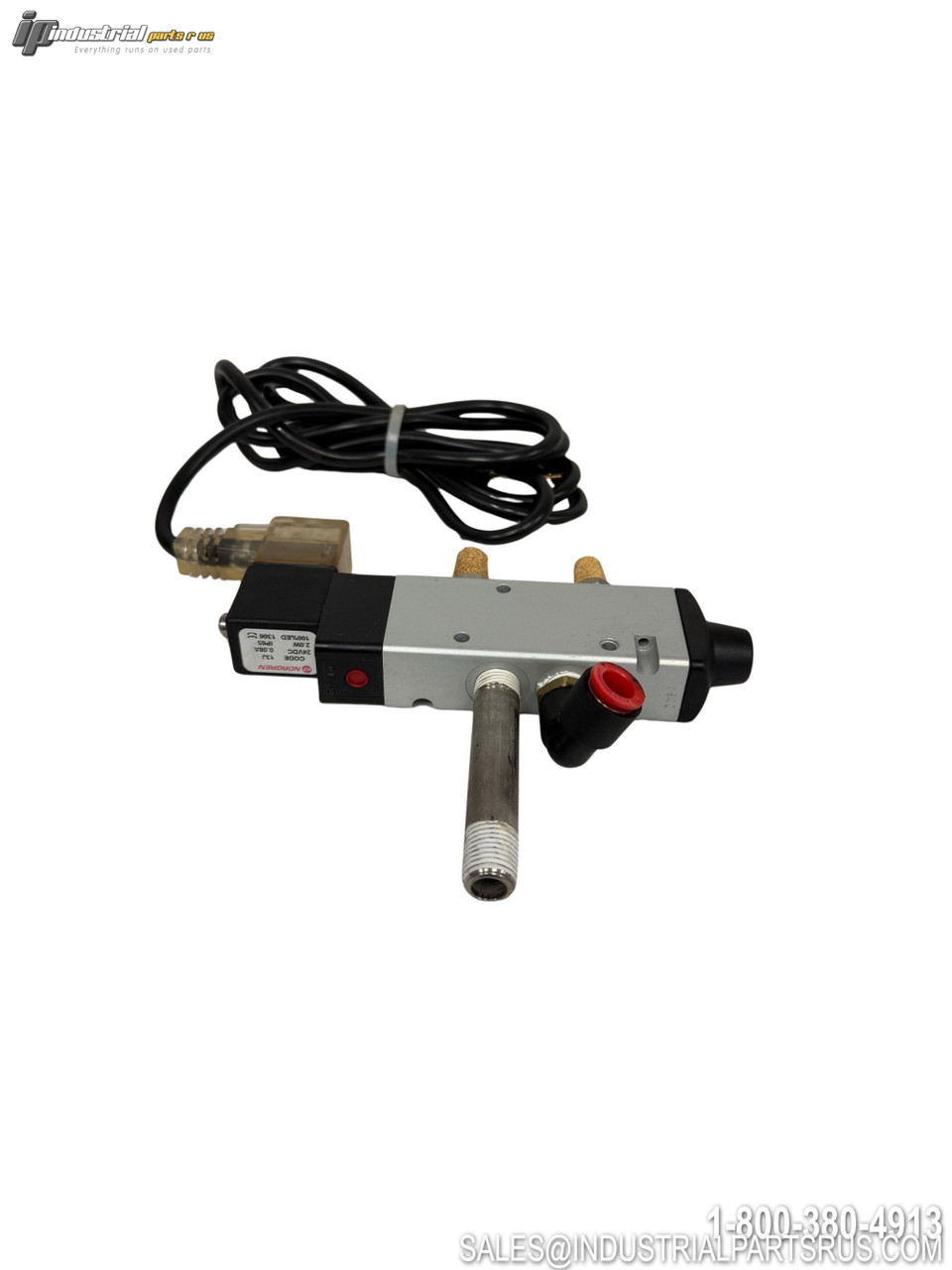

The Norgren V61R517AA318J6 is a V61 Series inline directional control spool valve featuring 5/2-way function with single solenoid pilot actuation and spring return. It is ported with 1/4" NPT female threads, operates on 120VAC, and includes a 6-foot molded cable with LED indicator light. The valve belongs to IMI Norgren's V60–V62 family of high-flow directional control valves engineered for compressed air service in industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Norgren (IMI Norgren) |
| Model / Part Number | V61R517AA318J6 |
| Series | V61 (V60–V62 Family) |
| Product Type | Solenoid Valve – Inline Directional Control |
| Valve Function | 5/2-Way (5-Port, 2-Position) |
| Actuation Type | Single Solenoid Pilot Actuated / Spring Return |
| Manual Override | Non-Locking (Push Only) |
| Coil Voltage | 120VAC |
| Frequency | 60 Hz |
| Solenoid Power Consumption | 2W (Low Power, Continuous Duty) |
| Port Size | 1/4" NPT (Female) |
| Number of Ports | 5 |
| Flow Rate (Cv) | Cv 1.32 (approx. 1300 L/min) |
| Maximum Operating Pressure | 145 PSI (10 bar) |
| Minimum Operating Pressure | -13 PSI (-0.9 bar) |
| Pilot Supply | Internal (Fixed) |
| Medium | Compressed Air (filtered to 50 micron, lubricated or non-lubricated) |
| Ambient / Media Temperature | +14°F to +122°F (-10°C to +50°C) |
| Ingress Protection | IP65 (with sealed connector plug) |
| Connector / Cable Type | 6 ft. Molded Cable with Indicator Light, 120VAC (Code 6 – Model 54934-35) |
| Connector Standard | Industrial Standard 22mm, 2-Pole + PE (EN 175301-803 / DIN 43650 Form B) |
| Solenoid Rotation | 4 x 90° Rotatable |
| Mounting Position | Optional; preferably horizontal (spring return) |
| Mounting Style | Inline (individual or manifold) |
| Body / Housing Material | Aluminum Bar Stock |
| Seal Material (Static & Dynamic) | NBR (Nitrile) |
| Spool / Spring Material | Stainless Steel |
| Screw Material | Zinc Plated |
| Weight | 2.67 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Norgren
Enclosure Type IP65
Part Number V61R517AA318J6
Shelf A-9
Model V61R517AA318J6
MPN V61R517AA318J6
Type Solenoid Valve
