Product Description

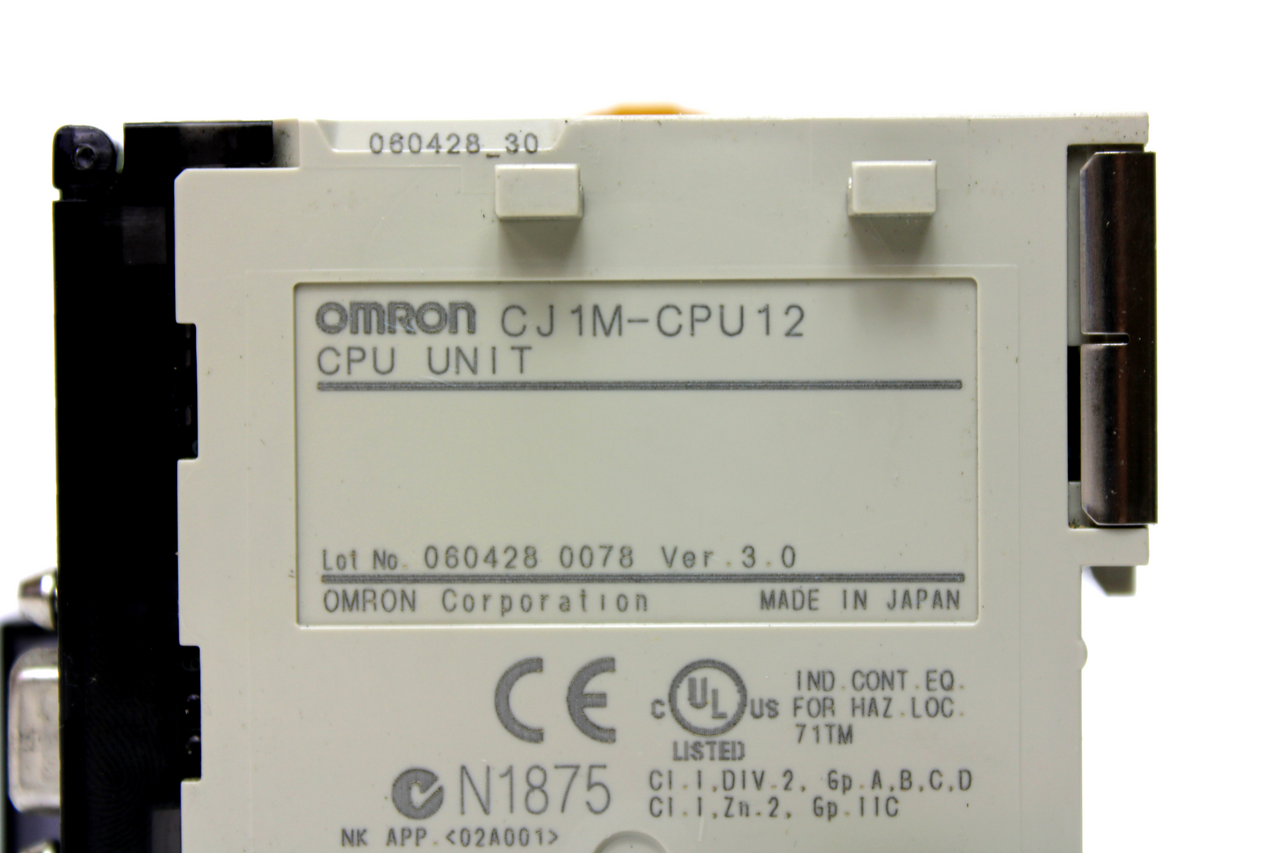

The Omron CJ1M-CPU12 is a compact PLC processor from the CJ1M series designed for flexible control applications. This CPU unit features 10K steps of user program memory capacity and supports up to 320 I/O points with modular expansion capabilities.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | CJ1M-CPU12 |
| Product Type | PLC Processor |
| Series | CJ1M |
| Maximum I/O Points | 320 |
| Program Memory Capacity | 10K steps |
| Data Memory Capacity | 32K words |
| LD Execution Time | 0.1 μs |
| Basic Instruction Execution Time | 0.10 μs min |
| Special Instruction Execution Time | 0.15 μs min |
| Overhead Time | 0.5 ms min |
| Maximum Units | 10 Units max |
| Expansion Racks | No Expansion Racks |
| Current Consumption | 0.58 A at 5V DC |
| Flash Memory | 704 KB (unit version 4 or later) |
| Communication Port | RS-232C |
| Width | 31 mm |
| Weight | 120 g |
| Programming Languages | Ladder, SFC, ST, Mnemonic |
| Interrupt Inputs | 2 |
| Maximum Subroutines | 1024 |
| Maximum Jump Numbers | 1024 |
| Function Block Definitions | 128 max |
| Function Block Instances | 256 max |
| Mounting Method | Direct connection (no backplane) |
We warranty all items for 30 days from date of purchase.
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
GTIN 646412852617
Shelf E-3 Tub 2
MPN CJ1M-CPU12
Country/Region of Manufacture Japan
Manufacturer Omron
Part Number CJ1M-CPU12
Model CJ1M-CPU12
Type CPU (Central Processing Unit)
Controller Platform Omron CJ1M
