Product Description

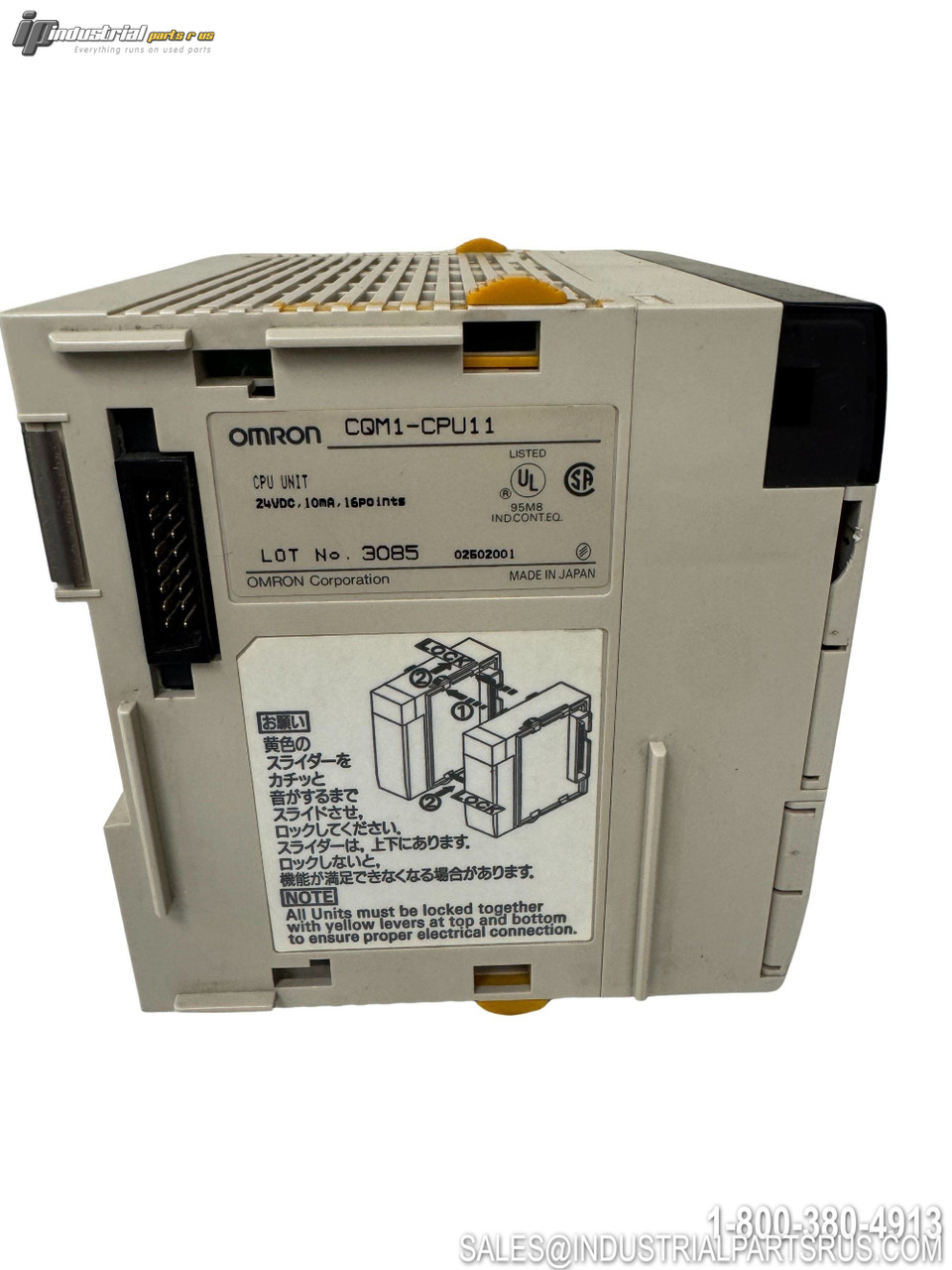

The Omron CQM1-CPU11 is the entry-level CPU unit in the Sysmac CQM1 series of compact programmable logic controllers, designed for general-purpose industrial automation and machine control. It supports up to 128 I/O points, provides 16 built-in 24 VDC input terminals, and executes basic instructions at 1.4 microseconds per instruction. Unlike other CQM1 CPU variants, the CPU11 does not include a built-in RS-232C port, communicating instead via the peripheral port for programming and Host Link connectivity.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | CQM1-CPU11 |
| Product Type | PLC CPU Unit |
| Series / Platform | Sysmac CQM1 |
| I/O Capacity (Max) | 128 Points |
| Built-In Input Points | 16 Points |
| Input Voltage | 24 VDC |
| Input Current | 10 mA (CPU supply); 6 mA per input point |
| Program Capacity | 3.2K Words |
| Data Memory (DM) Capacity | 1K Words (1,024 Words) |
| Instruction Execution Speed | 1.4 µs per basic instruction |
| Timers / Counters | 256 Timers / 256 Counters |
| RS-232C Port | None (No built-in RS-232C) |
| Communication Port | Peripheral Port (Programming Console / Host Link) |
| Communication Protocols | Host Link, Peripheral Bus |
| Mounting Type | DIN Rail / Side-locking module |
| Dimensions (W × H × D) | 72 mm × 100 mm × 90 mm |
| Terminal Type | Screw Terminals |
| Visual Indicators | LED Indicators |
| Compatible Power Supply | CQM1-PA203 / CQM1-PA206 (sold separately) |
| Programming Software | CX-Programmer (Omron) |
| Controller Platform | Sysmac CQM1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Omron
Part Number CQM1-CPU11
Controller Platform Sysmac CQM1
Shelf E-3 Tub 1
Model CQM1-CPU11
MPN CQM1-CPU11
Type PLC Processor
