Product Description

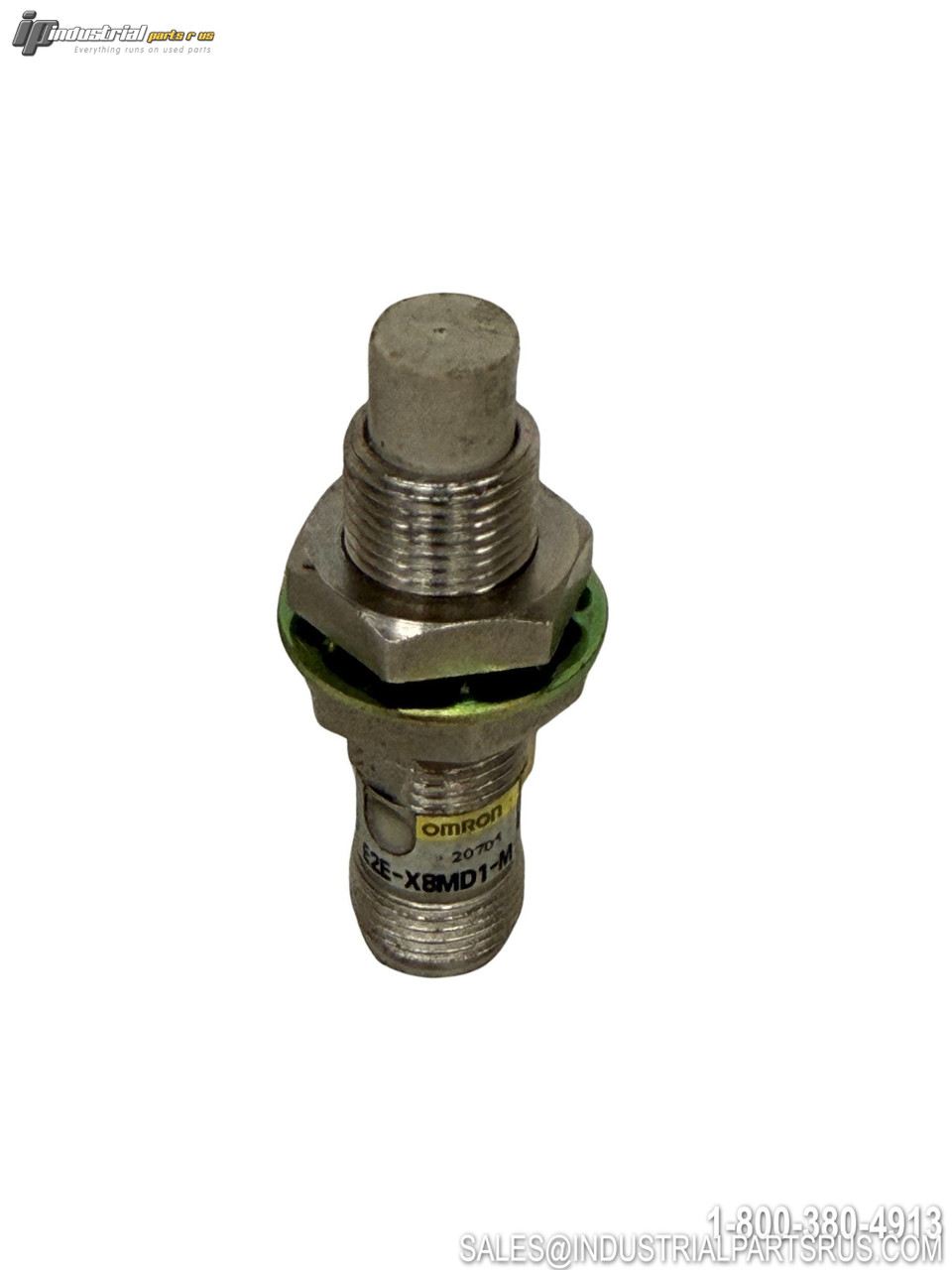

The Omron E2E-X8MD1-M1 is an inductive proximity sensor designed for reliable detection of ferrous metals in industrial applications. This unshielded sensor features an 8mm sensing range with M12 connector and operates on DC 2-wire configuration with normally open output.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | E2E-X8MD1-M1 |
| Sensor Type | Inductive Proximity Sensor |
| Series | E2E |
| Sensing Range (Nominal) | 8mm |
| Setting Distance (Actual) | 0 to 6.4mm |
| Sensing Technology | Inductive |
| Design | Unshielded / Non-embeddable |
| Output Type | DC 2-Wire, NO (Normally Open) |
| Contact Form | NO (Normally Open) |
| Supply Voltage | 10-30VDC (12-24VDC nominal) |
| Switching Frequency | 800Hz max |
| Connection Type | M12 Connector |
| Shape | M12 Threaded Cylindrical |
| Housing Diameter | 12mm |
| Thread Size | M12 x 1 |
| Housing Material | Nickel-plated Brass |
| Sensing Surface Material | Thermoplastic P.B.T. Polymer |
| IP Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Mounting Type | Non-flush / Unshielded |
| Sensible Object | Ferrous Metal |
| Load Current | 3-100mA |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Output Type NO (Normally Open)
Sensor Type Inductive Proximity Sensor
Full Load Amps 3-100mA
Manufacturer Omron
Part Number E2E-X8MD1-M1
Shelf N-5
Model E2E-X8MD1-M1
MPN E2E-X8MD1-M1
Type Inductive Proximity Sensor
