Product Description

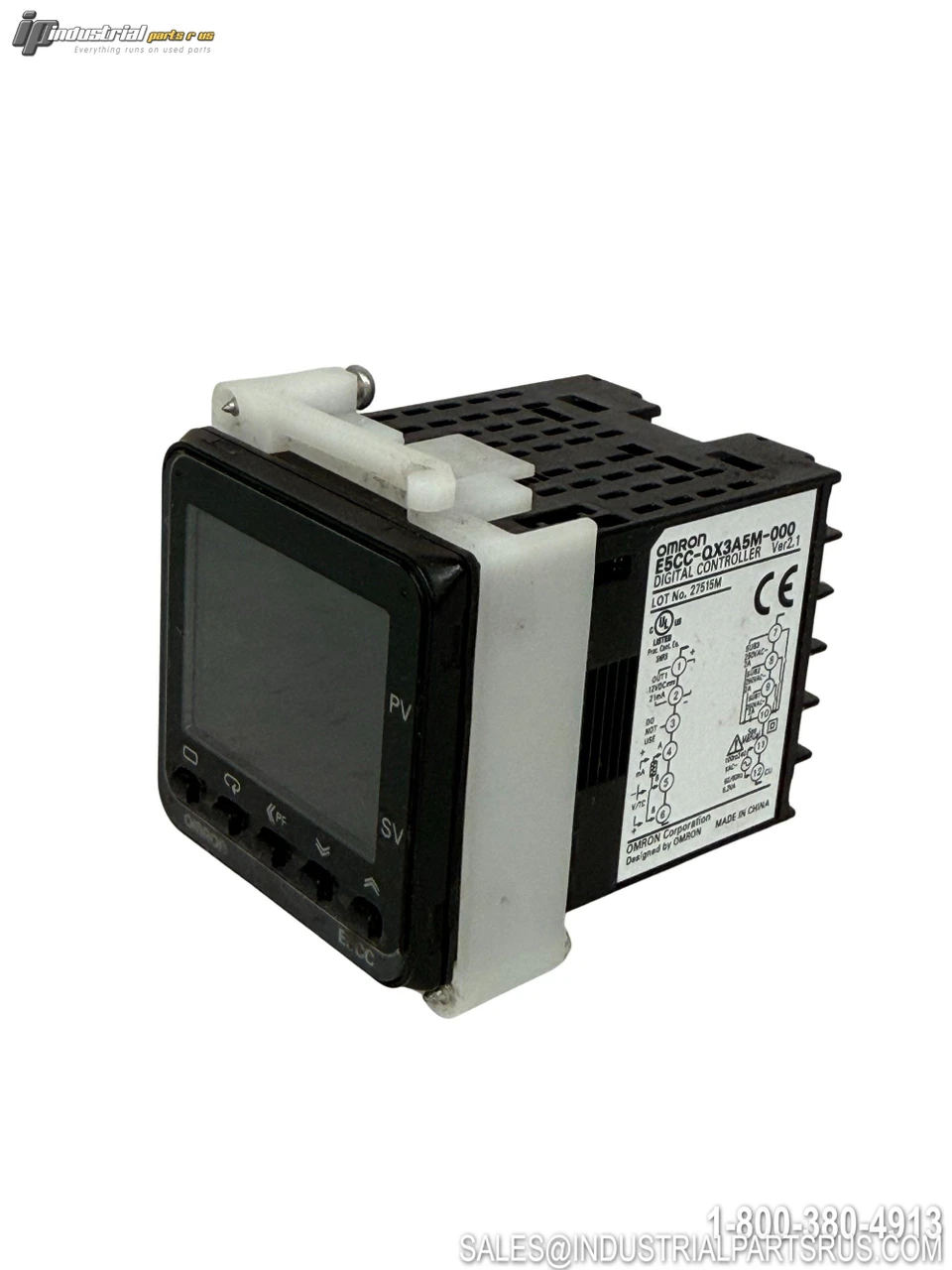

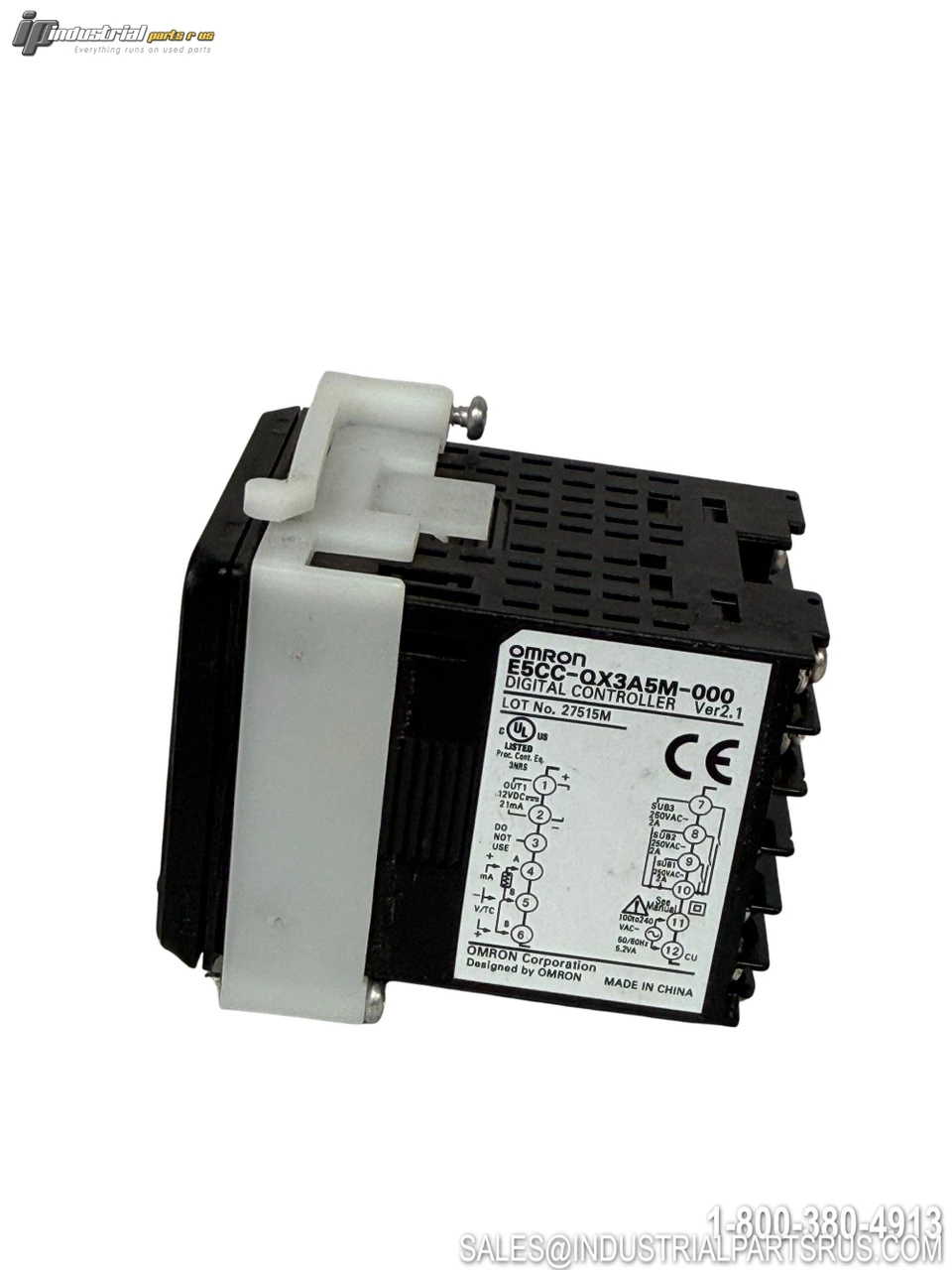

The Omron E5CC-QX3A5M-000 is a 1/16 DIN (48×48 mm) digital PID temperature controller from the E5CC series, featuring a 12 VDC pulse (SSR voltage) control output, three auxiliary relay outputs, and a universal analog input compatible with thermocouples, RTDs, and analog current/voltage signals. It offers a high-contrast white LCD display, 50 ms sampling period, and built-in timer and logic functions, making it suitable for a wide range of industrial heating and cooling applications. Configuration and monitoring can be performed via Omron's CX-Thermo software (version 4.4 or higher) using a USB bus-powered connection.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | E5CC-QX3A5M-000 |
| Product Series | E5CC |
| Product Type | Digital PID Temperature Controller |
| DIN Size | 1/16 DIN |
| Panel Cutout / Dimensions (W × H × D) | 48 × 48 × 78 mm |
| Supply Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption (AC, -000 option) | 5.2 VA max. at 100–240 VAC |
| Control Output 1 Type | 12 VDC Pulse / SSR Voltage Output (PNP) |
| Output Voltage | 12 VDC ±20% (PNP), max. load current 21 mA |
| Auxiliary Outputs | 3 × SPST-NO Relay, 250 VAC / 2 A resistive load |
| Relay Electrical Life | 100,000 operations |
| Minimum Applicable Load | 10 mA at 5 V |
| Analog Input (Universal) | 1 × universal: Thermocouple, RTD, Analog current/voltage |
| Thermocouple Input Types | K, J, T, E, L, U, N, R, S, B, W, PL-II |
| RTD Input Types | Pt100, JPt100 |
| Analog Voltage Input | 0–50 mV; 1–5 VDC; 0–5 VDC; 0–10 VDC |
| Analog Current Input | 4–20 mA; 0–20 mA |
| Input Impedance (Current) | 150 Ω max. |
| Input Impedance (Voltage) | 1 MΩ min. |
| Temperature Accuracy | ±1°C |
| Sampling Period | 50 ms |
| Control Method | 2-PID with Auto-Tuning |
| Display | 2-row × 4-digit white LCD (backlit); PV: 15.2 mm digits; SV: 7.1 mm digits |
| Mounting Style | Panel Mount (flush door mounting) |
| Terminal Type | Screw terminals with cover |
| IP Rating | IP66 (front face) |
| Operating Temperature | −10°C to +55°C |
| Communication / Software | CX-Thermo v4.4 or higher (USB bus-powered) |
| Event / Auxiliary Inputs | None (base -000 option; no event inputs) |
| Heater Burnout Detection | Not included (-000 option) |
| Timer / Logic Functions | Built-in (eliminates need for external PLC) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type 12 VDC Pulse / SSR Voltage Output (PNP)
Full Load Amps 21 mA
Manufacturer Omron
Enclosure Type IP66 (front face)
Part Number E5CC-QX3A5M-000
Shelf F-10
Model E5CC-QX3A5M-000
MPN E5CC-QX3A5M-000
Type Temperature Controller
