Product Description

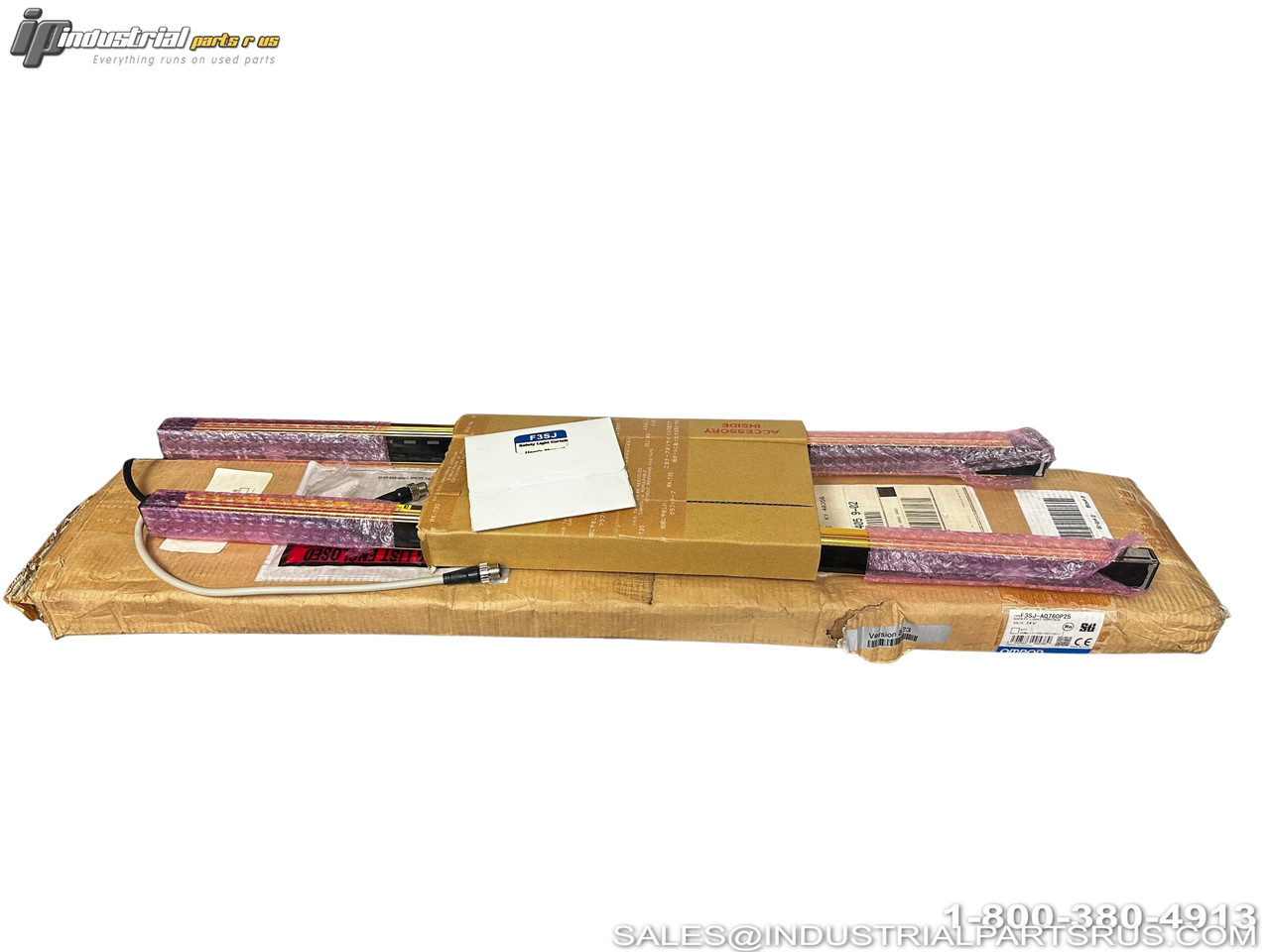

This listing includes the COMPLETE SET with both emitter and receiver units.

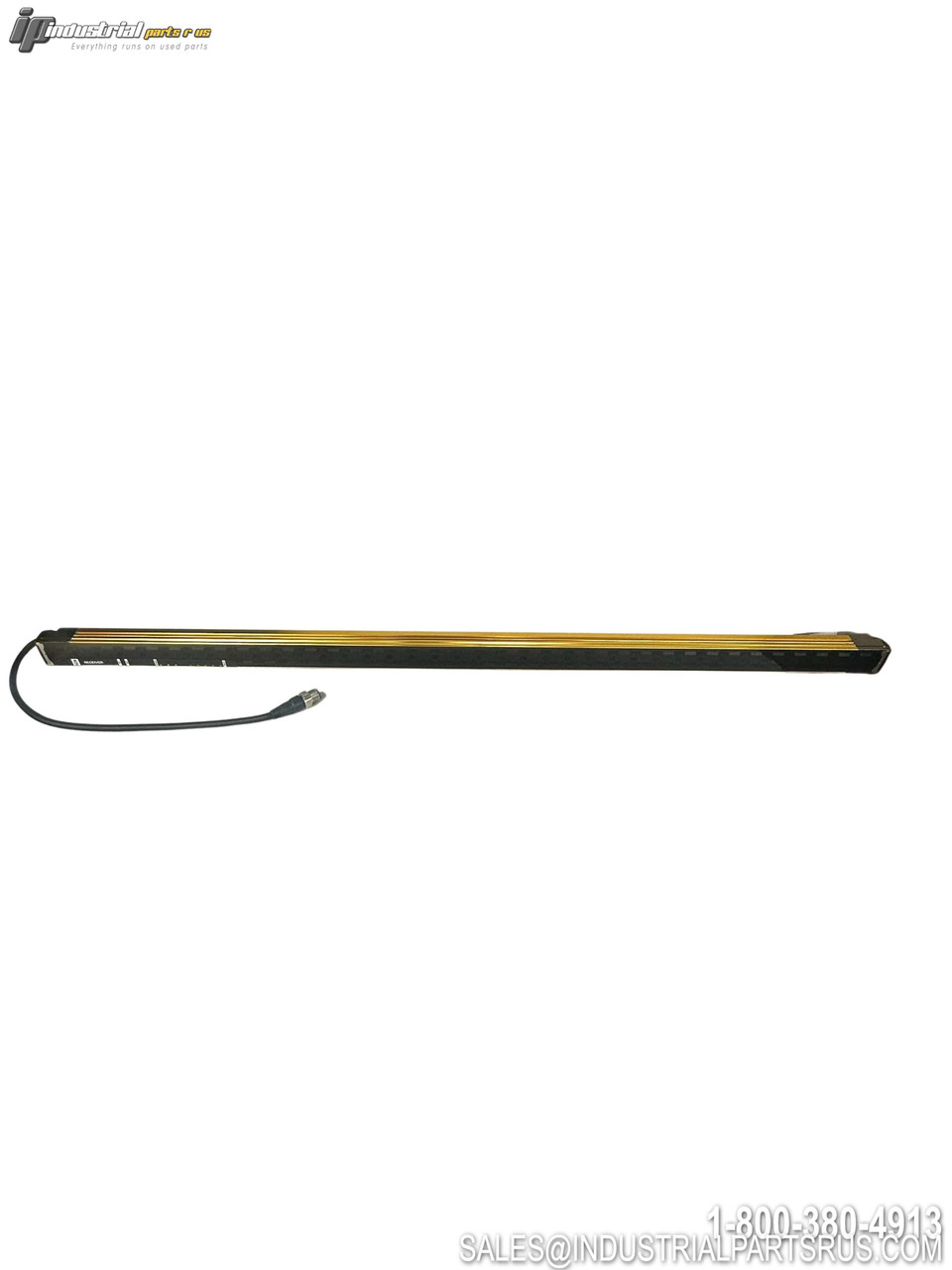

The OMRON F3SJ-A0760P25 is an Advanced Type safety light curtain designed for industrial safety applications requiring sophisticated protection features. This unit provides 760mm protective height with 38 detection beams and supports advanced functions including blanking, muting, warning zones, and series connection capabilities.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Model/Part Number | F3SJ-A0760P25 |
| Series | F3SJ-A Advanced |
| Product Type | Safety Light Curtain |
| Protective Height | 760mm |
| Number of Beams | 38 |
| Beam Gap | 25mm |
| Detection Capability | 25mm diameter opaque objects |
| Operating Range | 0.2m to 9m |
| Response Time (ON to OFF) | 12ms |
| Response Time (OFF to ON) | 48ms |
| Supply Voltage | 24VDC ±20% |
| Output Type | PNP (Safety outputs: 2 x 300mA max) |
| Light Source | Infrared LED 870nm |
| Safety Rating | SIL3, Type 4 ESPE, PLe, Category 4 |
| Connection Type | Pre-wired with M12 connectors |
| Weight | Approximately 280g (emitter + receiver) |
| Operating Temperature | -10°C to +55°C |
| IP Rating | IP65 |
| Application | Hand protection |
| Series Connection | Up to 4 sets |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Safety Light Curtain
Manufacturer Omron
Part Number F3SJ-A0760P25-L / F3SJ-A0760P25-D
Shelf J-85
Model F3SJ-A0760P25
MPN F3SJ-A0760P25-L / F3SJ-A0760P25-D
Type Light Curtain
