Product Description
This listing includes the COMPLETE SET with both emitter and receiver units.

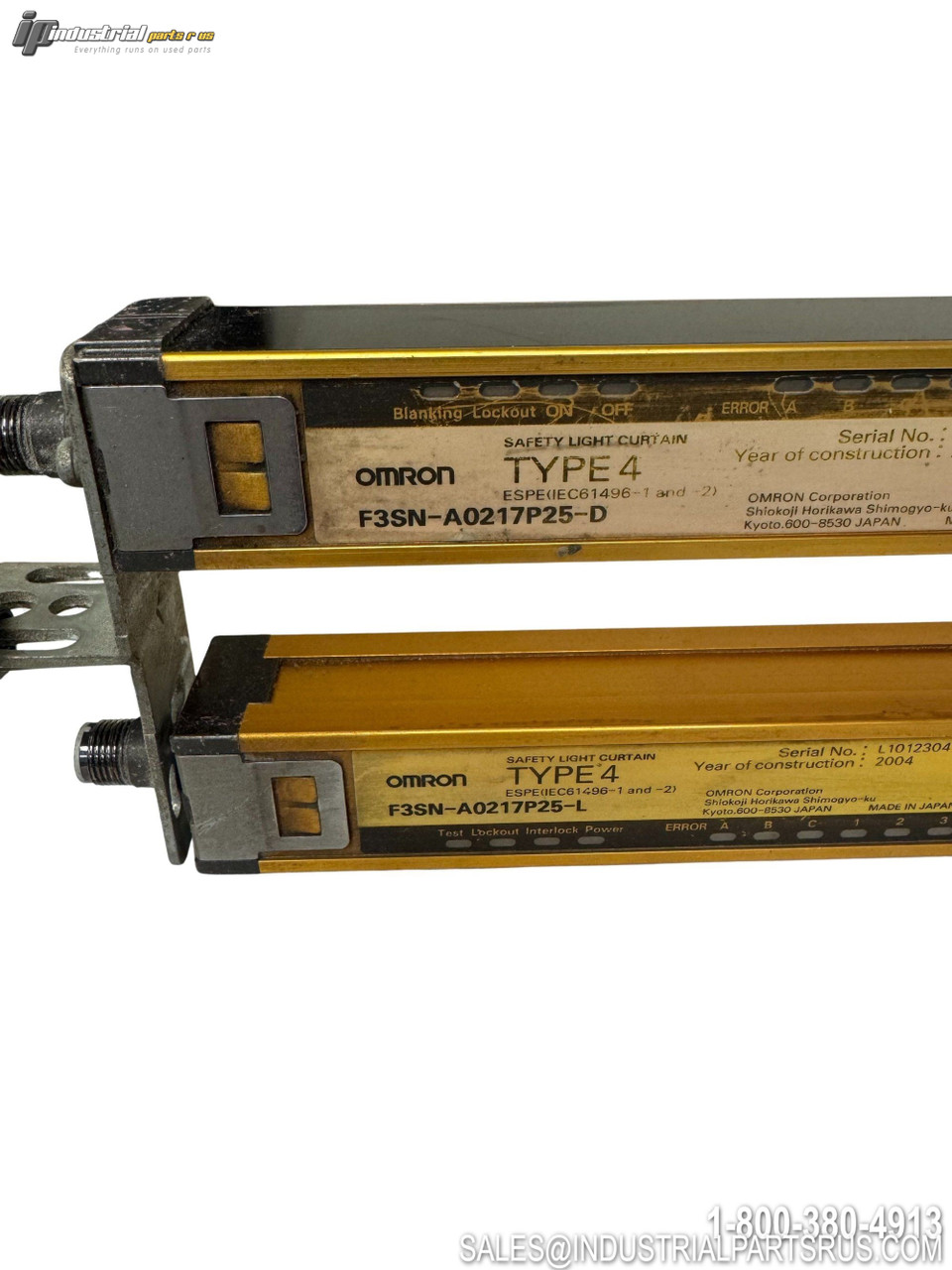

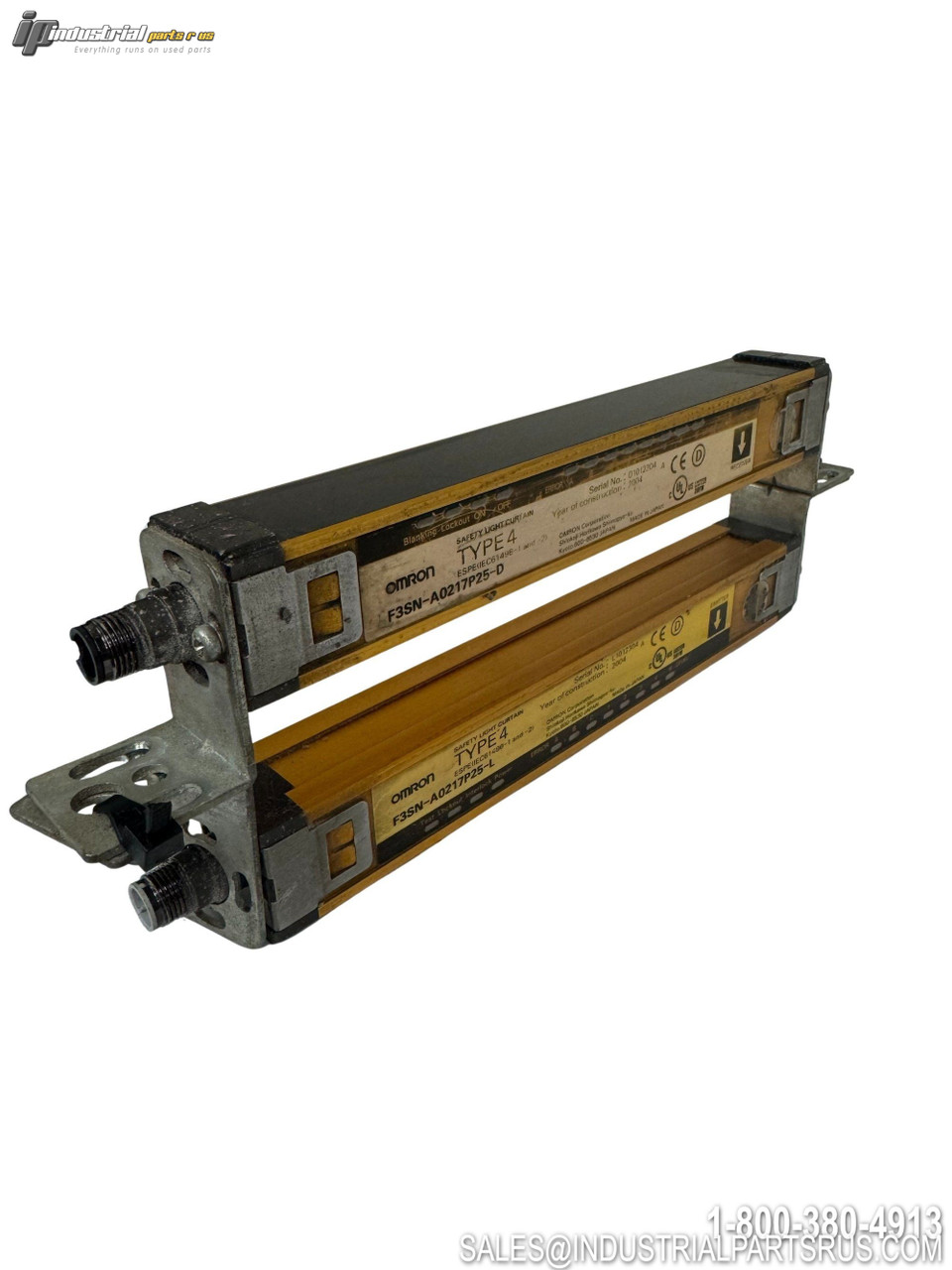

The Omron F3SN-A0217P25-D & L is a complete safety light curtain system including both emitter (L) and receiver (D) units. This system provides Category 4 safety protection with 13 optical beams spanning a 217mm protective height, designed for machine safeguarding applications requiring PLe safety level compliance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | F3SN-A0217P25-D & L |
| Type | Light Curtain |
| Series | F3SN-A |
| Protective Height | 217mm |
| Number of Beams | 13 |
| Detection Capability | 25mm |
| Safety Category | Category 4 |
| Performance Level | PLe |
| Operating Range | 0.2 to 10m |
| Supply Voltage | 24VDC |
| Response Time ON to OFF | 10 to 15 ms max |
| Response Time OFF to ON | 40 to 60 ms max |
| Output Type | PNP Transistor |
| Load Current | 300mA max |
| Mounting | Brackets included |
| Enclosure Rating | IP67 |
| Case Material | Aluminum |
| Compliance | ANSI/RIA, OSHA, IEC, EN, UL, CSA |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP Transistor
Full Load Amps 300mA max
Manufacturer Omron
Enclosure Type IP67
Part Number F3SN-A0217P25-L / F3SN-A0217P25-D
Shelf LC Bin
Model F3SN-A0217P25-D & L
MPN F3SN-A0217P25-L / F3SN-A0217P25-D
Type Light Curtain
