Product Description

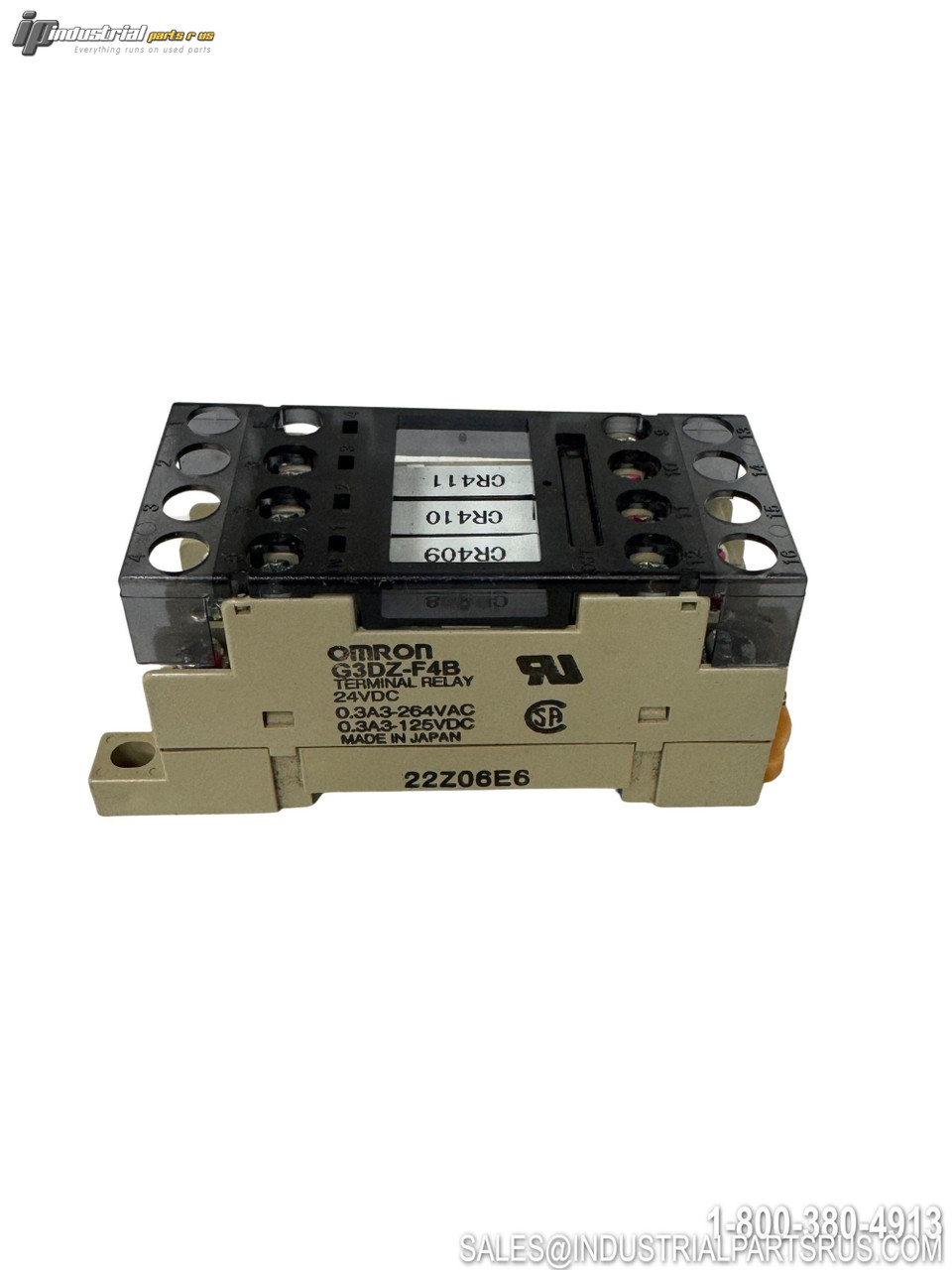

The Omron G3DZ-F4B is a slim profile terminal solid state relay designed for AC/DC load switching applications using power MOSFET technology. This 4-pole unit provides reliable switching with LED operation indicators, coil surge absorption diodes, and easy DIN rail mounting for industrial control panels.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | G3DZ-F4B |
| Product Type | Terminal Solid State Relay |
| Rated Current | 5A |
| Max Switching Voltage AC | 250VAC |
| Max Switching Voltage DC | 30VDC |
| Max Switching Capacity AC | 1250VA (resistive load) |
| Max Switching Capacity DC | 150W (resistive load) |
| Number of Poles | 4 (SPST-NO) |
| Contact Configuration | 4 x 1NO (4 x SPST-NO) |
| Terminal Type | Screw Terminal |
| Mounting Type | DIN Rail |
| Width | 31mm |
| Operating Temperature | -25°C to +55°C |
| Technology | Power MOSFET |
| Features | LED Indicator, Surge Absorption Diode |
| Electrical Life | 100,000 operations min |
| Mechanical Life | 20,000,000 operations min |
| Coil Voltage | Available in 12VDC or 24VDC (specify when ordering) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Japan
Manufacturer Omron
Part Number G3DZ-F4B
Shelf K-69
Model G3DZ-F4B
MPN G3DZ-F4B
Type Solid State Relay
