Product Description

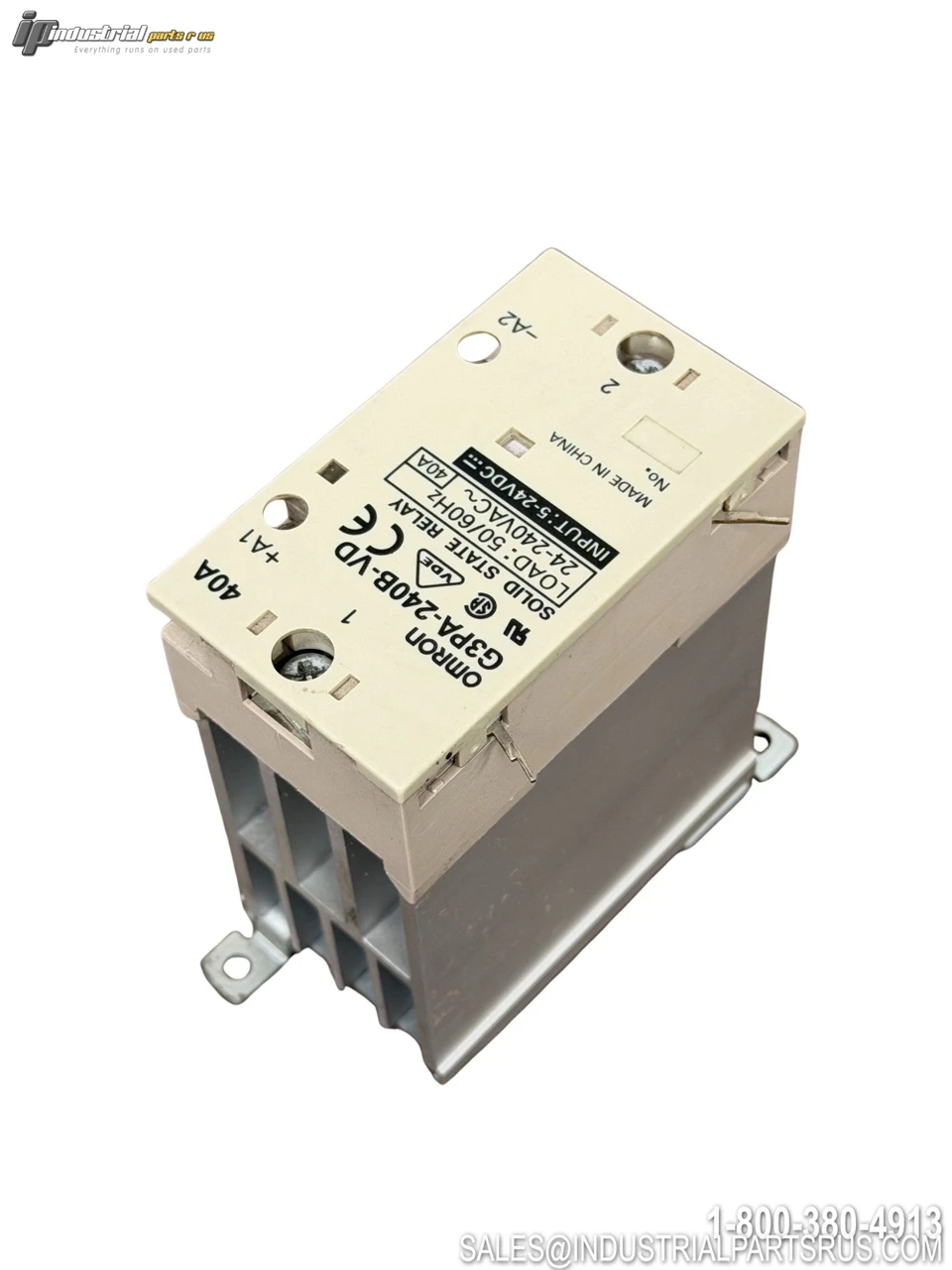

The Omron G3PA-240B-VD is an industrial solid state relay designed for switching AC loads. This unit is rated for a 24-240VAC load at up to 40A with a 5-24VDC control input. It features an integrated heat sink, screw-terminal connections, and a compact industrial mounting design.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | G3PA-240B-VD |
| Series | G3PA |
| Product Type | Solid State Relay (SSR) |
| Control Input | 5-24VDC |
| Load Voltage | 24-240VAC |
| Load Current | 40A |
| Load Frequency | 50/60Hz |
| Terminal Type | Screw Terminals |
| Heat Sink | Integrated |
| Certification Markings | UL, CSA, VDE, CE |
| Country of Manufacture | China |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.5 A
Manufacturer Omron
Part Number G3PA-240B-VD
Shelf C-11 Tub 2
Model G3PA-240B-VD
MPN G3PA-240B-VD
Type Solid State Relay
