Product Description

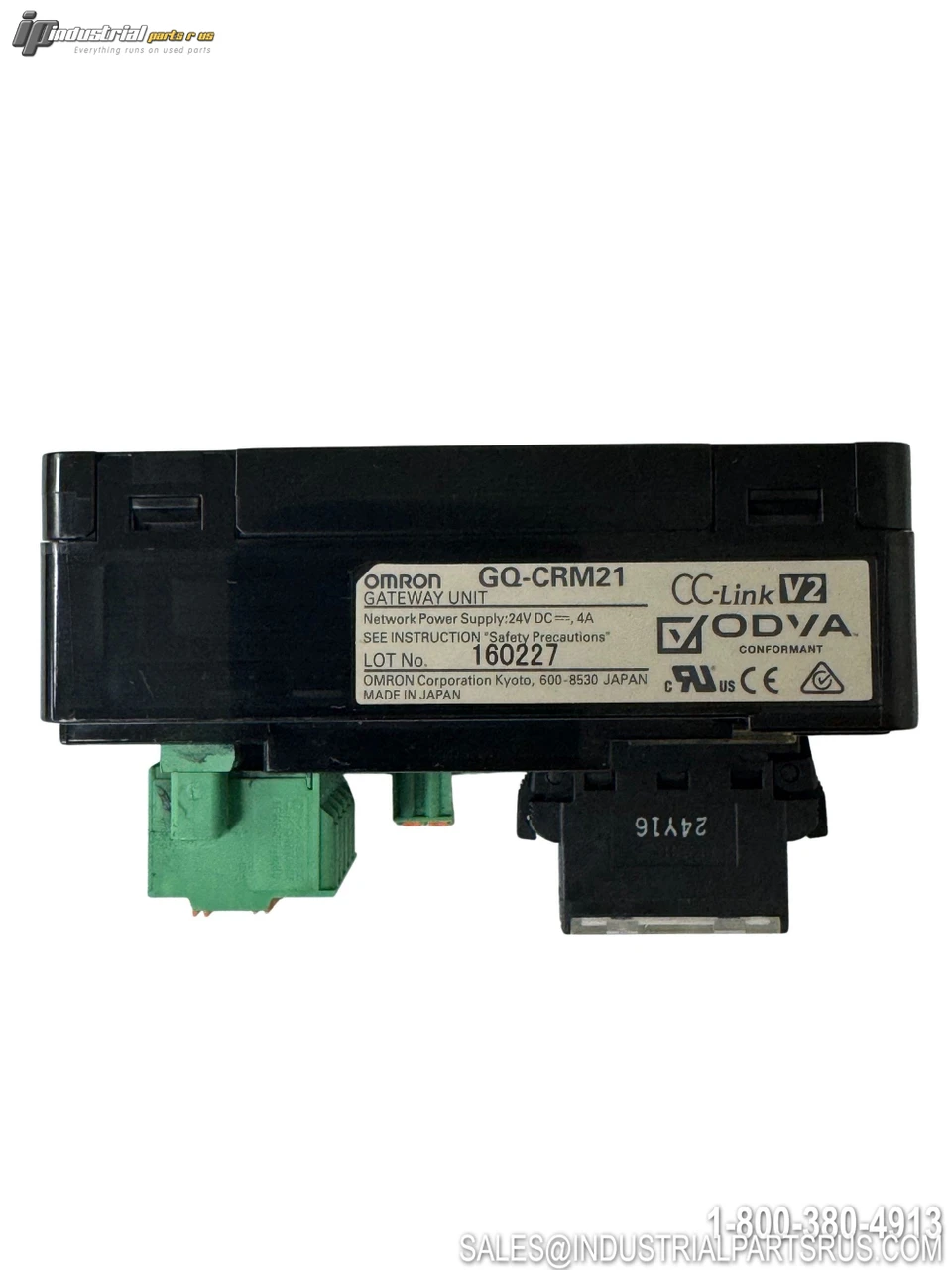

The Omron GQ-CRM21 is a CompoNet Gateway Unit for CC-Link designed to connect CompoNet slave devices to a CC-Link master network. The unit provides one CC-Link port and one CompoNet port and cyclically transfers I/O data between CompoNet Slave Units and the CC-Link Master Unit.
The GQ-CRM21 operates as a CC-Link remote device station occupying four stations and supports CC-Link Version 1.10 and Version 2.00, selectable using the unit's mode switch. It supports remote I/O communications with a maximum capacity of 2,048 I/O points for Word Slave Units (1,024 inputs and 1,024 outputs) or 512 I/O points for Bit Slave Units (256 inputs and 256 outputs).
A built-in seven-segment display provides convenient on-site monitoring and error indication. The gateway is designed to simplify system expansion and wiring by allowing CompoNet devices to be integrated into existing CC-Link networks. {"fallbackMarkdown":"([Omron](https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":1248,"end_idx":1282,"safe_urls":["https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21","https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com","https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892","https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892&utm_source=chatgpt.com"],"refs":[],"alt":"([Omron](https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","style":null,"fallback_items":null,"status":"done","items":[{"title":"MEMO","url":"https://assets.omron.eu/downloads/latest/datasheet/en/p056_componet_datasheet_en.pdf?v=21&utm_source=chatgpt.com","attribution":"Omron","pub_date":1776207536,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"CompoNet GQ-CRM21","url":"https://www.omron-ap.com/data_pdf/cat/gq-crm21_p067-e1-01.pdf?id=2892&utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Omron AP"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":12},{"turn_index":0,"ref_type":"search","ref_index":14}],"hue":null,"attributions":null}],"error":null},"showLoginRequiredCard":false}
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | GQ-CRM21 |
| Product Type | CompoNet Gateway Unit for CC-Link |
| CC-Link Port | 1 |
| CompoNet Port | 1 |
| CC-Link Station Type | Remote Device Station |
| CC-Link Stations Occupied | 4 |
| CC-Link Version | Version 1.10 / Version 2.00 |
| CC-Link Communication | Remote I/O Communications |
| Maximum Word Slave I/O | 2,048 points total (1,024 inputs / 1,024 outputs) |
| Maximum Bit Slave I/O | 512 points total (256 inputs / 256 outputs) |
| CC-Link Baud Rates | 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps, 10 Mbps |
| CompoNet Communication | CompoNet Protocol |
| CompoNet Baud Rates | 93.75 kbps, 1.5 Mbps, 3 Mbps, 4 Mbps* |
| Unit Power Supply | 21.6–26.4 VDC (24 VDC ±10%) |
| Communications Power Consumption | 3.80 A at 24 VDC |
| Internal Power Consumption | 0.13 A at 24 VDC |
| Display | Seven-segment display |
| Installation | DIN rail or M4 screws |
| Operating Temperature | 0–55 °C |
| Operating Humidity | 10–90% RH, non-condensing |
| Storage Temperature | −25–65 °C |
| Weight | 110 g maximum |
| Noise Immunity | IEC 61000-4-4, 2.0 kV |
| Dielectric Strength | 500 VAC |
*4 Mbps CompoNet communication is not supported on branch lines and therefore cannot be used with Slave Units connected using cables. {"fallbackMarkdown":"([manualslib.com](https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":5696,"end_idx":5728,"safe_urls":["https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html","https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com","https://www.omron.com.au/products/family/2892/specification.html","https://www.omron.com.au/products/family/2892/specification.html?utm_source=chatgpt.com"],"refs":[],"alt":"([manualslib.com](https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","style":null,"fallback_items":null,"status":"done","items":[{"title":"OMRON GQ-CRM21 OPERATION MANUAL Pdf Download | ManualsLib","url":"https://www.manualslib.com/manual/720995/Omron-Gq-Crm21.html?utm_source=chatgpt.com","attribution":"manualslib.com","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"GQ-CRM21 CompoNet Gateway Unit for CC-Link/Specifications | OMRON Industrial Automation Australia","url":"https://www.omron.com.au/products/family/2892/specification.html?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"omron.com.au"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":3},{"turn_index":0,"ref_type":"search","ref_index":2}],"hue":null,"attributions":null}],"error":null},"showLoginRequiredCard":false}
Note: Omron currently identifies the GQ-CRM21 as having reached end of ordering in June 2026. {"fallbackMarkdown":"([Omron](https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":5865,"end_idx":5884,"safe_urls":["https://www.fa.omron.co.jp/products/family/2892/specification/","https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com"],"refs":[],"alt":"([Omron](https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","items":[{"title":"GQ-CRM21 CC-Link対応CompoNetゲートウェイユニット/定格/性能 | オムロン制御機器","url":"https://www.fa.omron.co.jp/products/family/2892/specification/?utm_source=chatgpt.com","attribution":"Omron","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[],"refs":[{"turn_index":0,"ref_type":"search","ref_index":0}],"hue":null,"attributions":null}],"fallback_items":null,"status":"done","error":null,"style":null},"showLoginRequiredCard":false}
Warranty: All items are covered by a 30-day warranty from the date of purchase.
