Product Description

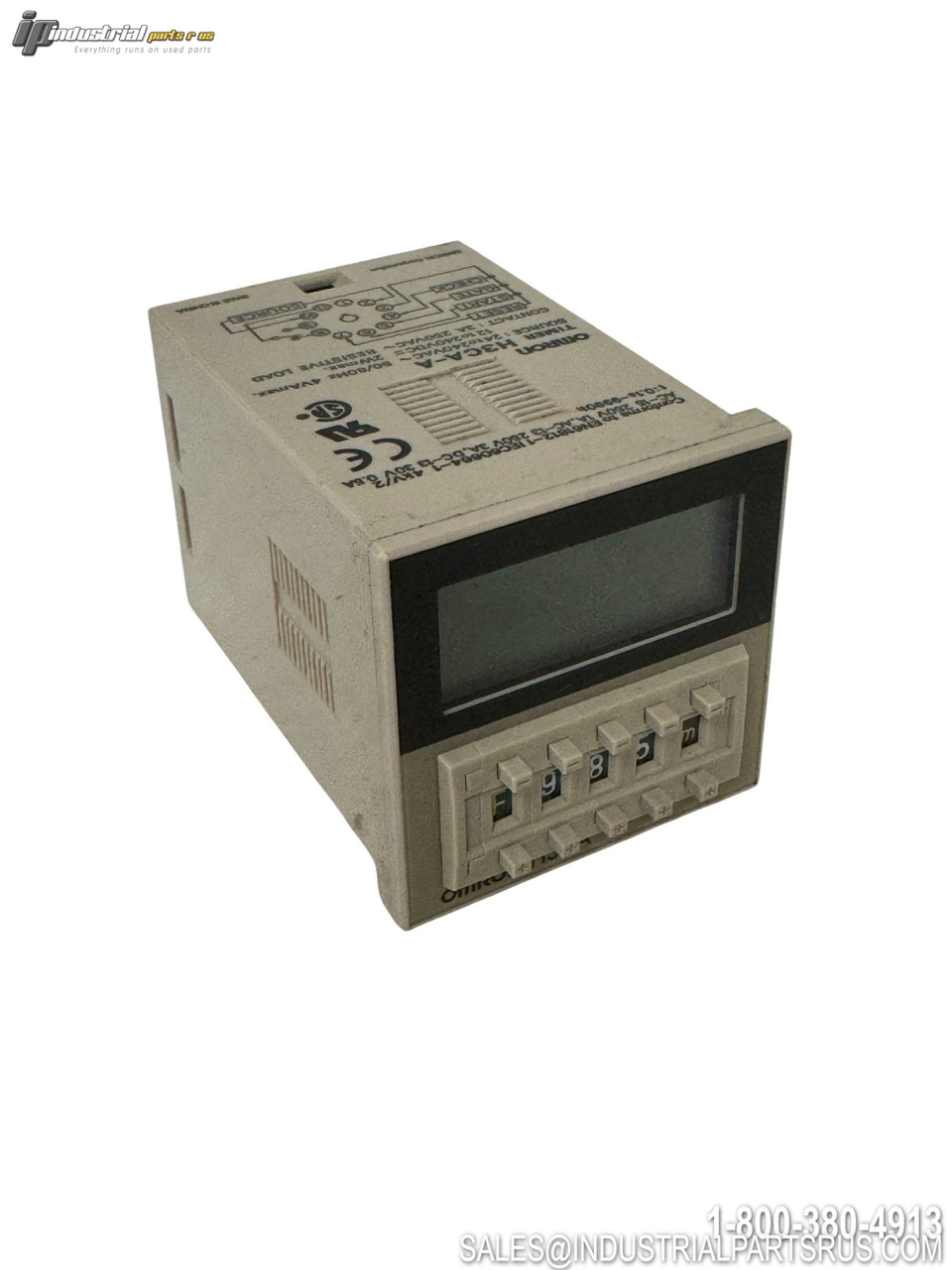

The Omron H3CA-A is a solid-state multifunction digital timer relay featuring 8 selectable operation modes and universal AC/DC power compatibility. This 1/16 DIN plug-in timer offers wide timing ranges from 0.1 seconds to 9990 hours with an easy-to-read LCD bargraph display and output status indicators.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H3CA-A |
| Product Type | Time Delay Relay |
| Series | H3CA |
| Supply Voltage (AC) | 24-240VAC, 50/60Hz |
| Supply Voltage (DC) | 12-240VDC |
| Time Range | 0.1 seconds to 9990 hours |
| Number of Timer Modes | 8 |
| Output Contacts | SPDT |
| Contact Rating | 3A @ 250VAC |
| Connection Type | 11-pin round socket |
| Mounting Type | Plug-in |
| Panel Cutout | 1/16 DIN (45x45mm) |
| Dimensions | 48 x 48 x 75.4mm |
| Display | LCD bargraph with 3-digit display |
| Input Method | No-voltage input |
| Operating Temperature | -10°C to +55°C |
| Timing Accuracy | ±0.3% ±0.05 seconds |
| Power Consumption | 3VA (AC) / 3W (DC) |
| Certifications | UL, CSA, CE |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Plug-In
Current Rating 3A
Output Type Relay SPDT
Manufacturer Omron
Part Number H3CA-A
Series H3CA
Shelf F-11 Tub 10
Model H3CA-A
Coil Voltage 24-240VAC/12-240VDC
MPN H3CA-A
Type Time Delay Relay
