Product Description

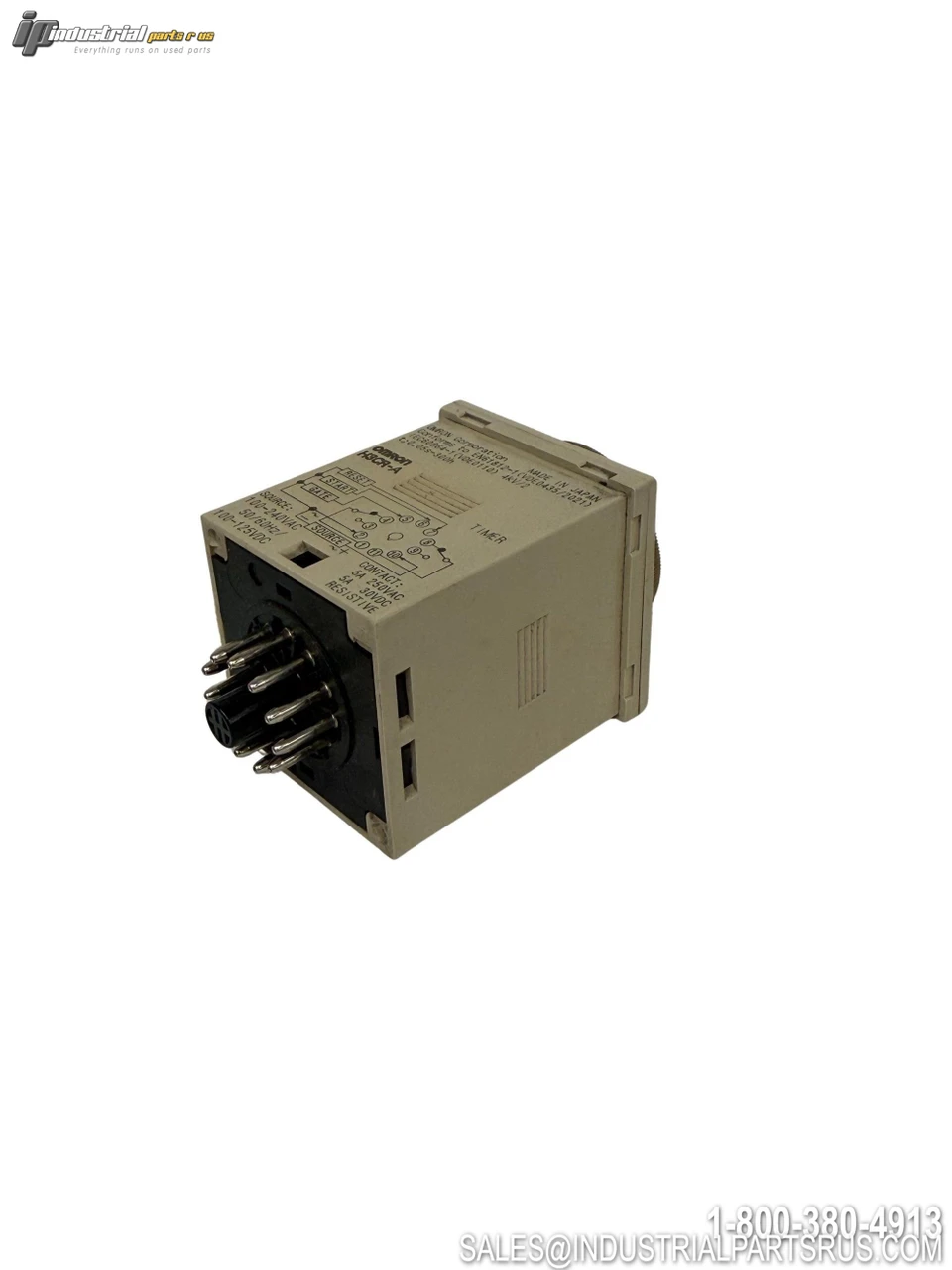

The Omron H3CR-A is a solid-state, multi-functional analog timer in a 1/16 DIN (48 × 48 mm) panel-mount form factor. It features an 11-pin plug-in socket design with DPDT relay output contacts and supports eight selectable operating modes including ON-delay, flicker, interval, signal ON/OFF-delay, and one-shot. The H3CR-A accepts a wide AC/DC supply voltage range, covering 100–240 VAC or 100–125 VDC, as well as a lower-voltage variant (24–48 VAC / 12–48 VDC), making it suitable for a broad range of industrial timing and sequencing applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | H3CR-A |
| Product Type | Solid-State Multi-Functional Timer |
| Series | H3CR-A |
| Form Factor | 1/16 DIN — 48 × 48 mm |
| Pin Type | 11-Pin |
| Output Type | DPDT Relay (Double Pole Double Throw) |
| Rated Supply Voltage (AC) | 100 to 240 VAC (50/60 Hz) or 24 to 48 VAC (50/60 Hz) |
| Rated Supply Voltage (DC) | 100 to 125 VDC or 12 to 48 VDC |
| Operating Voltage Range (AC) | 85% to 110% of rated supply voltage |
| Operating Voltage Range (DC) | 90% to 110% of rated supply voltage |
| Timing Range | 0.05 seconds to 300 hours |
| Number of Operating Modes | 8 (11-pin model) |
| Operating Modes | A: ON-delay, B: Flicker OFF start, B2: Flicker ON start, C: Signal ON/OFF-delay, D: Signal OFF-delay, E: Interval, G: Signal ON/OFF-delay, J: One-shot |
| Max Contact Load (AC) | 5 A, 250 VAC (p.f. = 1) |
| Max Contact Load (DC) | 0.5 A, 30 VDC (DC-13) |
| Minimum Load | 10 mA, 5 VDC |
| Power Consumption (Relay ON, 240VAC) | Approx. 2.0 VA (1.6 W) |
| Power Consumption (Relay OFF, 240VAC) | Approx. 1.3 VA (1.1 W) |
| Power Consumption (Relay ON, DC) | Approx. 0.8 W |
| Power Consumption (Relay OFF, DC) | Approx. 0.2 W |
| Input Type | No-voltage (short-circuit or open) inputs |
| Input Impedance (ON) | 1 kΩ max. |
| Input Impedance (OFF) | 100 kΩ min. |
| Input Residual Voltage | 1 V max. |
| Timing Accuracy | ±1% FS max. (±1% ±10 ms max. in ranges of 1.2 s or 3 s) |
| Dielectric Strength (Power Terminals, HV model) | 3 kV (100–240 VAC / 100–125 VDC models) |
| Insulation Resistance | 2,000 VAC, 50/60 Hz for 1 min (between contacts of different polarities) |
| Min. Pulse Width | 0.05 s |
| Min. Power-Opening Time | 0.1 s max. |
| Mounting Type | Panel mount via 11-pin plug-in socket (P3GA-11 / P2CF-11) |
| Compatible Sockets | P2CF-11, P2CF-11-E, P3GA-11 |
| Panel Cutout | 48 × 48 mm |
| Weight | Approx. 90 g (3.17 oz) |
| Standards / Certifications | UL, CSA, NK, LR, CCC, EN 61812-1, CE Marking |
