Product Description

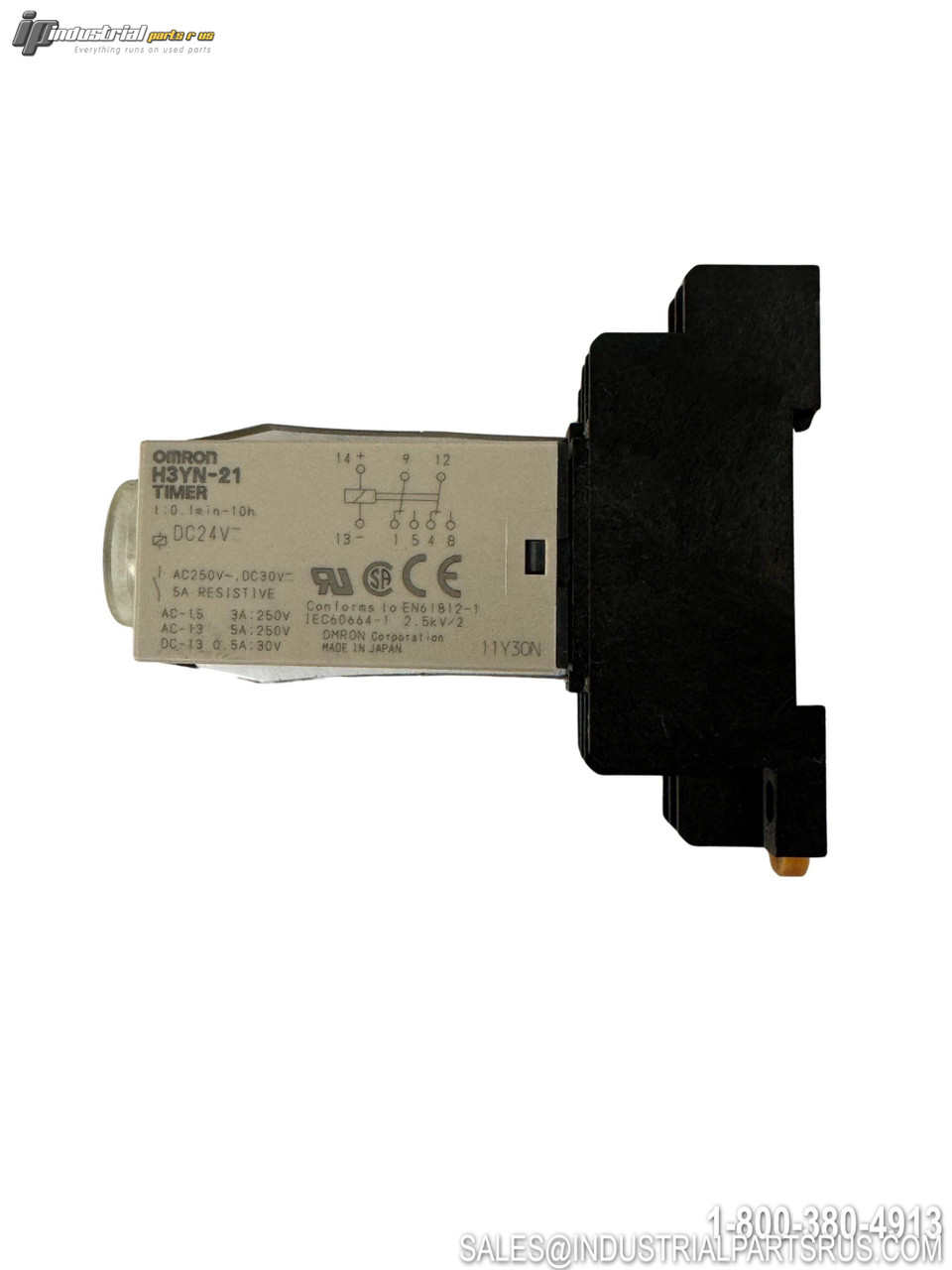

The Omron H3yn-21 is a solid-state timer from the H3YN series featuring four operating modes and long time ranges. This multifunction timer provides DPDT output contacts with plug-in terminal mounting and offers precise timing control for industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | H3yn-21 |
| Product Type | Time Delay Relay |
| Series | H3YN |
| Output Configuration | DPDT |
| Terminal Type | 8-Pin Plug-In |
| Time Range | 0.1 min to 10 hours |
| Operating Modes | 4 modes (ON-delay, interval, flicker) |
| Contact Rating | 5A @ 250VAC resistive |
| Body Color | Beige |
| Mounting Type | Plug-in |
| Timer Type | Solid-state |
| Factory Setting | 1-min range, ON-delay mode |
| Supply Voltage | See label - requires voltage suffix |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Plug-in
Current Rating 5A
Output Type DPDT
Material Plastic housing
Manufacturer Omron
Part Number H3YN-21
Series H3YN
Shelf K -20
Model H3YN-21
Coil Voltage See label
MPN H3YN-21
Type Time Delay Relay
