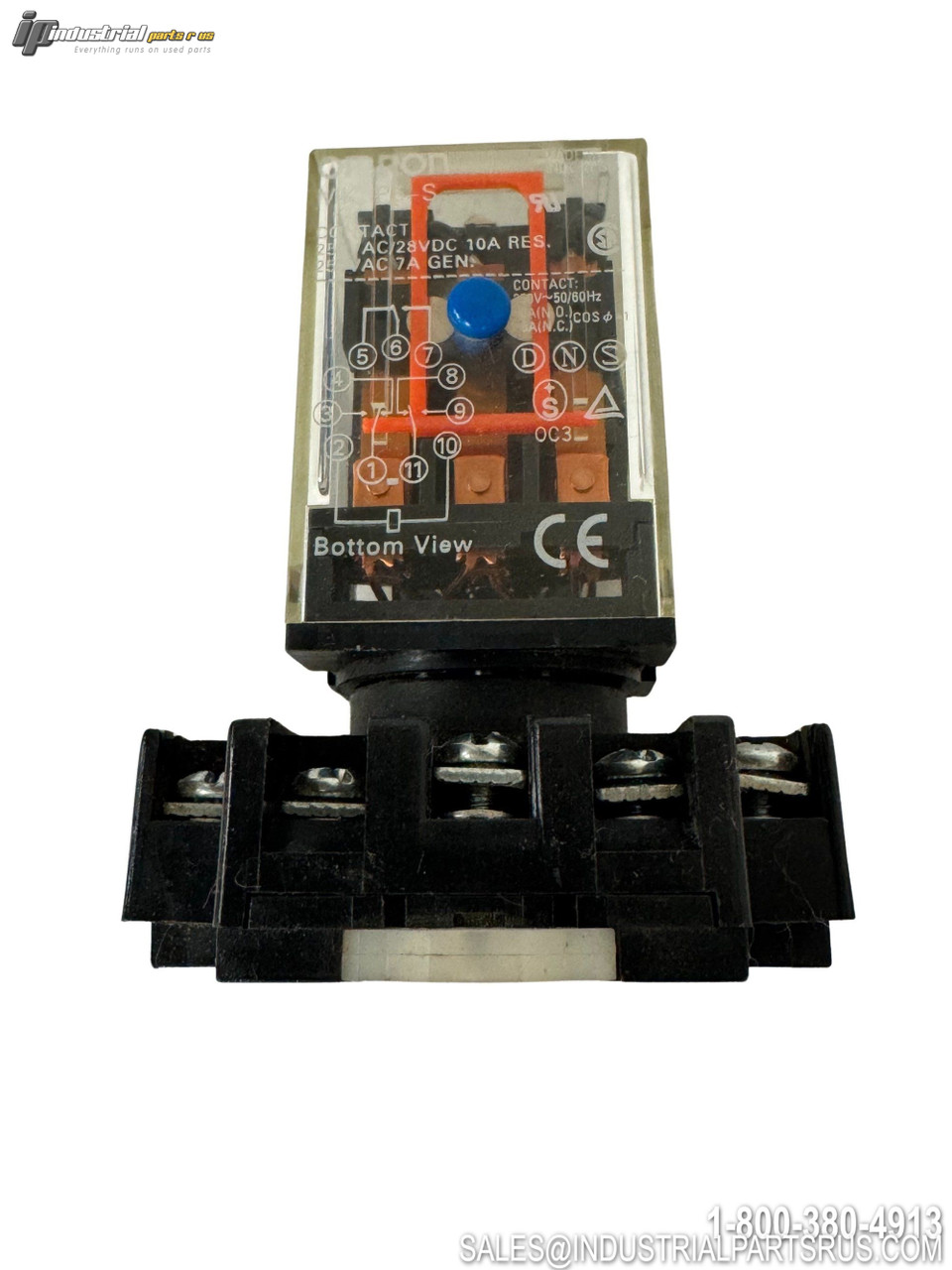

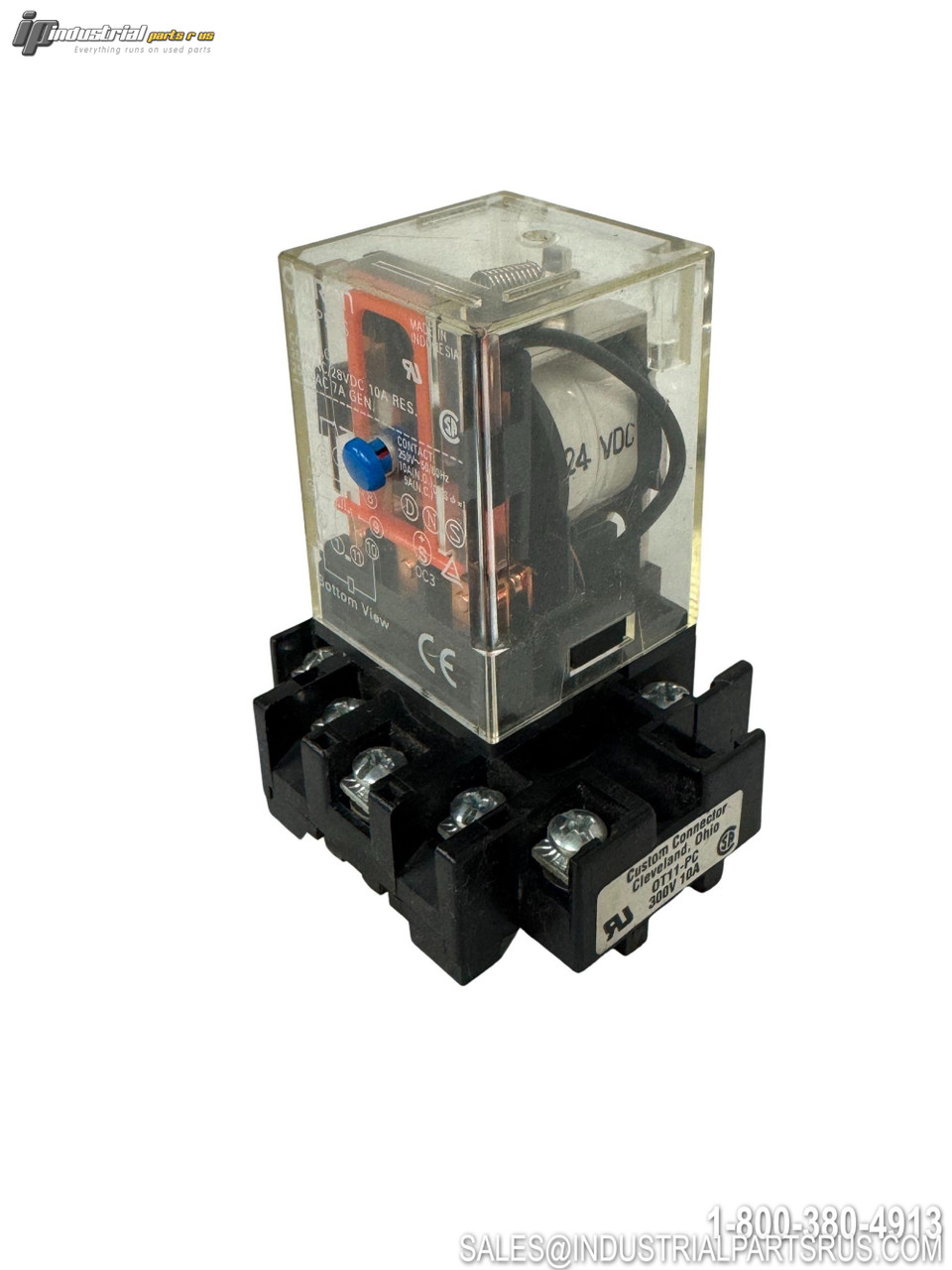

Product Description
The Omron MK3P5-S is a general purpose control relay designed for industrial automation applications. This relay features 3PDT (triple pole double throw) contact configuration with mechanical indicator and push-to-test button for easy operation verification. Built for exceptional reliability with silver contacts providing minimum 100,000 electrical operations.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | MK3P5-S |
| Type | General Purpose Relay |
| Contact Configuration | 3PDT (3 Form C) |
| Contact Rating | 10A |
| Maximum Switching Voltage | 250VAC / 28VDC |
| Contact Material | Silver (Ag) |
| Mounting Type | Plug-In (Socketable) |
| Terminal Style | 11-Pin Octal |
| Features | Mechanical Indicator, Push-to-Test Button |
| Series | MK |
| Coil Type | Non-Latching |
| Operation Time | AC: 20ms max, DC: 30ms max |
| Electrical Life | Minimum 100,000 operations |
| Coil Voltage | See label - requires voltage suffix |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Plug-In
Current Rating 10A at 250VAC / 28VDC
Application Industrial Control and Automation
Manufacturer Omron
Part Number MK3P5-S
Shelf K-69
Model MK3P5-S
Coil Voltage Various (see label for specific voltage)
MPN MK3P5-S
Type Control Relay
