Product Description

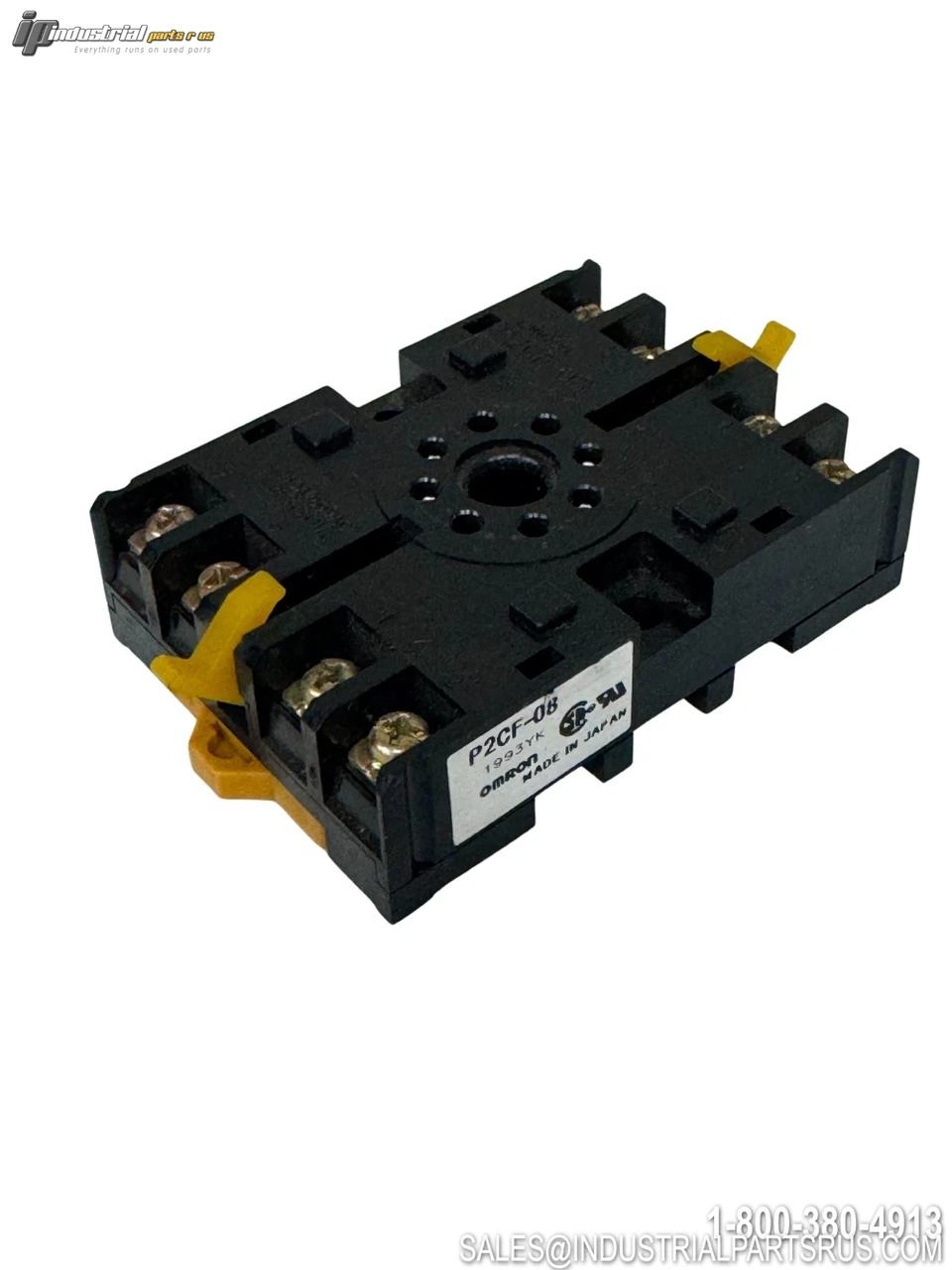

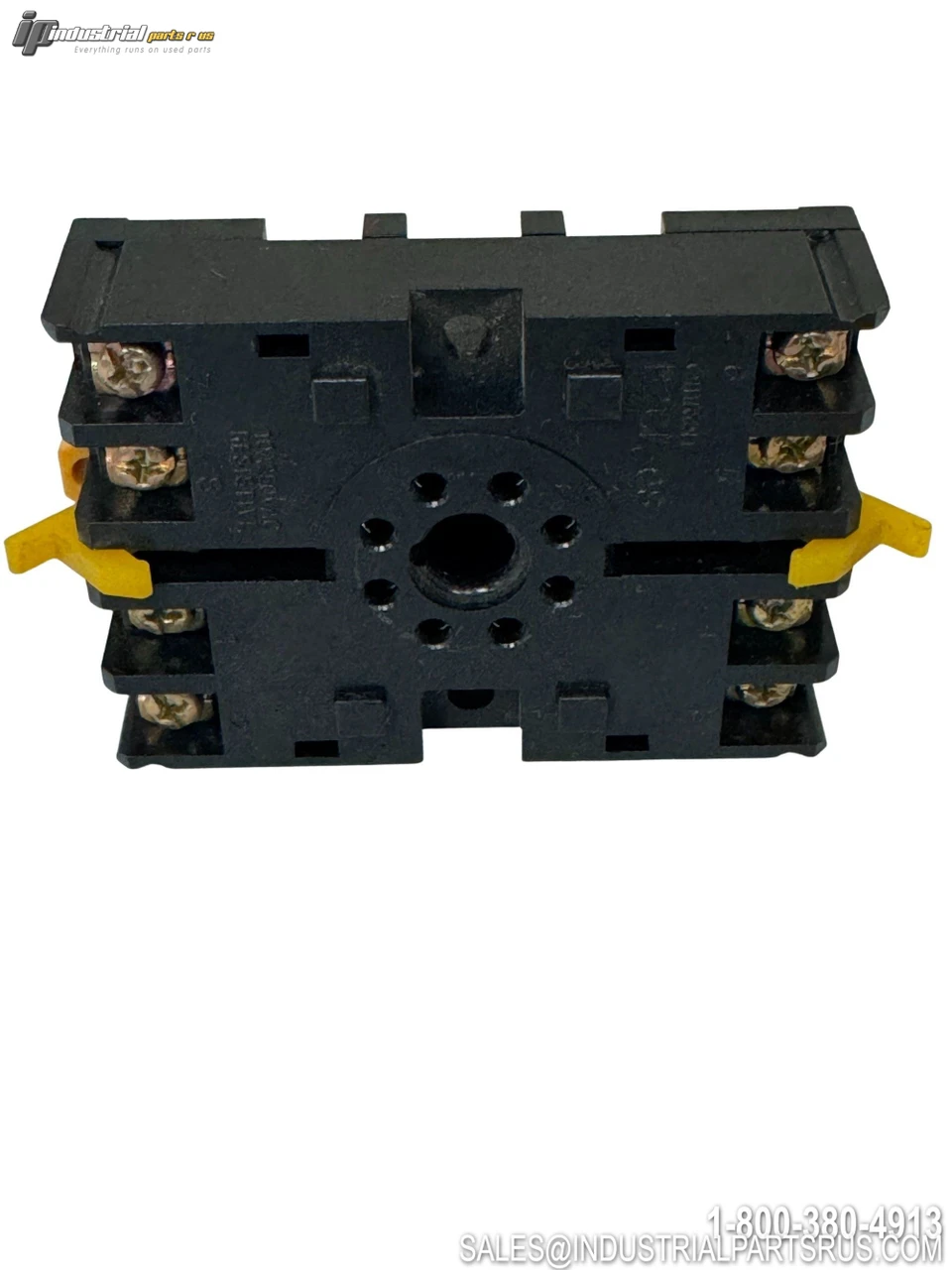

The Omron P2CF-08 is an 8-pin octal relay socket designed for plug-in relay and timer mounting in industrial control panels and automation systems. It features screw terminals for secure wiring and supports both DIN rail and panel surface mounting. The socket uses a 2PDT (Double Pole Double Throw) contact configuration with silver alloy contacts and provides finger protection on pin sockets for added safety. It is compatible with Omron's H3CR-F solid-state twin timers, MY2 series relays, MK series relays, H2C motor timers, H7CR, H5CN, and H5CX timers, and is constructed from high-grade plastic with RoHS compliance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | P2CF-08 |
| Product Type | Relay Socket |
| Series | P2CF |
| Number of Pins | 8 |
| Socket Type | Octal (8-Pin) |
| Number of Poles | 2 |
| Voltage Rating | 240VAC |
| Current Rating | 6A |
| Terminal Type | Screw Terminals |
| Mounting Type | DIN Rail / Panel (Front Mounting) |
| Compatible Relays/Timers | H3CR-F, MY2, MK Series, H2C Motor Timers |
| Body Material | High-Grade Plastic |
| Color | Black |
| Width | 70 mm |
| Height | 31.2 mm |
| RoHS Compliant | Yes |
| Lifecycle Status | Active / In Production |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 6A
Country/Region of Manufacture Japan
Manufacturer Omron
Part Number P2CF-08
Shelf K-50
Model P2CF-08
Coil Voltage N/A - Socket Only (No Coil)
MPN P2CF-08
Type Relay
