Product Description

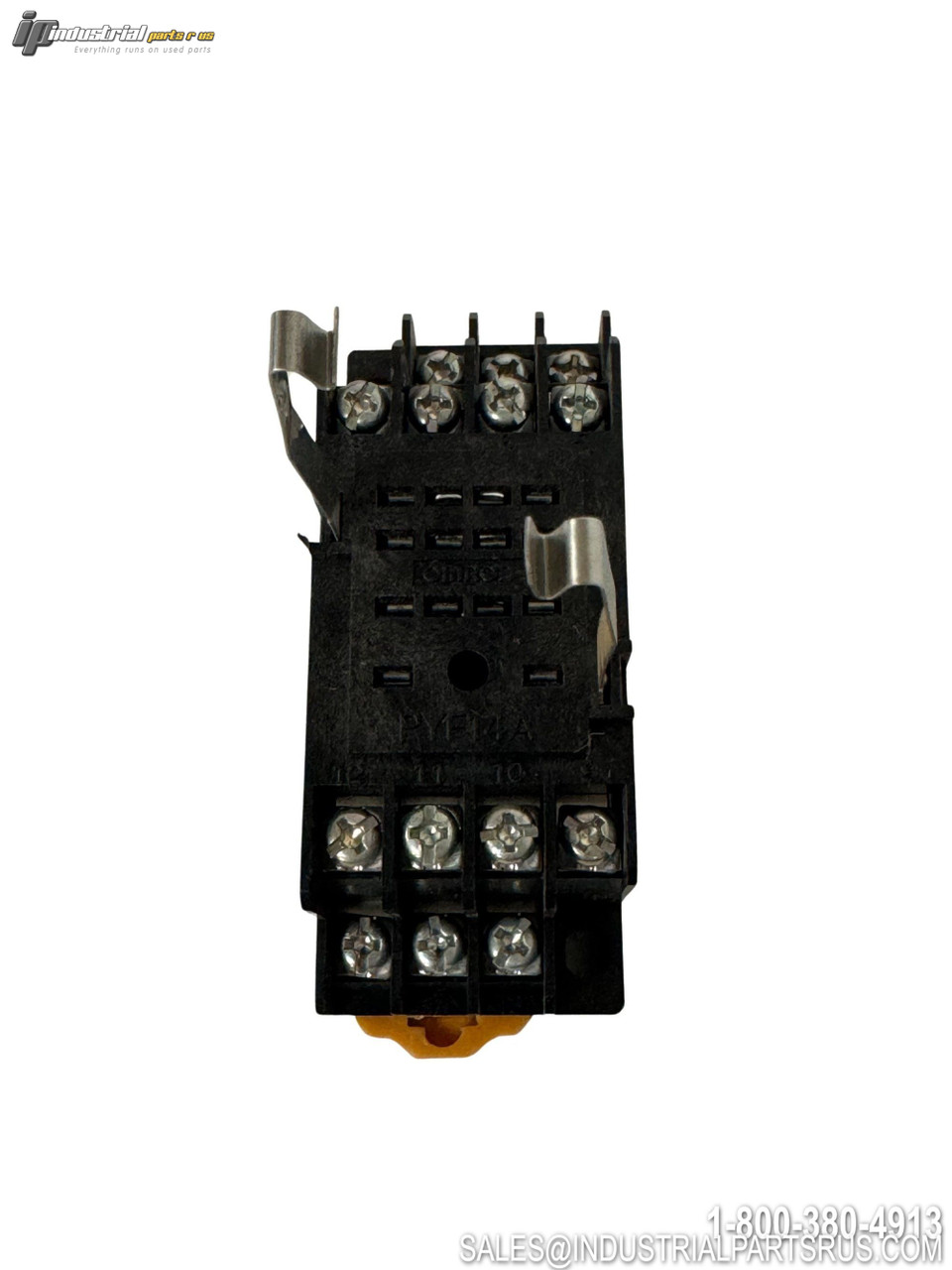

The Omron PYF14A is a professional-grade 14-pin relay socket designed for DIN rail mounting in industrial control and automation applications. This socket features screw terminal connections and is specifically engineered for compatibility with Omron MY series relays. It provides reliable electrical connections with a current rating of 3A at 250VAC, making it ideal for general-purpose relay applications in control panels.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model/Part Number | PYF14A |
| Type | Relay Socket |
| Number of Pins | 14 |
| Poles | 4 |
| Mounting Type | DIN Rail |
| Connection Type | Screw Terminals |
| Design | Front Mounting |
| Rated Current | 3A |
| Voltage Rating | 250VAC |
| Rated Insulation Voltage | 2000V |
| Insulation Resistance | 1000MΩ min (at 500VDC) |
| Dimensions (H x W x D) | 72mm x 29.5mm x 30mm |
| Compatible With | MY Series Relays |
| Socket Configuration | Square Socket |
| Maximum Operating Temperature | 55°C |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 3A
Application Industrial Control
Manufacturer Omron
Part Number PYF14A
Shelf K-69
Model PYF14A
MPN PYF14A
Type Relay
