Product Description

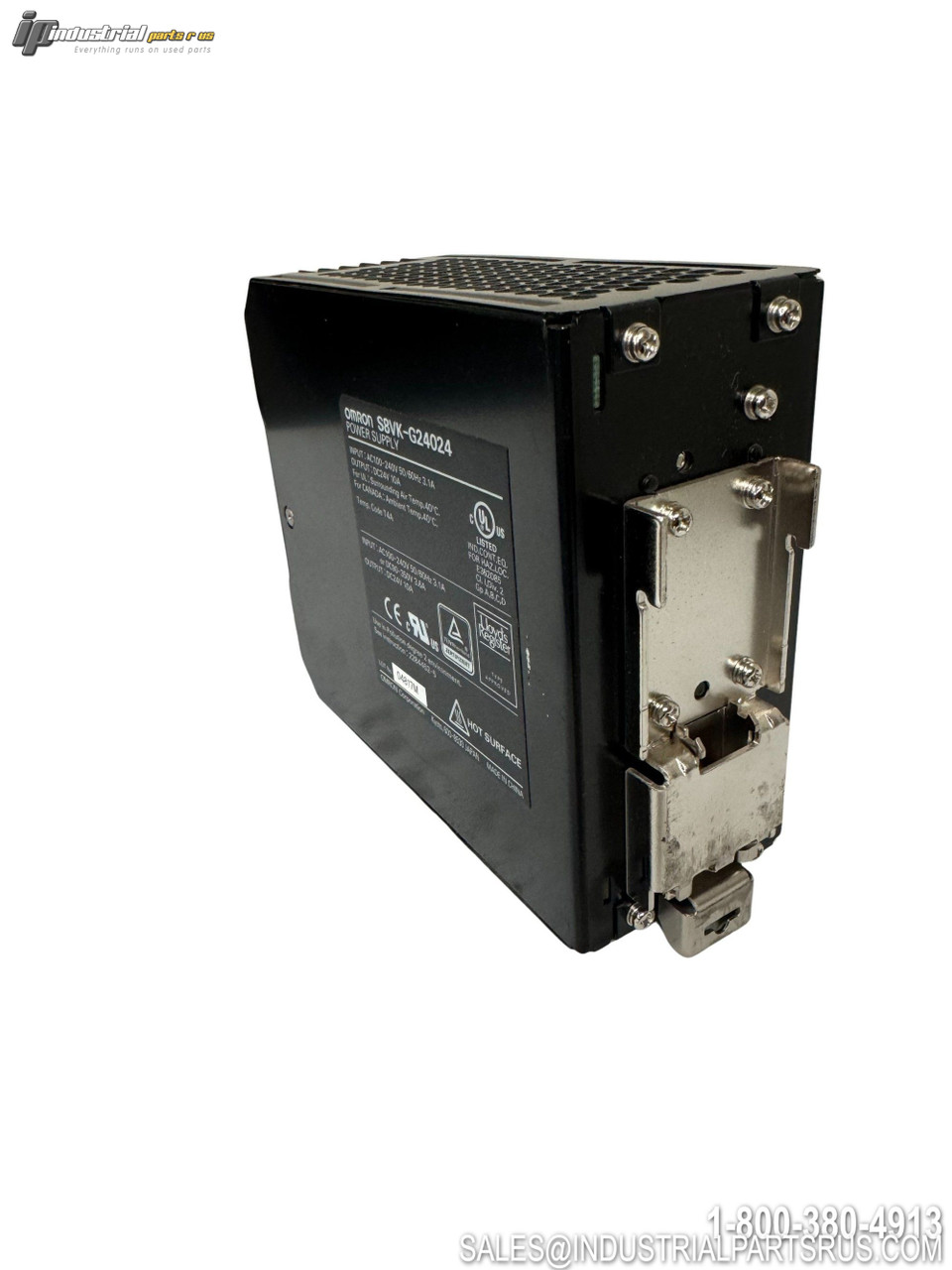

The Omron S8VK-G24024 is a 240W DIN rail-mounted switch mode power supply (SMPS) from the S8VK-G series, designed for industrial automation applications. It accepts a universal single-phase AC input (85–264VAC) or DC input (90–350VDC) and delivers a regulated 24VDC output at 10A continuous, with a 12A boost current for up to 10 seconds. The unit features natural convection cooling, an output voltage adjustment potentiometer, and a green LED output status indicator, with built-in overload, overvoltage, and short-circuit protection. RoHS compliant and approved to Lloyd's Marine and SEMI F47-0706 standards.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Model / Part Number | S8VK-G24024 |
| Series | S8VK-G |
| Product Type | Switch Mode Power Supply (SMPS) |
| Output Power | 240 W |
| Output Voltage (DC) | 24 VDC |
| Output Current (Rated) | 10 A |
| Output Current (Boost) | 12 A (120% boost, 10 sec max) |
| Input Voltage (AC) | 85–264 VAC (100–240 VAC nominal) |
| Input Voltage (DC) | 90–350 VDC (110 VDC nominal) |
| Input Phase | Single-phase AC or DC; Two-phase input capable |
| Input Frequency | 50 / 60 Hz |
| Inrush Current (115 VAC) | 2.4 A |
| Inrush Current (230 VAC) | 1.3 A |
| Cooling Method | Natural convection (gravity) |
| Mounting Type | DIN Rail |
| Dimensions (H × W × D) | 125 × 60 × 150 mm |
| Connection Type | Screw terminal (rod terminal compatible) |
| Input Wire Size | 20–10 AWG |
| Output Wire Size | 14–10 AWG |
| Overload Protection | Yes – Automatic reset |
| Overvoltage Protection | Yes – 130% or higher of rated output; power shut-off |
| Parallel Operation | Yes – Up to 2 units |
| Series Operation | Yes – Up to 2 units |
| Output Indicator | Green LED (lights at ≥80–90% of rated voltage) |
| Output Voltage Adjustment | Yes – Potentiometer |
| Enclosure / IP Rating | IP20 |
| Operating Temperature | -40°C to +70°C (derating required; no condensation/icing) |
| Certifications / Standards | UL 508, UL/EN 62368-1, CSA C22.2 No. 107.1, EN 50178, EN 60950-1, EN 60204-1 PELV, EN 61558-2-16, EN 61204-3 Class B (EMI/EMS), EN 55011 Class B, SEMI F47-0706, Lloyd's Marine |
| Number of Outputs | 1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture China
Full Load Amps 12 A (120%, 10 sec max)
Manufacturer Omron
Enclosure Type IP20
Part Number S8VK-G24024
Shelf K-65
Model S8VK-G24024
MPN S8VK-G24024
Type Switching Power Supply
