Product Description

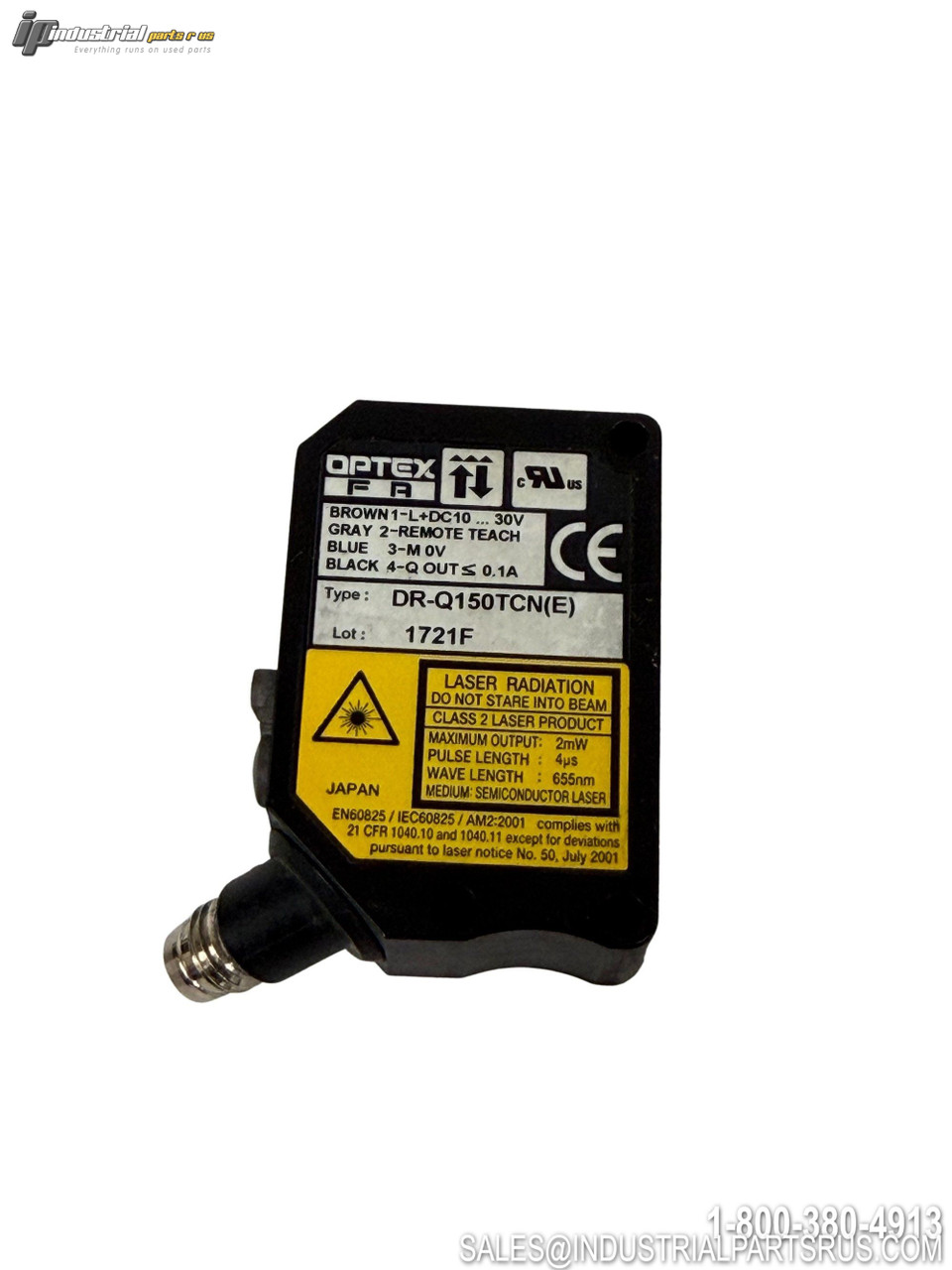

The Optex DR-Q150TCN(E) is a transparent object detection photoelectric sensor featuring coaxial laser beam technology for precise detection of transparent materials including PET, glass, and plastic films. This retro-reflective sensor uses a red semiconductor laser with excellent repeat accuracy for demanding transparent detection applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Optex |
| Model/Part Number | DR-Q150TCN(E) |
| Series | DR-Q |
| Sensor Type | Photoelectric |
| Sensing Mode | Retro-reflective Coaxial |
| Sensing Range | 0 to 1.5 m |
| Light Source | Red Semiconductor Laser Class 2 |
| Wavelength | 650 nm |
| Maximum Output Power | 2 mW |
| Pulse Width | 4 μs |
| Spot Size | Approx. ø15 mm at 1.5m |
| Output Type | NPN Open Collector |
| Current Type | DC |
| Maximum Current | 100 mA |
| Supply Voltage | 10V - 30V DC |
| Response Time | Selectable: 0.35ms, 0.7ms, 2ms, 5ms |
| Repeat Accuracy | 0.3 mm |
| Connection Type | M8 4-wire Quick Disconnect |
| Termination Type | Quick Disconnect |
| Mounting Type | Bracket Mount |
| Threshold Adjustment | Teaching Method with Manual Fine Adjustment |
| Indicators | Orange LED Output, Green LED Laser, Digital Display |
| Features | AGC Circuit, Automatic Sensitivity Compensation |
| Application | Transparent Object Detection - Glass, PET, Plastic Films |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type NPN
Sensor Type Photoelectric
Manufacturer Optex
Part Number DR-Q150TCN(E)
Shelf Q-5
Model DR-Q150TCN(E)
MPN DR-Q150TCN(E)
Type Photoelectric Sensor
