Product Description

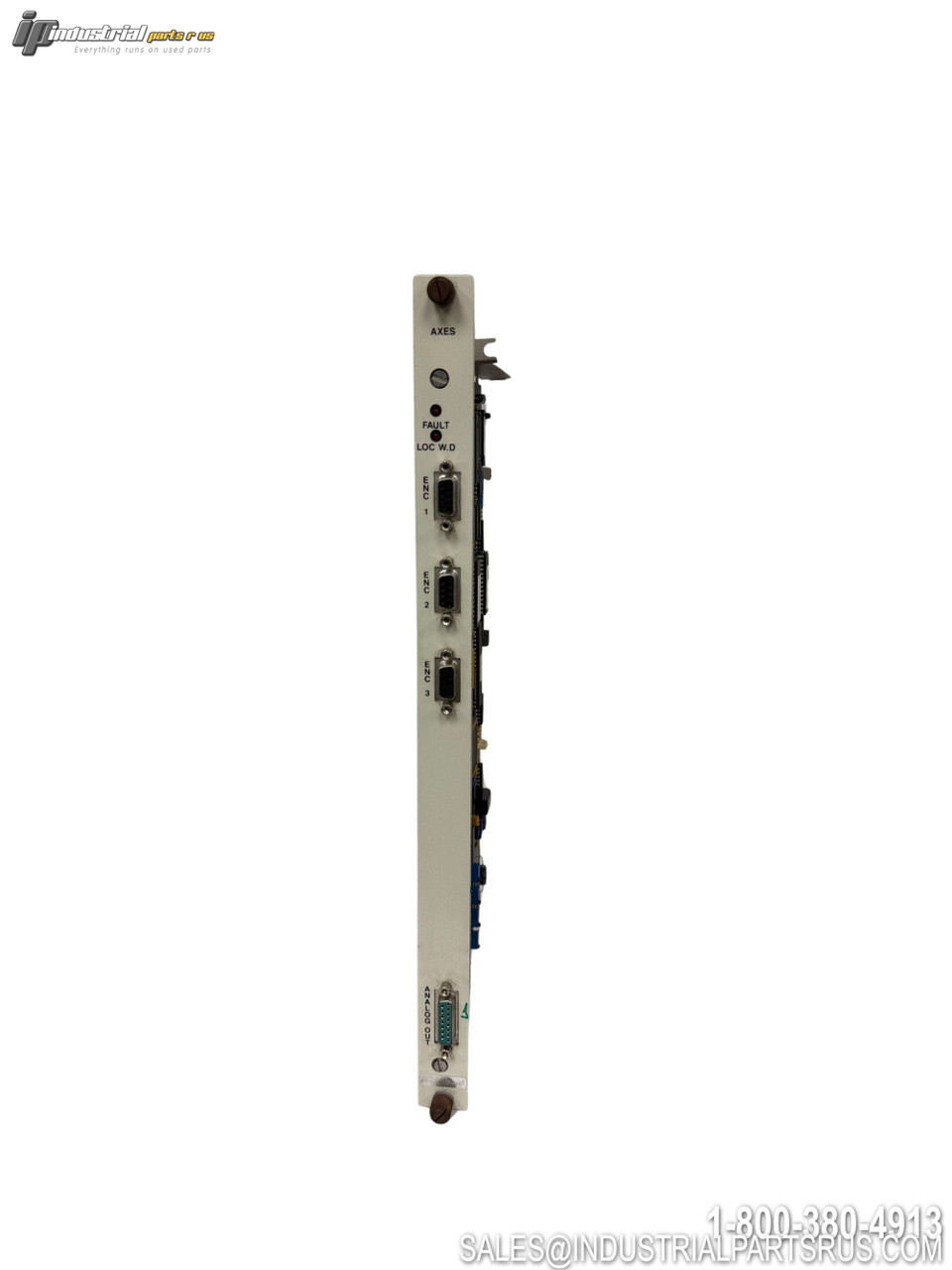

The OSAI OS8020/5 R-5 is a CNC axes control board belonging to the OS8020 family, designed for use within the OSAI 10 Series rack-based numerical control platform (10/365 and related systems). The OS8020 series boards serve as the axes interpolation and control interface within modular OSAI CNC rack units, supporting analog axis command outputs and encoder feedback for machine tool applications including routing, milling, and multi-axis machining centers. The "/5" suffix denotes the channel/axis count variant and "R-5" indicates the board revision or release level.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OSAI |
| Model / Part Number | OS8020/5 R-5 |
| Product Family | OS8020 Series Axes Control Board |
| Compatible CNC Platform | OSAI 10 Series (10/365, 10/385, 10/565, 10/585) |
| Board Type | CNC Axes / Interpolation Control PCB |
| Axis Count Variant | 5 (per /5 suffix) |
| Revision | R-5 |
| Axis Output Type | Analog ±10V (family standard) |
| Encoder Feedback | Incremental encoder (family standard) |
| Power Supply | 24 VDC (rack-supplied) |
| Form Factor | PCB / Rack-mount Card |
| Manufacturer | OSAIcnc S.r.l. (formerly OSAI S.p.A.), Ivrea, Italy |
| Application | CNC machine tool axis control — milling, routing, multi-axis machining |
| Status | Discontinued / Legacy (10 Series) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type ±10V analog axis command
Manufacturer OSAI
Part Number OS8020/5 R-5
Controller Platform OSAI 10 Series
Shelf E-1
Model OS8020/5 R-5
MPN OS8020/5 R-5
Type PLC I/O Module
