Product Description

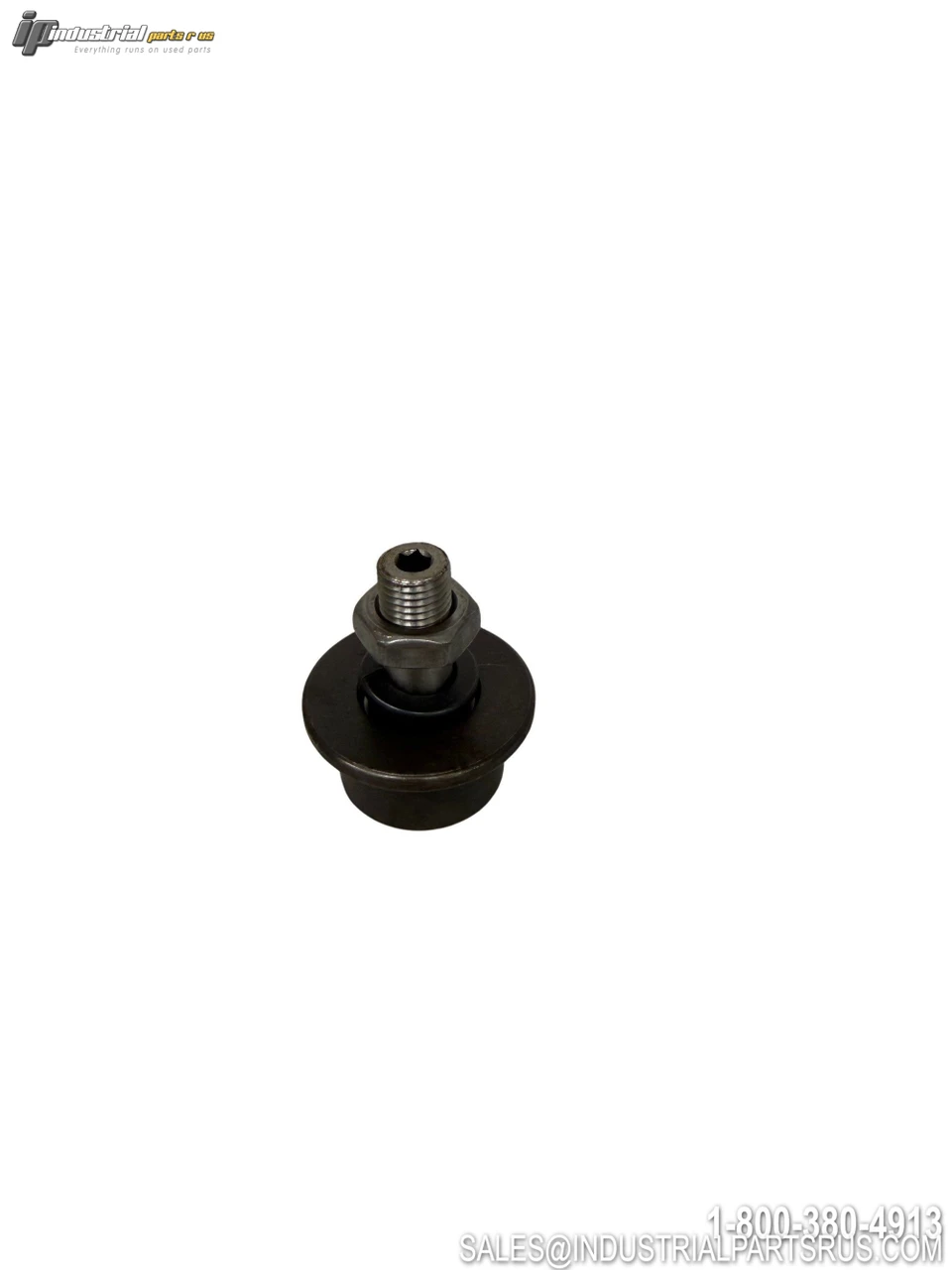

The Osborn 016-97327 is a FLR-1 1/8 flanged cam follower from the Load Runner series, designed for heavy-duty load handling applications. This precision-engineered bearing features a 1.125-inch roller diameter with flanged design for enhanced tracking and stability in industrial machinery and conveyor systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Osborn |
| Model/Part Number | 016-97327 |
| Series | Load Runner |
| Product Type | FLR-1 1/8 |
| EDP Number | 97327 |
| Roller Diameter | 1.125" |
| Roller Width | 0.781" |
| Stud Diameter | 1.500" |
| Thread Length | 0.219" |
| Fine Thread | 0.437" |
| Shoulder Length | 1.000" |
| Shoulder Diameter | 0.500" |
| Thread Size | 7/16-20 |
| Recommended Mounting Hole | 0.500" |
| Mounting Member Thickness Max | 0.031" |
| Mounting Member Thickness Min | 0.438" |
| Flange Diameter | 0.625" |
| Flange Thickness | 0.500" |
| Approximate Weight | 0.3 lbs |
| Bearing Type | Ball Bearing - Double Row |
| Lubrication | Sealed, Not Relubricatable |
| Stud Type | Standard Concentric Stud |
| Face Design | Hex Socket |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686260
Material Chrome Steel
Manufacturer Osborn
Part Number 016-97327
Shelf K-56
Model 016-97327
MPN 016-97327
Type Cam Follower
