Product Description

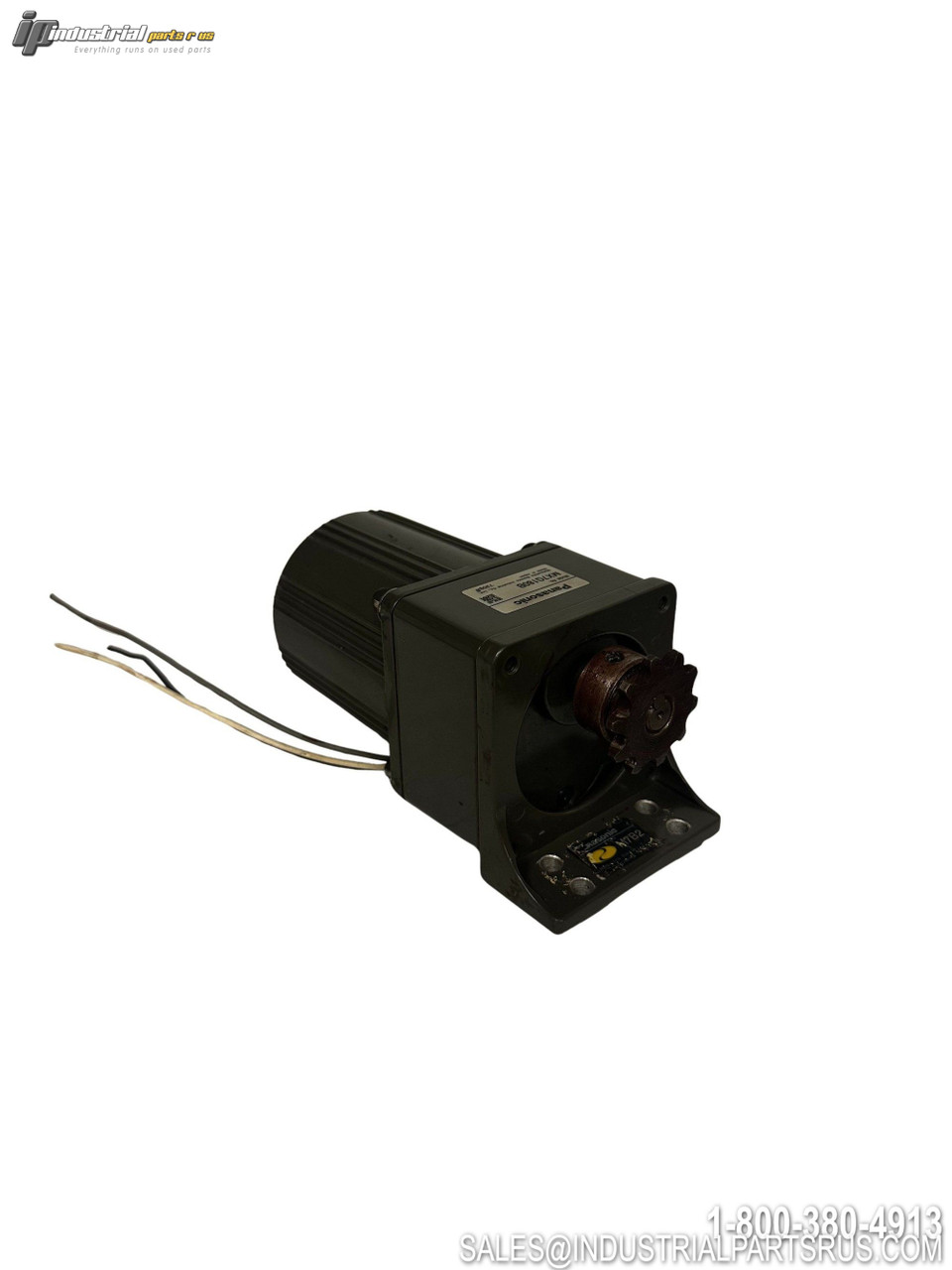

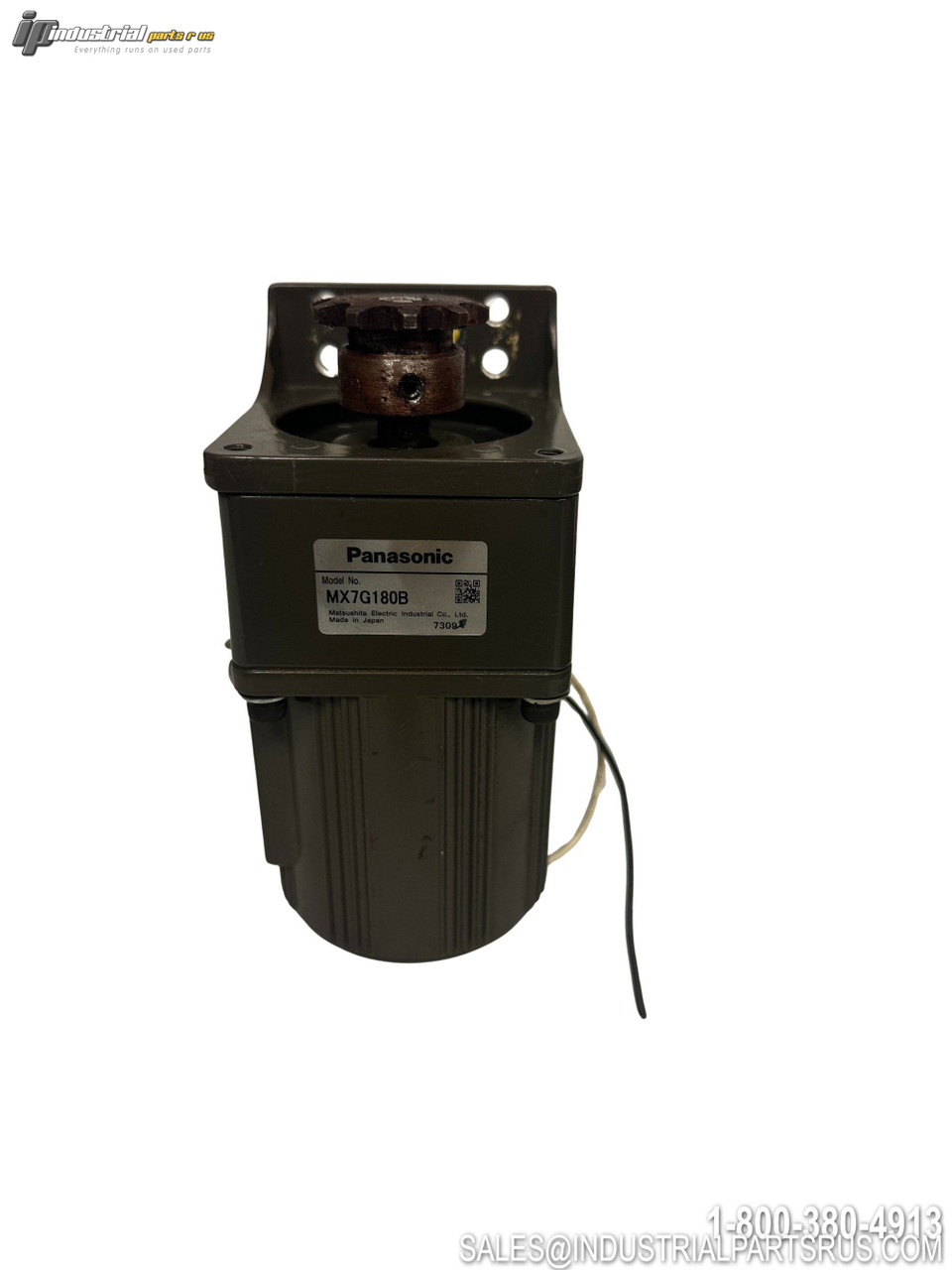

This Panasonic M7RX15G4L is a compact 15-watt single-phase AC induction motor paired with an MX7G180 gearhead. The motor features IP20 protection rating and operates on 100V at 50/60Hz frequency. The integrated MX7G180 gearbox provides a 180:1 reduction ratio with ball bearing construction for reliable operation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Panasonic |
| Model/Part Number | M7RX15G4L w/ MX7G180 |
| Motor Type | AC Induction Motor |
| Power Rating | 15W |
| Phase | Single Phase |
| Voltage | 100V |
| Frequency | 50/60Hz |
| Current | 0.37/0.38 Amp |
| Motor Speed | 1275/1575 RPM |
| Poles | 4 |
| Enclosure Type | IP20 |
| Capacitor | 6 uF |
| Gearbox Model | MX7G180 |
| Reduction Ratio | 180:1 |
| Gearbox Bearing Type | Ball Bearing |
| Country of Origin | Japan |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 0.37/0.38 A
Manufacturer Panasonic
Shaft Diameter 8 mm
Enclosure Type IP20
Part Number M7RX15G4L W/ MX7G180
Shelf H-2
Model M7RX15G4L W/ MX7G180
MPN M7RX15G4L W/ MX7G180
Type AC Motor
