Product Description

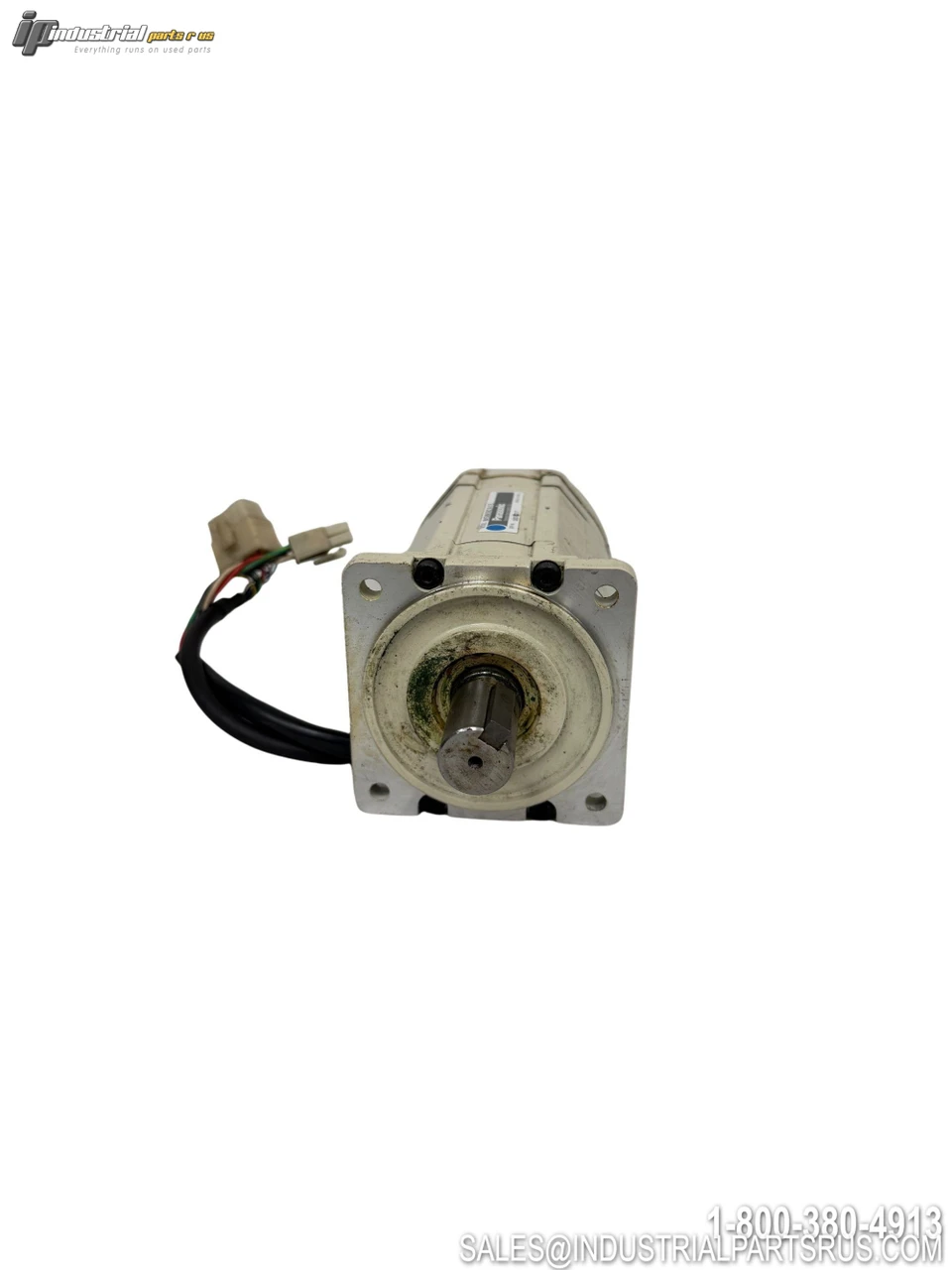

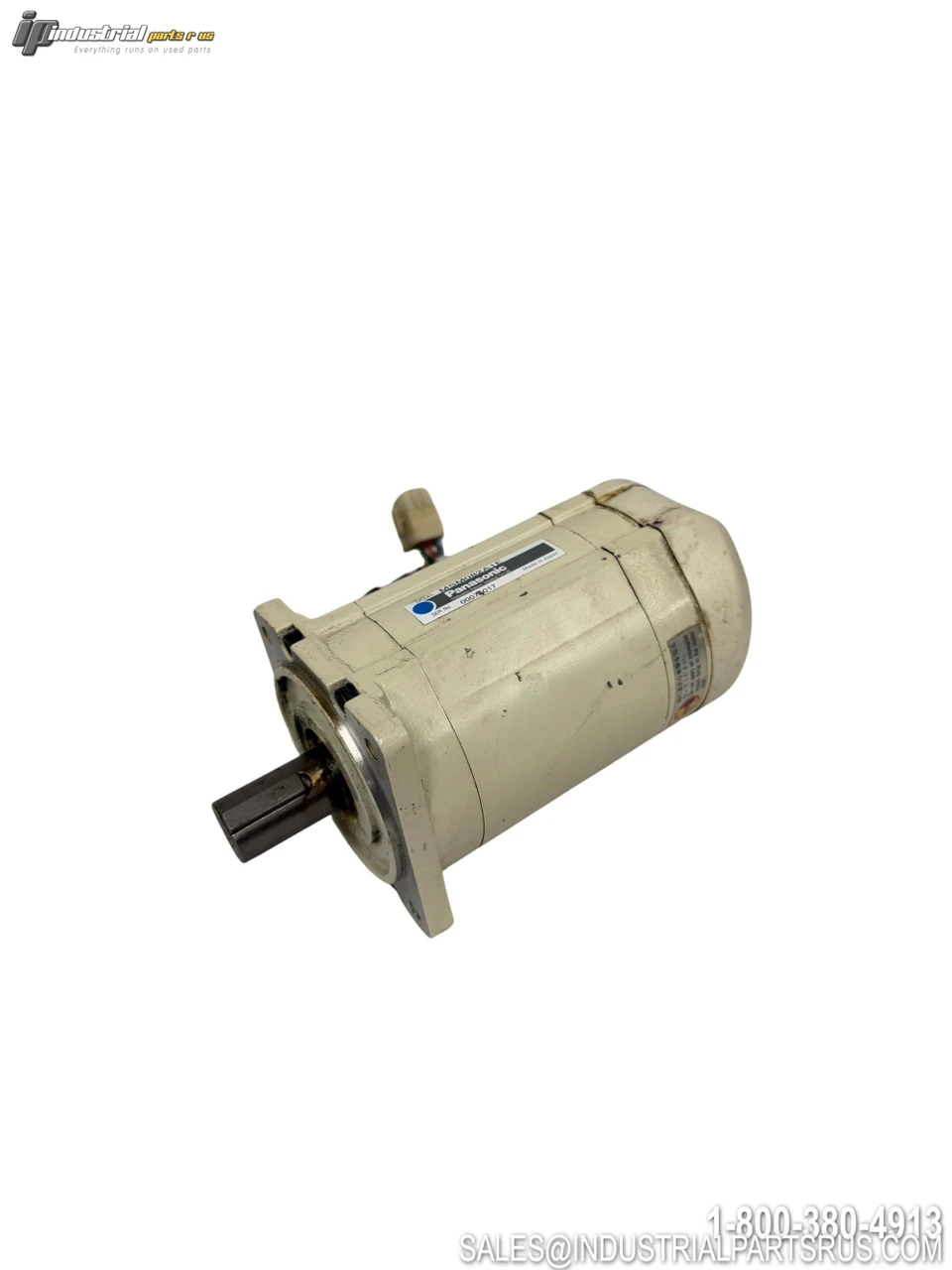

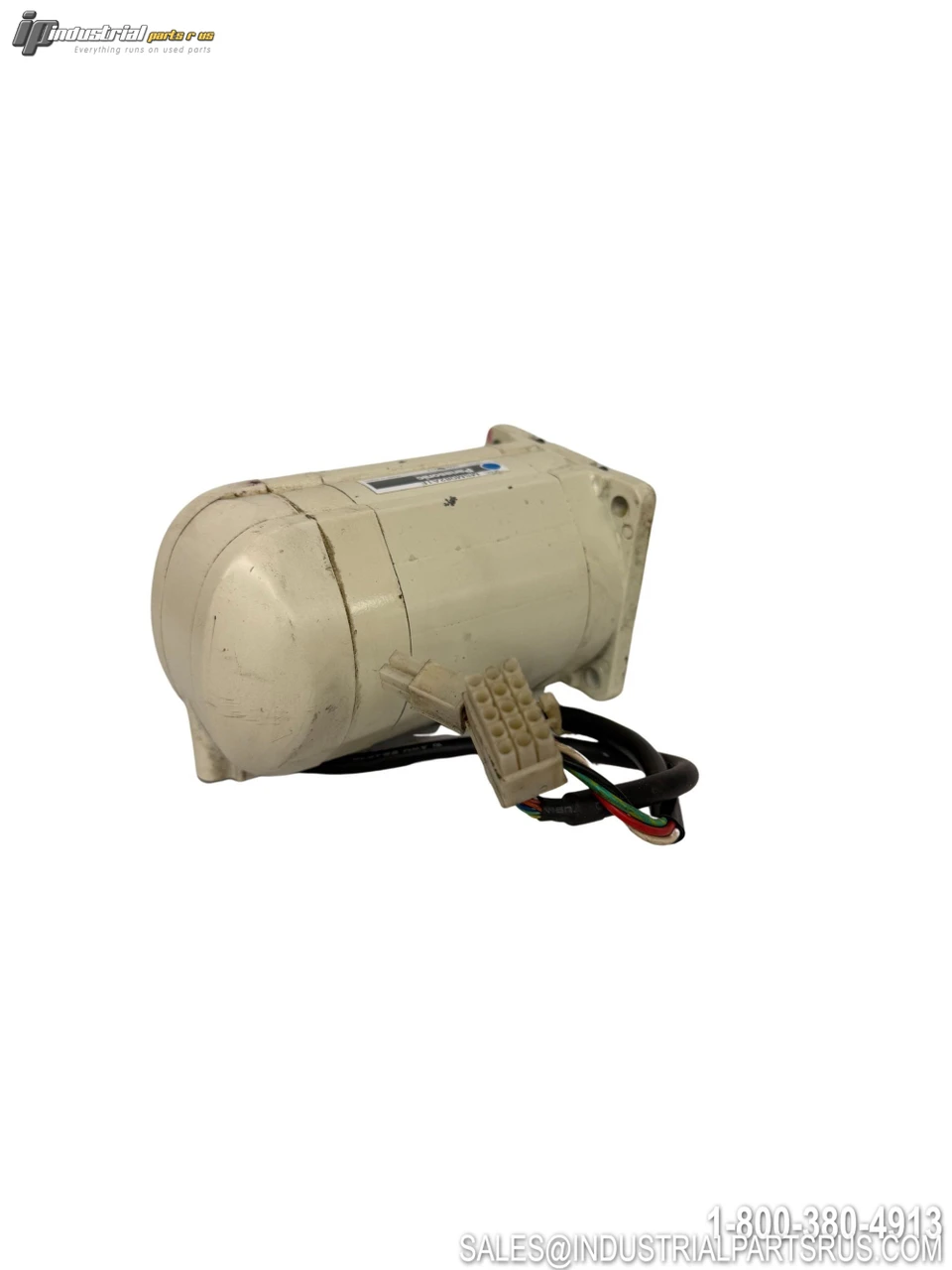

The Panasonic MSM082A1E is a low-inertia AC servo motor from the MINAS A Series, designed for precision motion control in factory automation applications. Rated at 750W with a base speed of 3000 RPM on a 200VAC 3-phase supply, this motor features a 2500 P/r incremental encoder and straight shaft with keyway, making it suitable for demanding positioning tasks in packaging, printing, robotics, and machine tool applications. This product has been discontinued by Panasonic and is available as surplus or used inventory.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Panasonic |
| Model / Part Number | MSM082A1E |
| Product Series | MINAS A Series |
| Motor Type | AC Servo Motor (Low Inertia) |
| Rated Output Power | 750 W (0.75 kW) |
| Rated Speed | 3000 RPM |
| Rated Voltage | 200 VAC (3-Phase) |
| Phase | 3-Phase AC |
| Rated Torque | 2.39 Nm |
| Encoder Type | 2500 P/r Incremental Encoder |
| Insulation Class | F (Max 311°F / 155°C) |
| Enclosure / IP Rating | IP65 |
| Shaft Type | Straight Shaft with Keyway |
| Connection Type | Lead Wire Type |
| Inertia Class | Low Inertia |
| Motor Frame Size | 80 mm sq. (80 mm flange) |
| Product Status | Discontinued |
| RoHS Compliant | Yes (EU RoHS 2011/65/EU & 2015/863/EU) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Stall Torque 2.39 Nm
Manufacturer Panasonic
Shaft Diameter 19 mm (3/4 in)
Enclosure Type IP65
Part Number MSM082A1E
Shelf G-7
Model MSM082A1E
MPN MSM082A1E
Type AC Servo Motor
