Product Description

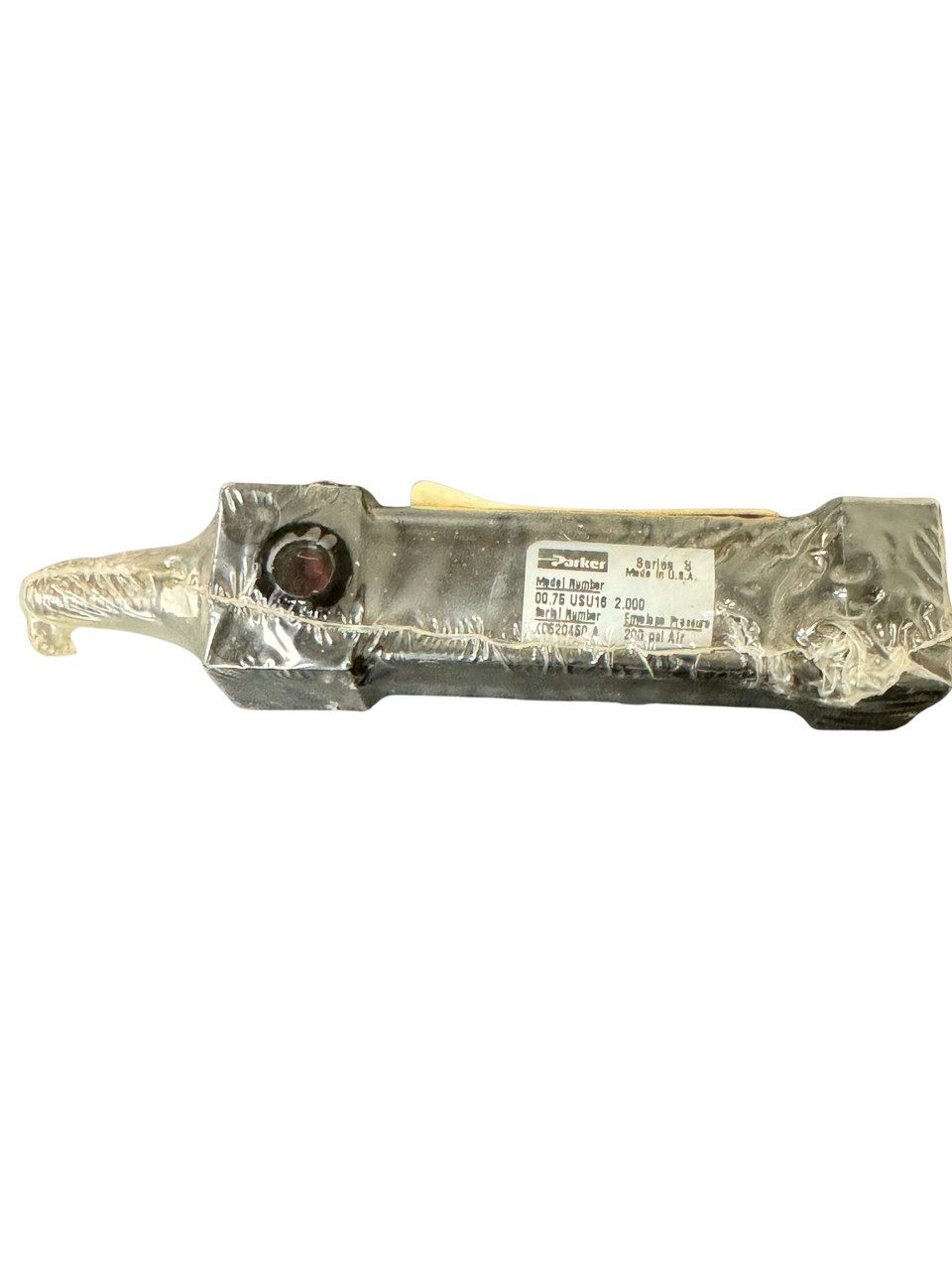

The Parker 00.75USSU16X2.0 is a Series S stainless steel body round-body pneumatic air cylinder featuring a 3/4-inch (0.75") bore diameter and a 2.0-inch stroke length. This switch-ready (SRM-style) variant includes a magnetic piston for use with reed or solid-state position sensing switches, and features end cushioning (X suffix) for smooth deceleration at stroke end. It is designed for universal mounting (nose or rear pivot) with a 1/8" NPTF port, rated at 200 PSI maximum operating pressure, and is constructed with a 304 stainless steel cylinder body, aluminum heads and caps, and a stainless steel piston rod — making it well-suited for corrosive or washdown environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker (Parker Hannifin) |
| Model / Part Number | 00.75USSU16X2.0 |
| Product Series | Series S (Stainless Steel Round Body) |
| Cylinder Type | Round Body, Non-Repairable |
| Cylinder Action | Double Acting |
| Bore Diameter | 3/4 in (0.75 in) |
| Stroke Length | 2.0 in |
| Maximum Operating Pressure | 200 PSI |
| Port Size / Type | 1/8 in NPTF |
| Mounting Style | Universal (Nose or Rear Pivot) |
| Magnetic Piston | Yes (Switch-Ready) |
| Cushion Type | Cushioned (X) |
| Body Material | 304 Stainless Steel |
| Head / Cap Material | Aluminum |
| Piston Rod Material | Stainless Steel |
| Seal Material | Nitrile (Buna-N) |
| Piston Rod Diameter | 1/4 in (0.25 in) |
| Rod Thread Size | 1/4-28 UNF Male |
| Suitable Media | Compressed Air |
| Cylinder Repair | Non-Repairable |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Parker
Part Number 00.75USSU16X2.0
Shelf A-18
Model 00.75USSU16X2.0
MPN 00.75USSU16X2.0
Type Pneumatic Cylinder
