Product Description

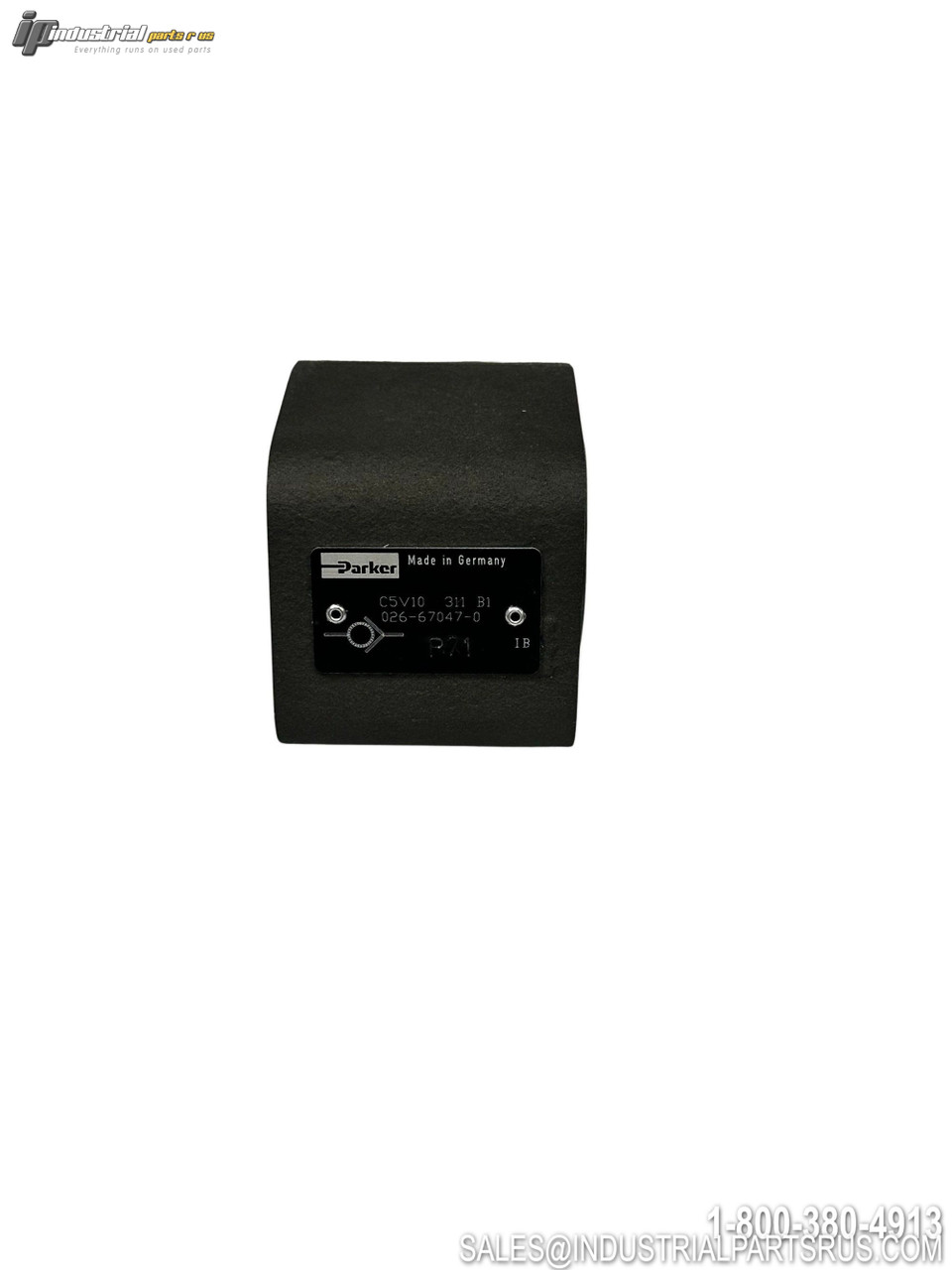

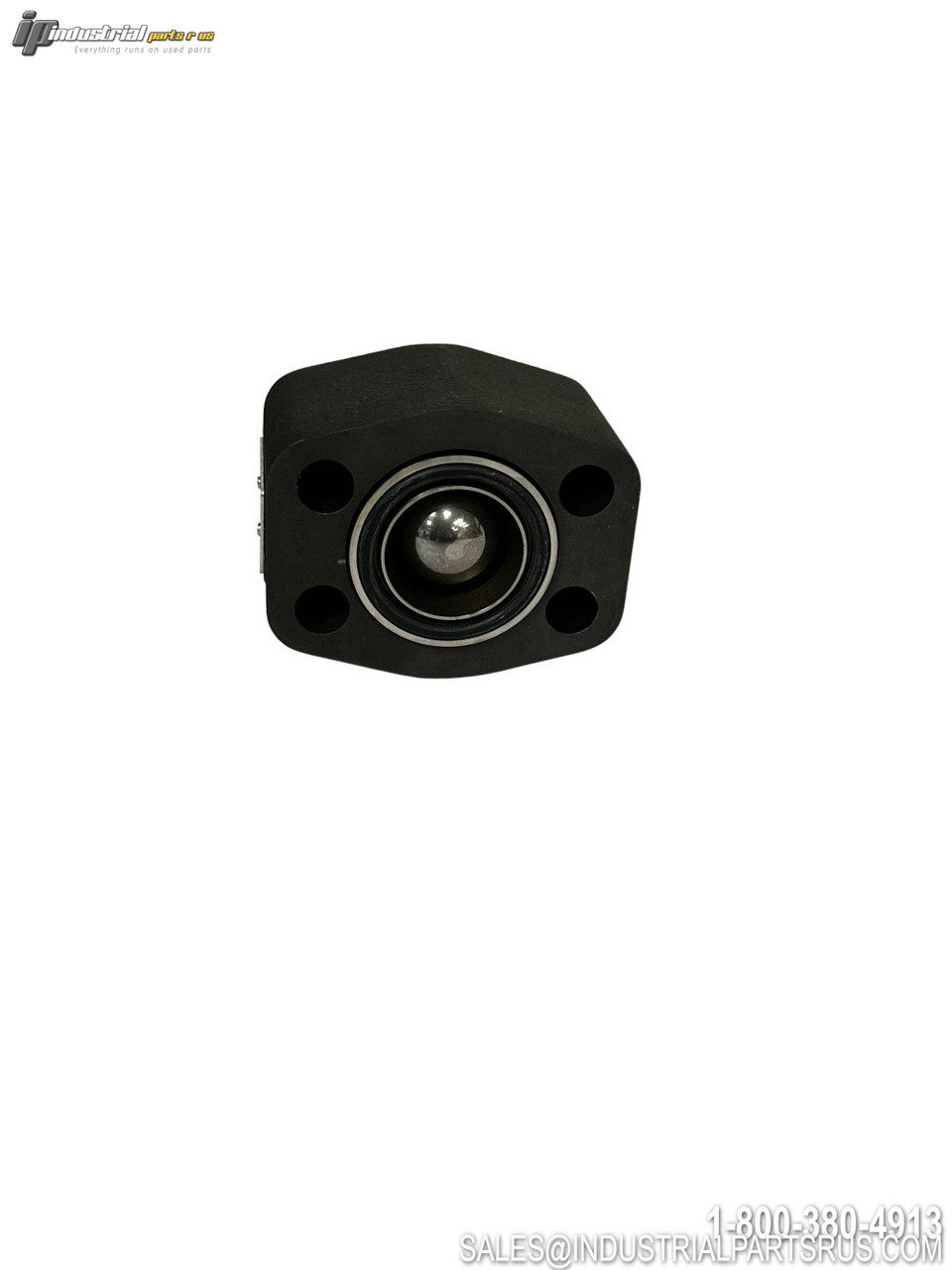

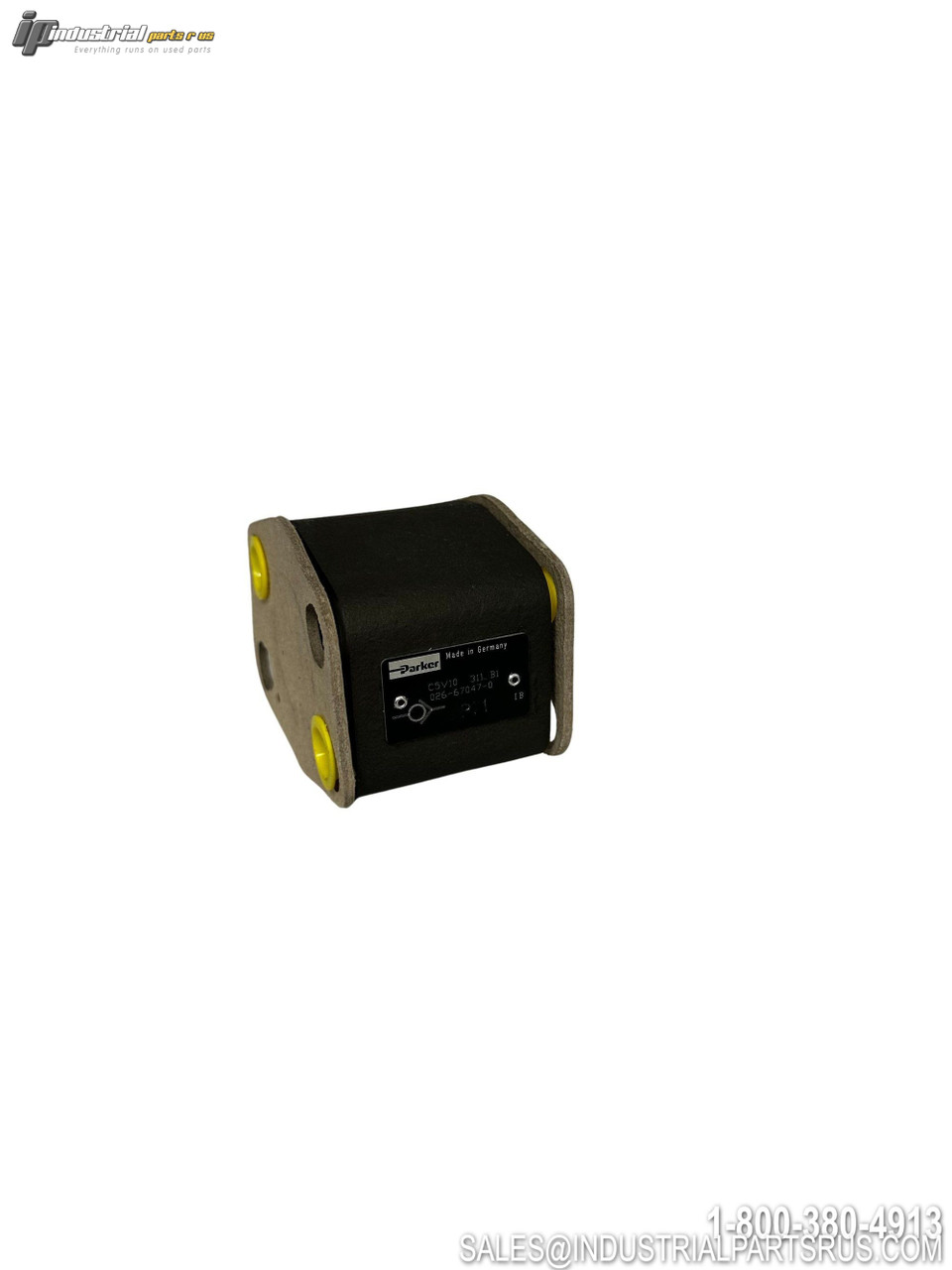

Parker direct operated check valves series C5V ensure free flow in one direction and block the flow in the counter direction while providing high flow rates for optimized performance. They are part of the Parker valve range with SAE flanges which is unique in its variety. The SAE flanges in size SAE61 or SAE62 allow to mount the C5V directly on the outlet flange of pumps or on the inlet flange of actuators to achieve a very compact design. They protect against pressure shocks from the system.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker |
| Model/Part Number | 026-67047-0 |
| Series | C5V |
| Complete Model | C5V10-311B1 |
| Nominal Size | 1 1/4 inch |
| Flange Type | SAE 61 |
| Cracking Pressure | 1.0 bar (15 PSI) |
| Seal Material | Nitrile (NBR) |
| Maximum Operating Pressure SAE 61 | 280 bar |
| Nominal Flow | 400 L/min |
| Weight | 1.3 kg (2.9 lbs) |
| Fluid Temperature Range | -20°C to +70°C |
| Ambient Temperature | -20°C to +60°C |
| Mounting Type | 2-port in-line flange |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Germany
Manufacturer Parker
Part Number 026-67047-0
Shelf B-12
Model 026-67047-0
MPN 026-67047-0
Type Check Valve
