Product Description

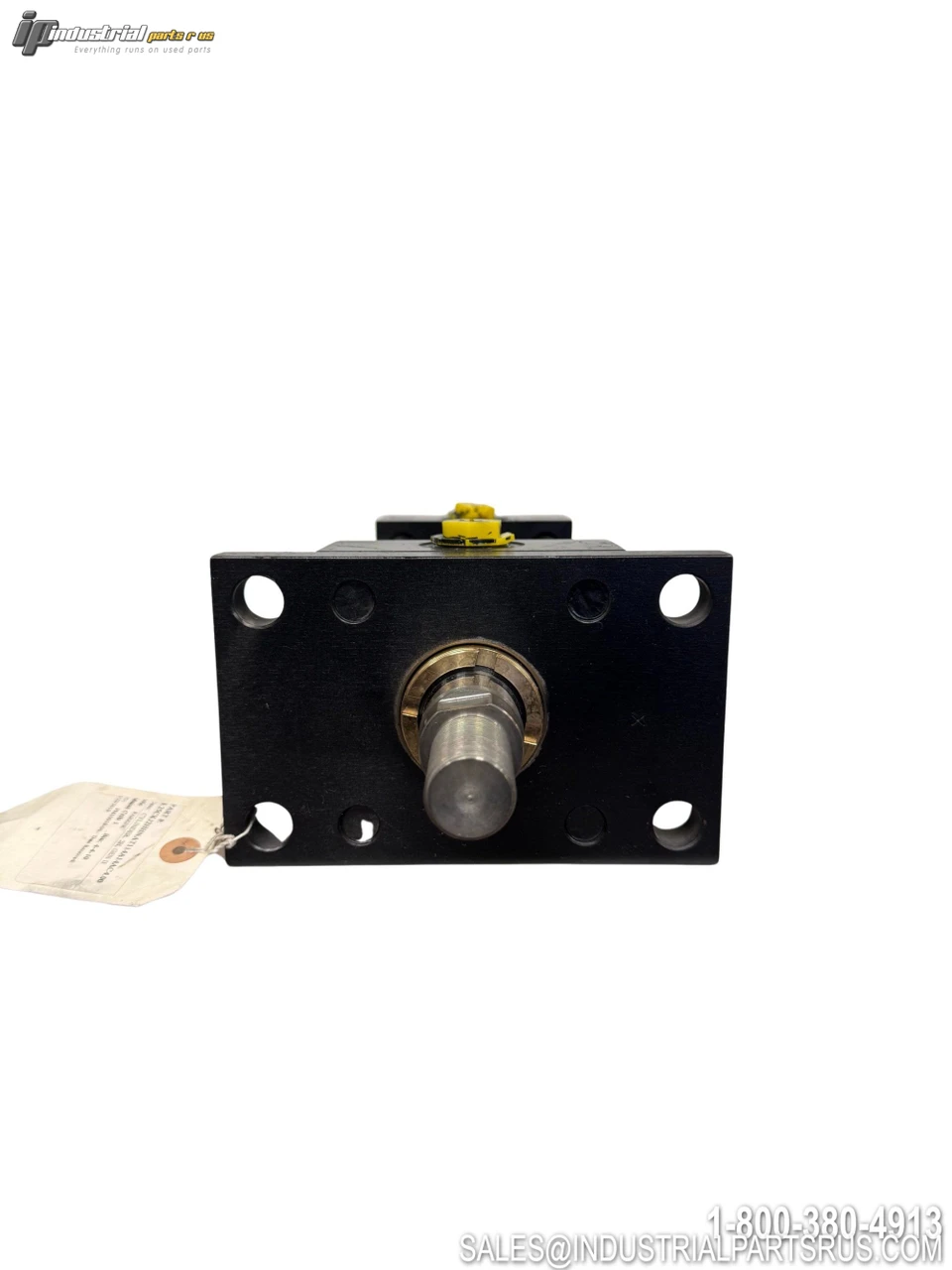

The Parker Hannifin 3.25CKJ2HHNAT114A14AC4.000 is a Series 2H Heavy Duty Hydraulic Cylinder featuring a 3.25-inch bore, 4-inch stroke, and double rod end (Style K) configuration with a combination Head Rectangular Flange (Style J) and Cap Rectangular Flange (Style HH / NFPA ME6) mounting. It includes adjustable floating cushions at both ends of stroke, non-lube construction, and high-temperature rod gland sealing, meeting ANSI/NFPA T3.6.7 standards for heavy-duty industrial fluid power cylinders.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Parker Hannifin |
| Model / Part Number | 3.25CKJ2HHNAT114A14AC4.000 |
| Series | 2H Heavy Duty Hydraulic Tie Rod (Jewel Gland Style) |
| Cylinder Action | Double-Acting |
| Cylinder Type | Tie-Rod Cylinder |
| Suitable Media | Hydraulic Fluid |
| Bore Diameter | 3.25 inches (3-1/4") |
| Stroke Length | 4.000 inches |
| Maximum Pressure | 3000 PSI |
| Rod Configuration | Double Rod End (Style K) |
| Cushion | Both Ends Cushioned (C head end + C cap end) |
| Primary Mounting Style | Style J – Head Rectangular Flange (NFPA MF1) |
| Secondary Mounting Style | Style HH – Cap Rectangular Flange (NFPA ME6) |
| Mounting Combination | J + HH Combination Mount |
| Lubrication | Non-Lube (N) |
| Rod Gland | High Temperature Rod Gland (T) – Jewel Gland Style |
| Piston Seal Type | Hi-Load Piston Seal (Code 1 – standard) |
| Primary Rod End Thread | Style 4 – Small Male (1"-14 UNF, NFPA Style SM) |
| Secondary Rod End Thread | Style 4 – Small Male (1"-14 UNF, NFPA Style SM) |
| Rod Diameter Code | Code 1 (Standard rod diameter for 3.25" bore) |
| Operating Pressure | 3000 PSI Nominal |
| Construction | Square Head, Tie Rod Design |
| Fluid Type | Hydraulic Oil |
| Operating Temperature | -10°F to +165°F (standard) |
| Standards Compliance | ANSI/NFPA T3.6.7R3-2009 |
| Cylinder Body Material | Steel (Hard Chrome-Plated Bore) |
| Manufacturer | Parker Hannifin Corporation |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture USA
Hole Diameter Code 1 (Standard)
Material Steel
Mount MF1
Max. PSI 3000
Diameter Code 1 (Standard)
Ratio Double Rod
Manufacturer Parker
Part Number 3.25CKJ2HHNAT114A14AC4.000
Series 2H Heavy Duty Hydraulic Tie Rod
Shelf B-16
Bore Diameter 3.25 in
Model 3.25CKJ2HHNAT114A14AC4.000
MPN 3.25CKJ2HHNAT114A14AC4.000
Type Hydraulic Cylinder
