Product Description

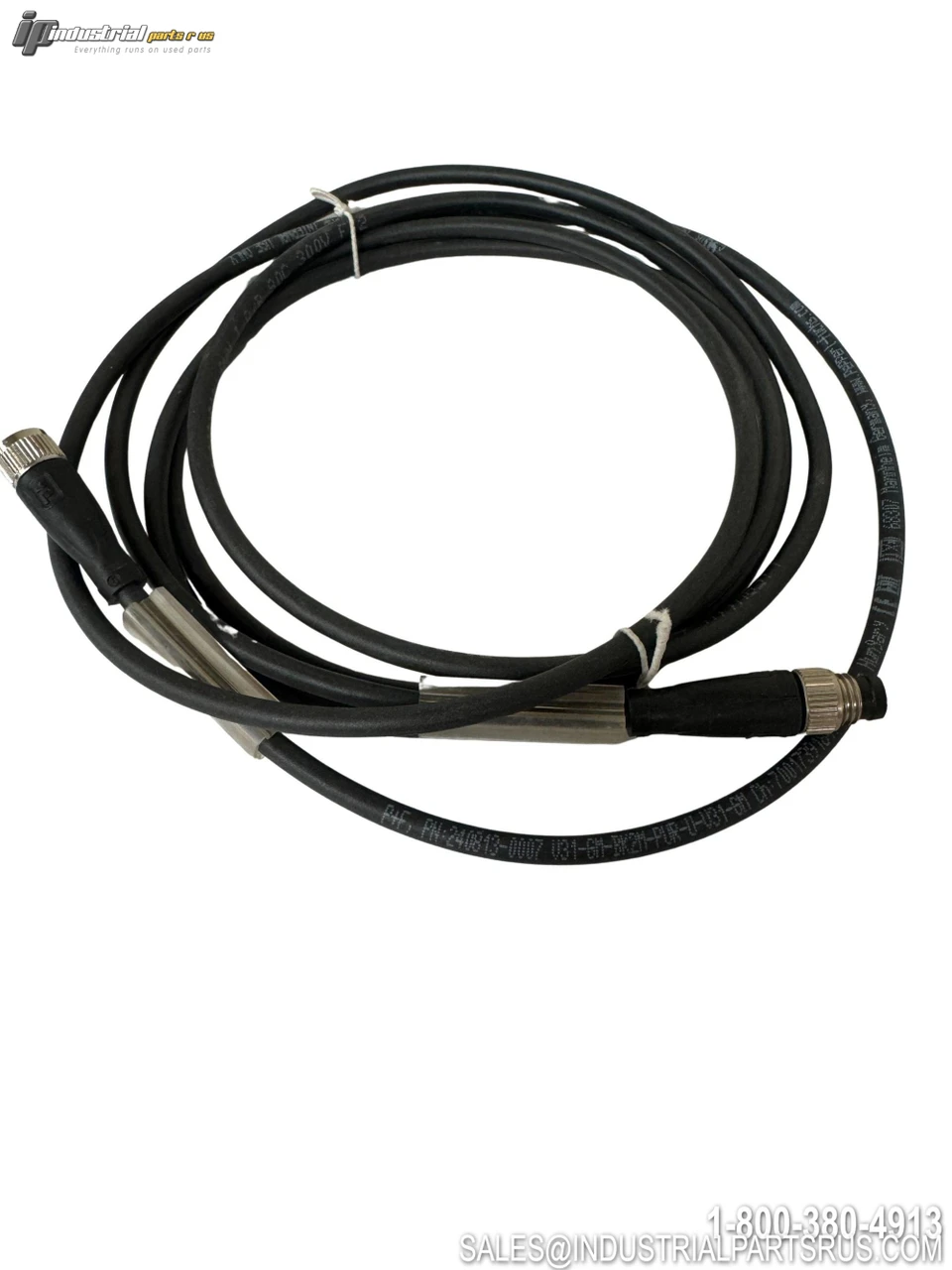

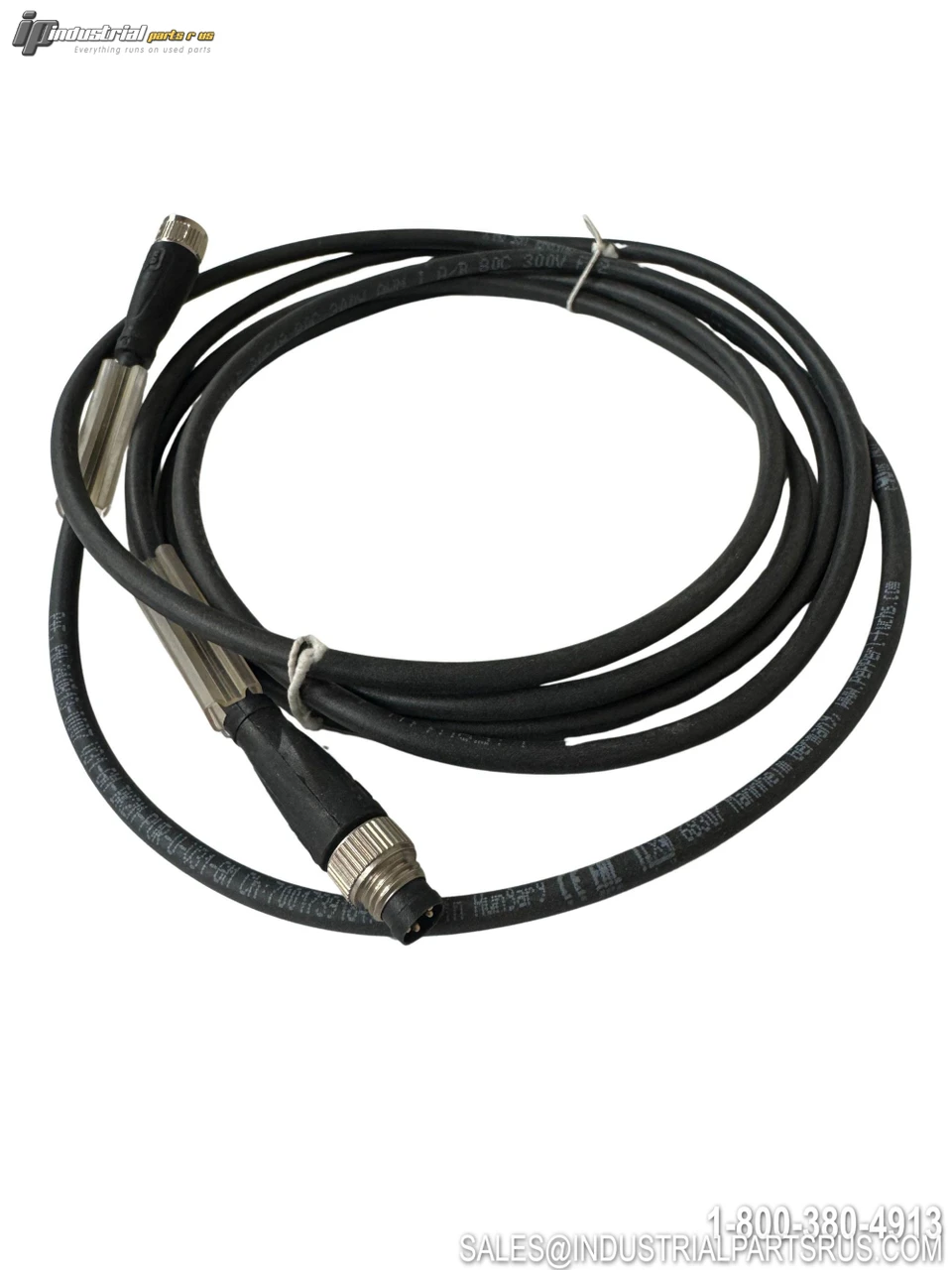

The Pepperl+Fuchs V31-GM-BK2M-PUR-U-V31-GM (P/N 240813-0007) is a double-ended sensor connection cordset featuring M8 female socket (straight) to M8 male plug (straight), A-coded, 4-pin configuration with a 2-meter black Polyurethane (PUR) cable. It is UL-listed for use in the USA and Canada and is designed for demanding industrial environments including drag chain and robotic/torsion-resistant applications. The cordset provides IP66/IP68 protection and is halogen-free, UV-resistant, and resistant to microbes, hydrolysis, oils, and cooling lubricants.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model / Part Number | 240813-0007 |
| Catalog Number (Model Name) | V31-GM-BK2M-PUR-U-V31-GM |
| Product Type | Double-Ended Sensor Cordset (Connection Cable) |
| Connector Type – End 1 | M8 Female Socket, Straight |
| Connector Type – End 2 | M8 Male Plug, Straight |
| Coding | A-coded |
| Number of Pins | 4-pin |
| Cable Length | 2 m (6.56 ft) |
| Cable Material / Jacket | PUR (Polyurethane) – Black |
| Cable Color | Black |
| Core Insulation | PP (Polypropylene) |
| Conductor Material | Bare Copper (Cu) |
| Degree of Protection (IP Rating) | IP66 / IP68 |
| Rated Voltage | 30 VAC / VDC |
| Maximum Permissible Operating Current | 4 A |
| Approvals / Certifications | UL Listed (USA & Canada), RoHS Compliant |
| UL AWM Style | AWM Style 20549 AWM I/II A/B 80°C 300V FT2 |
| Flammability Rating | FT2 |
| Drag Chain Suitable | Yes |
| Torsion Resistant (Robotic) | Yes |
| UV Resistance | Yes |
| Oil Resistance | Yes |
| Microbial / Hydrolysis Resistance | Yes |
| Halogen-Free | Yes |
| Paint Wetting Interference Substances | Free of PWIS |
| Operating Temperature – Connector | -40 to +90 °C (-40 to +194 °F) |
| Operating Temperature – Cable (Fixed Install) | -40 to +80 °C (-40 to +176 °F) |
| Operating Temperature – Cable (Flexing) | -20 to +80 °C (-4 to +176 °F) |
| Pollution Degree | 3 |
| Cable Marking | 2x PUR transparent sleeve, fixed to cable |
| Thread Size | M8 x 1 |
| RoHS Compliant | Yes (RoHS Directive 2011/65/EU) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Pepperl+Fuchs
Enclosure Type IP66 / IP68
Part Number 240813-0007
Shelf K-27
Model 240813-0007
MPN 240813-0007
Type Sensor Cordset
