Product Description

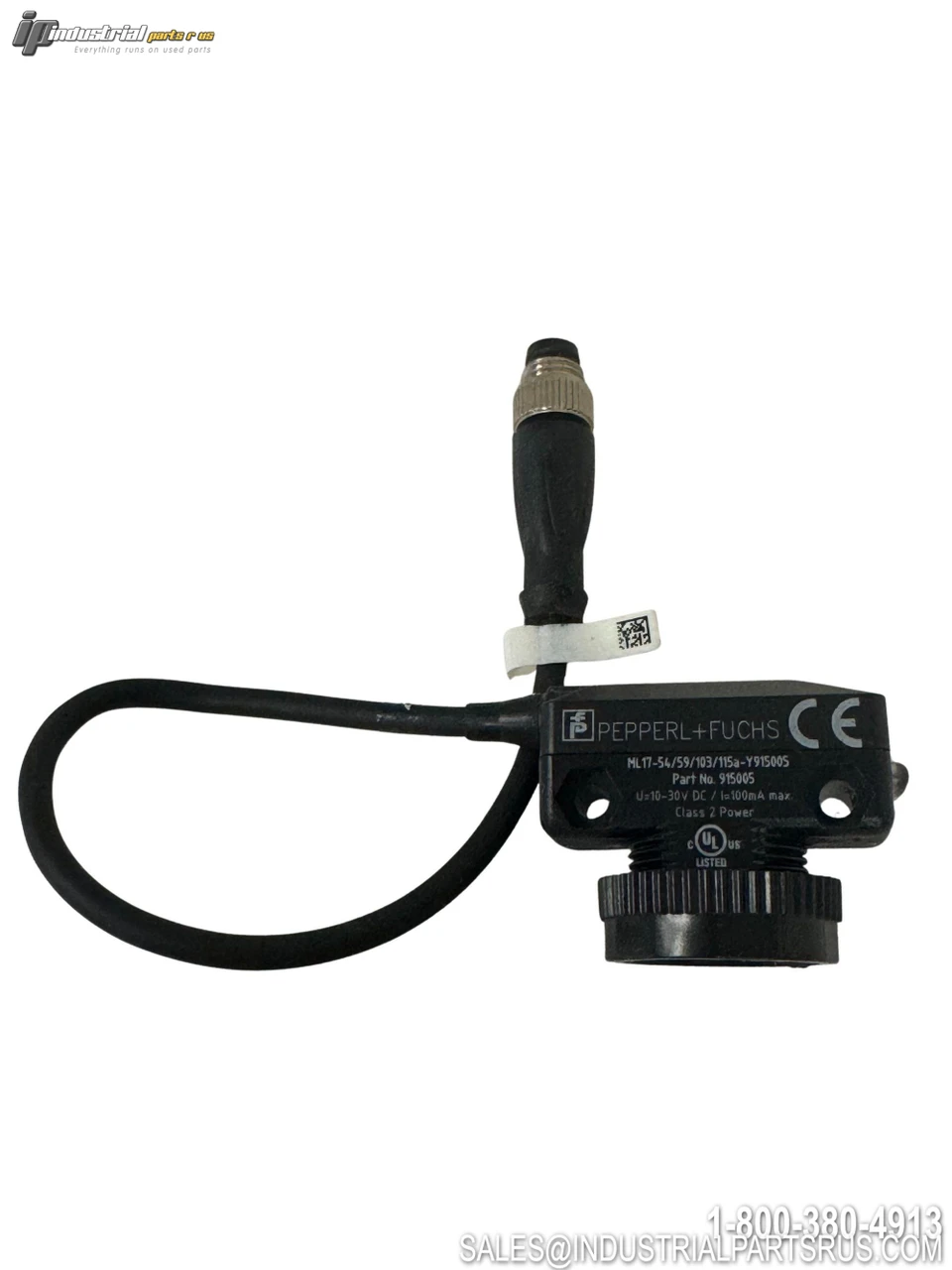

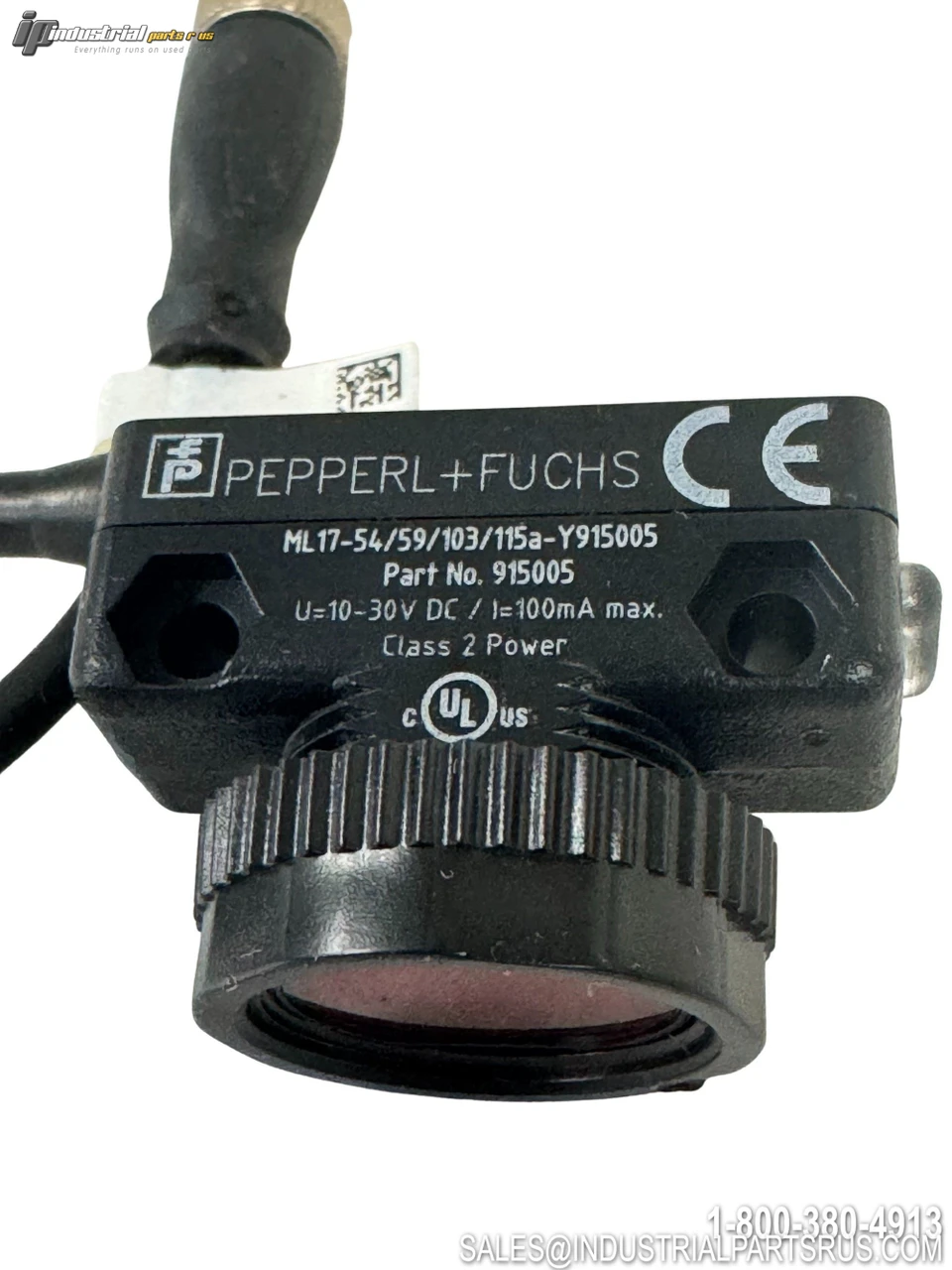

The Pepperl+Fuchs ML17-54/59/103/115a-Y915005 is a compact retroreflective photoelectric sensor from the ML17 Tru-Vue series, featuring a polarization filter for reliable detection of shiny and reflective objects. This sensor offers a sensing range up to 3.5 meters, a single NPN output stage, and is designed for tamper-proof operation with no user-adjustable sensitivity. The "-Y915005" suffix denotes a Pepperl+Fuchs customer-specific or special variant designation applied to the ML17-54/59/103/115a base platform, sharing identical core electrical and mechanical specifications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model / Part Number | ML17-54/59/103/115a-Y915005 |
| Series | ML17 (Tru-Vue) |
| Sensor Type | Retroreflective (with Polarization Filter) |
| Sensing Range | 0 – 3.5 m (3500 mm) |
| Threshold Detection Range | 5 m |
| Reference Reflector | FE-RR1 |
| Reflector Distance | 50 – 3500 mm |
| Supply Voltage | 10 – 30 V DC |
| Output Current (max) | 100 mA |
| Output Type | Single NPN (Dark-ON / Light-ON) |
| Switching Frequency | 500 Hz |
| Response Time | ≤ 1 ms |
| Voltage Drop (Ud) | ≤ 2.5 V DC |
| Light Source | Visible Red LED, 626 nm |
| Sensitivity Adjustment | None (Tamper-proof / Fixed) |
| Connection Type | 150 mm PVC cable with 4-pin M8 connector (quick disconnect) |
| Degree of Protection | IP67 |
| Housing Material | ABS |
| Optical Face Material | Acrylic |
| Housing Shape | Rectangular (Block) |
| Dimensions (H × W × L) | 34.5 mm × 15 mm × 29.3 mm |
| Height | 34.5 mm |
| Width | 15 mm |
| Length | 29.3 mm |
| Mass | approx. 40 g (1.4 oz) |
| Mounting Type | Front M18 threaded / Side mounting holes (M4 screws) / Quick clamp |
| Indicator – Signal Display | Yellow LED |
| Indicator – Operating Display | Green LED |
| Ambient Temperature | -20 … 55 °C (-4 … 131 °F) |
| Product Standard | EN 60947-5-2 |
| Approvals | cULus |
| Variant Suffix | Y915005 (Customer/special order variant of ML17-54/59/103/115a base) |
