Product Description

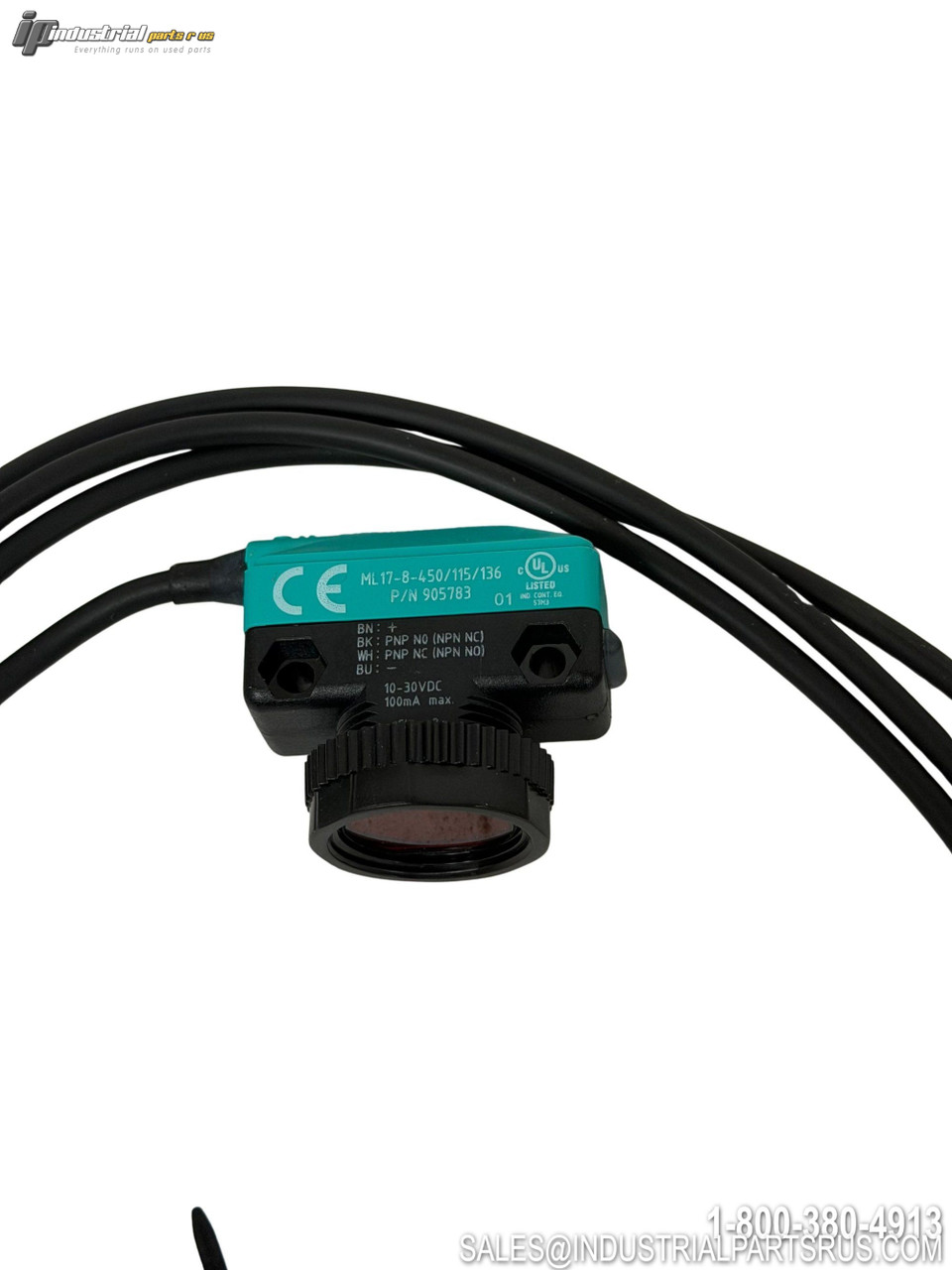

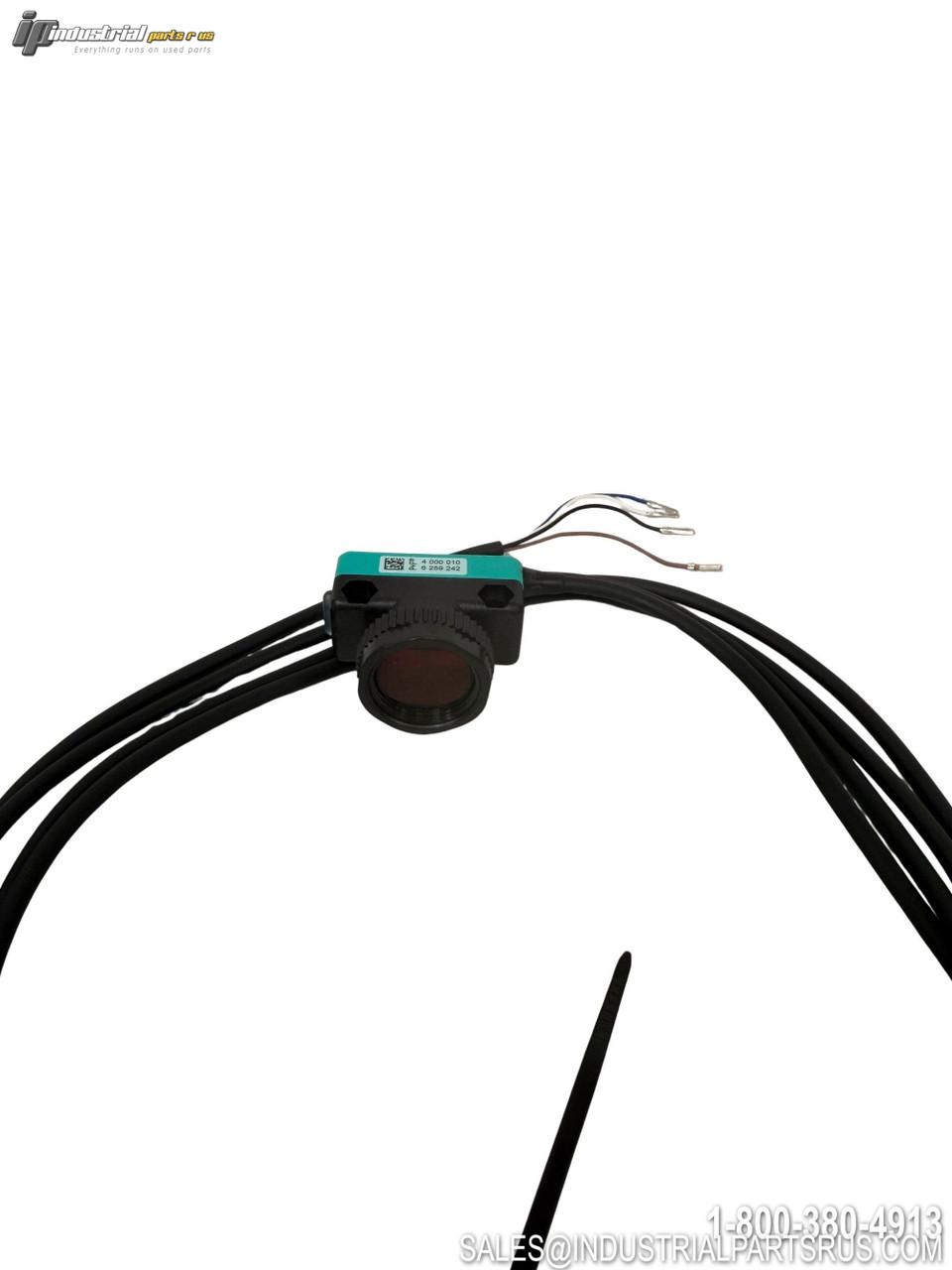

The Pepperl+Fuchs ML17-8-450/115/136 is a Tru-Vue series diffuse mode photoelectric sensor designed for industrial automation applications. This compact sensor features adjustable sensing range from 10-450mm with infrared LED light source and 4-in-1 output configuration providing NPN or PNP normally open/closed outputs.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model/Part Number | ML17-8-450/115/136 |
| Series | ML17 Tru-Vue |
| Sensor Type | Diffuse Mode |
| Sensing Range | 10-450mm |
| Operating Distance | 0.394" ~ 17.717" (10mm ~ 450mm) |
| Light Source | Infrared LED 950nm |
| Supply Voltage | 10-30 VDC |
| Output Type | 4-in-1 Push-Pull (PNP/NPN) |
| Output Configuration | Light-On/Dark-On |
| Current Type | DC |
| Response Time | ≤1.0ms |
| Switching Frequency | 500 Hz |
| Connection Type | 2m PVC Cable |
| Termination Type | Cable |
| Cable Length | 78.74" (2m) |
| Dimensions | 29.3mm L × 15mm W × 34.5mm H |
| Threading | M18 Threaded Snout |
| Mounting Type | Threaded |
| Housing Material | ABS/Polycarbonate |
| Weight | 1.4 oz (40g) |
| IP Rating | IP67 |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Sensitivity Adjustment | Yes (single-turn potentiometer) |
| Reference Target | 100 x 100mm white test card |
| Current Consumption | < 25 mA |
| Time Delay | ≤ 200ms |
| Manufacturer P/N | 905783 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Diffuse
Operating Distance 0.394" ~ 17.717" (10mm ~ 450mm)
Full Load Amps < 25 mA
Manufacturer Pepperl+Fuchs
Part Number ML17-8-450/115/136
Shelf K-61 Tub 4
Model ML17-8-450/115/136
MPN ML17-8-450/115/136
Type Photoelectric Sensor
