Product Description

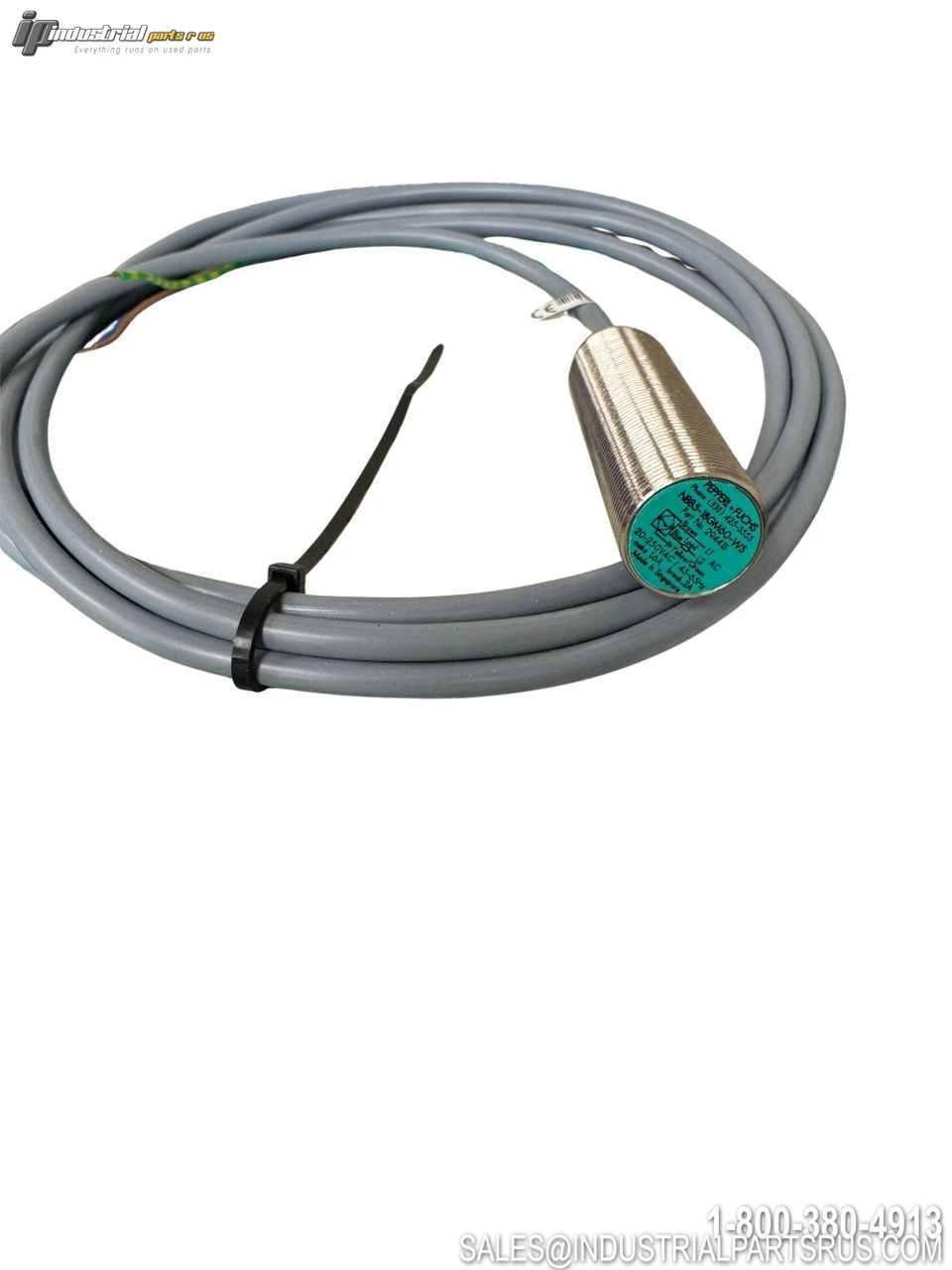

The Pepperl+Fuchs NBB5-18GM60-WS is a Basic series inductive proximity sensor housed in a standard M18 cylindrical threaded body. It features a 5 mm flush (embeddable/shielded) sensing range with a 2-wire AC normally open (NO) output, making it well-suited for AC-powered control systems without the need for a separate power supply wire. The sensor is rated IP67 for dust and water ingress protection and is supplied with a 2-meter PVC cable with wire-end ferrules.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model / Part Number | NBB5-18GM60-WS |
| Product Series | NBB (Basic Series) |
| Sensor Type | Inductive Proximity Sensor |
| Switching Function | Normally Open (NO) |
| Output Type | 2-Wire AC |
| Rated Sensing Distance (Sn) | 5 mm |
| Actual Operating Distance (Sr) | 4.5 – 5.5 mm (typ. 5 mm) |
| Assured Operating Distance (Sa) | 0 – 4.05 mm |
| Installation / Mounting | Flush (Shielded / Embeddable) |
| Operating Voltage (UB) | 20 – 253 VAC, 45–65 Hz |
| Operating Current | 5 – 200 mA |
| Momentary Current | 0 – 1600 mA (20 ms, 0.1 Hz) |
| Switching Frequency (f) | 0 – 20 Hz |
| Hysteresis (H) | typ. 6% |
| Voltage Drop (Ud) | <5 V (IL >50 mA); <8 V (IL <50 mA) |
| Reverse Polarity Protection | Reverse polarity tolerant |
| Thread Size | M18 x 1 |
| Body Shape | Cylindrical Threaded |
| Overall Length | 60 mm |
| Diameter | 18 mm |
| Housing Material | Brass, Nickel-Plated |
| Sensing Face Material | PBT |
| Reduction Factor – Aluminum (rAl) | 0.2 |
| Reduction Factor – Copper (rCu) | 0.2 |
| Reduction Factor – Stainless 304 (r304) | 0.6 |
| Connection Type | Cable (Pre-Wired) |
| Cable Length | 2 m |
| Cable Material | PVC, Grey |
| Cable Diameter | 4.6 mm ± 0.2 mm |
| Number of Cores | 3 |
| Core Cross Section | 0.34 mm² |
| Bending Radius | >10 × cable diameter |
| Wire End Ferrules | Yes |
| Degree of Protection | IP67 |
| Ambient Temperature | -25 to +70 °C (-13 to +158 °F) |
| Switching State Indicator | LED, Yellow |
| Operating Voltage Indicator | LED, Green |
| Safety Fuse Recommendation | ≤0.8 A quick-blow (IEC 60127-2 Sheet 1) |
| Standards Compliance | IEC/EN 60947-5-2 |
| Certifications | UL Listed, CSA Certified, CCC |
| Compatible Accessories | EXG-18 (mounting bracket), BF 18 (mounting flange, 18 mm) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type 2-Wire NO (Normally Open)
Sensor Type Inductive
Operating Distance 4.5 – 5.5 mm (typ. 5 mm)
Full Load Amps 5 – 200 mA
Manufacturer Pepperl+Fuchs
Enclosure Type IP67
Part Number NBB5-18GM60-WS
Shelf K-16
Model NBB5-18GM60-WS
MPN NBB5-18GM60-WS
Type Inductive Proximity Sensor
