Product Description

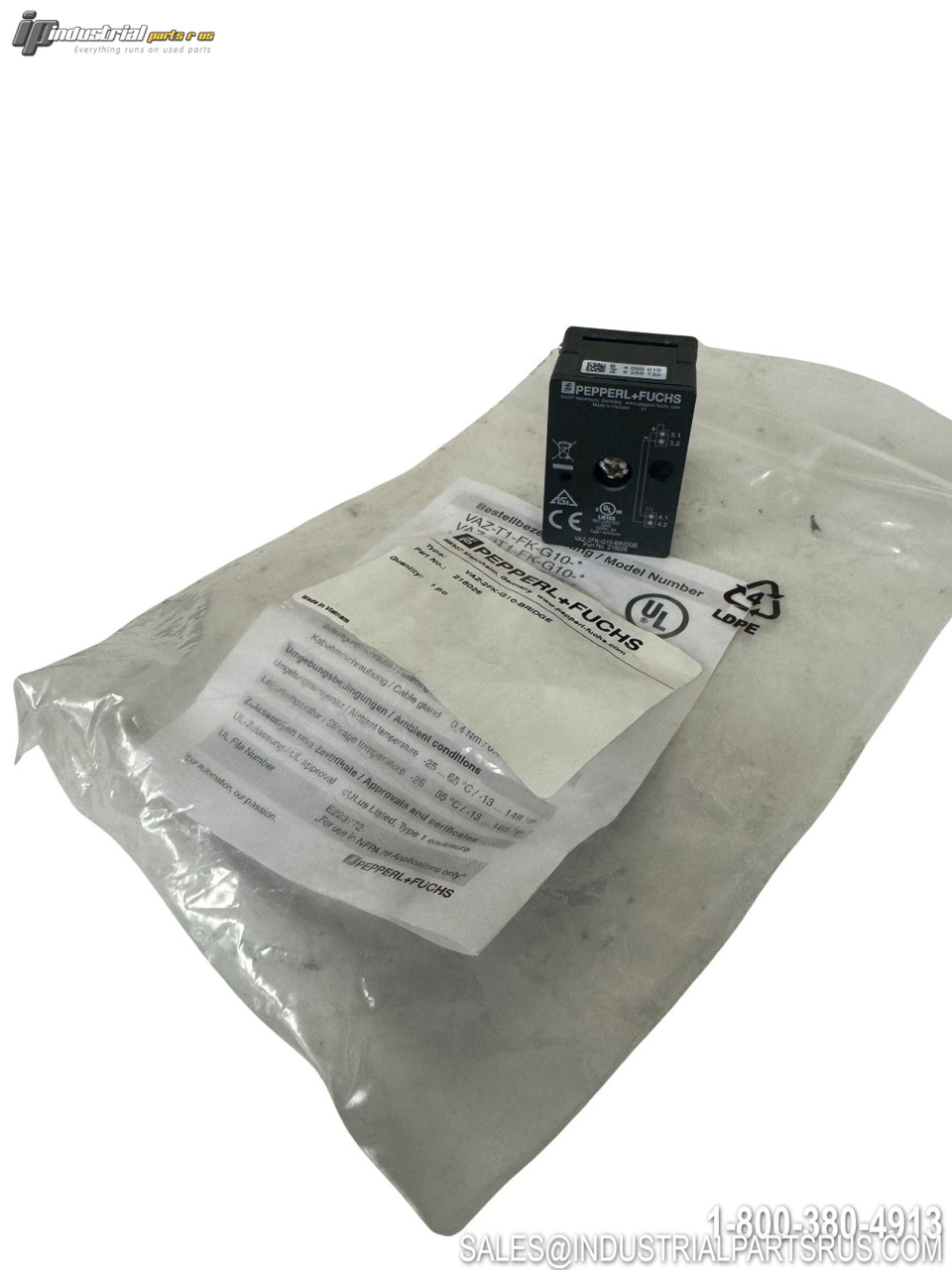

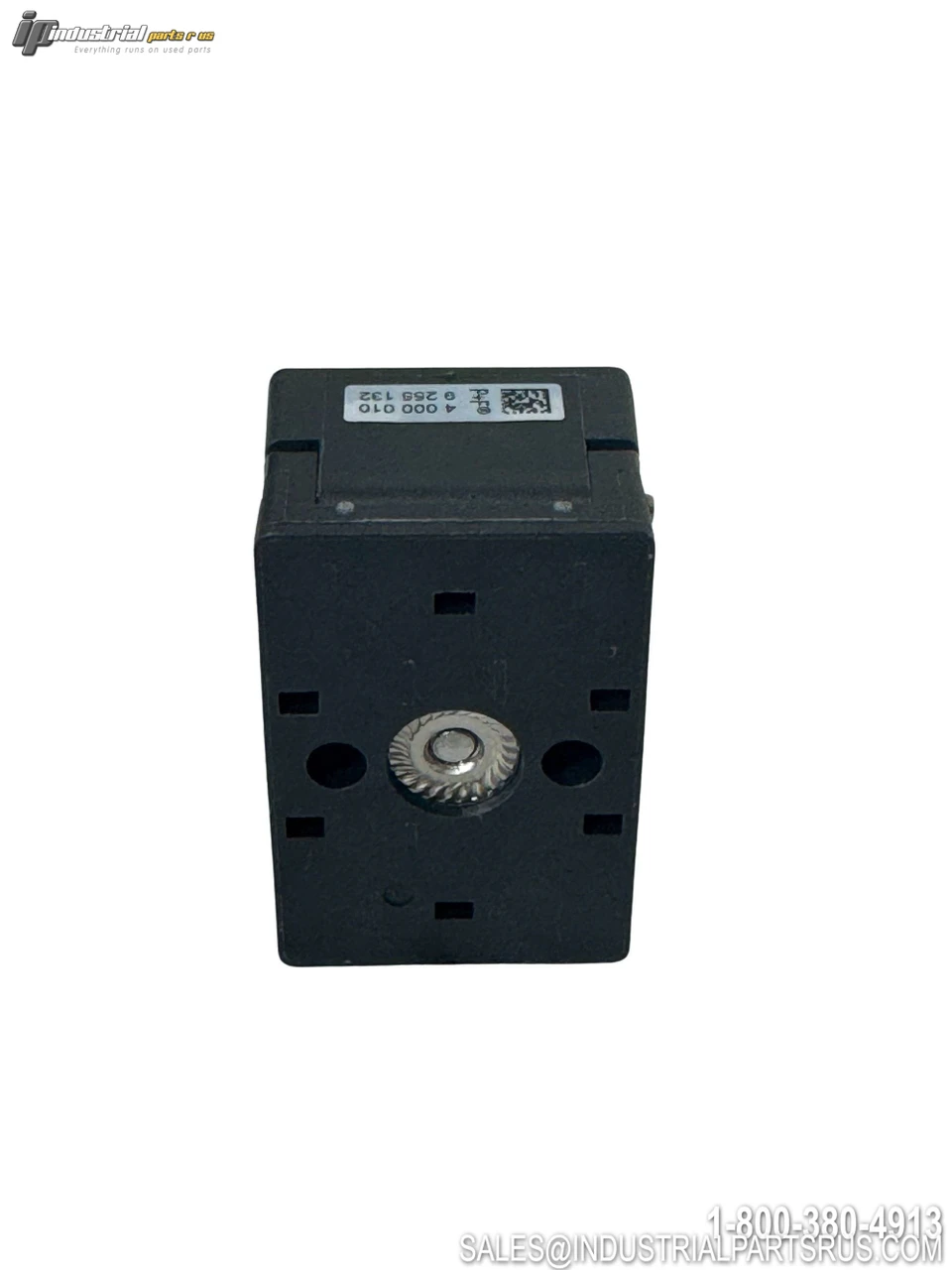

The Pepperl+Fuchs VAZ-2FK-G10-BRIDGE is an AS-Interface (ASi) splitter box featuring a G10 flat cable to flat cable configuration. It is designed for use with industrial AS-Interface sensor networks, providing a compact bridge connection point in a one-piece PBT/PC housing with gold-plated and machined contacts for reliable, long-life connectivity. The unit features an IP68/IP69K ingress protection rating, high current capacity, and simple snap-mounting for fast installation in demanding industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model / Part Number | VAZ-2FK-G10-BRIDGE |
| Supplier Part Number | 216026 |
| Product Type | AS-Interface Splitter Box (Bridge) |
| Series | VAZ |
| Connection Type | Flat Cable Terminals (G10, Flat Cable to Flat Cable) |
| For Use With | AS-Interface Industrial Sensor Networks |
| Voltage Rating | 32 V AC |
| Current Rating | 8 A |
| Max Current Loading Capacity | 12 A (with 2.5 mm² wire cross-section) |
| Number of Ports | 2 |
| Enclosure / Protection Class | IP67 / IP68 / IP69K (IP68/IP69K with VAZ-FK-S-* flat cable) |
| Protection Class (Electrical) | Class III |
| Overvoltage Category | Category III |
| Pollution Degree | 3 |
| Housing Material | PBT/PC (One-piece) |
| Contact Material | CuSn/Au (Gold-plated and machined) |
| Mounting Screw Material | Stainless Steel 1.4305 / AISI 303 |
| Tightening Torque (Fastening Screws) | 1.65 Nm |
| Dimensions (L x W x H) | 40.5 mm x 27.7 mm x 22 mm |
| Operating Temperature | -25°C to +75°C (-13°F to +167°F) |
| UL File Number | E223772 (For use in NFPA 79 Applications only) |
| RoHS Compliant | Yes |
| UNSPSC Code | 32151601 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Pepperl+Fuchs
Enclosure Type IP67 / IP68 / IP69K
Part Number VAZ-2FK-G10-BRIDGE
Controller Platform AS-Interface (ASi)
Shelf Q-5
Model VAZ-2FK-G10-BRIDGE
MPN VAZ-2FK-G10-BRIDGE
Type Communication Module
