Product Description

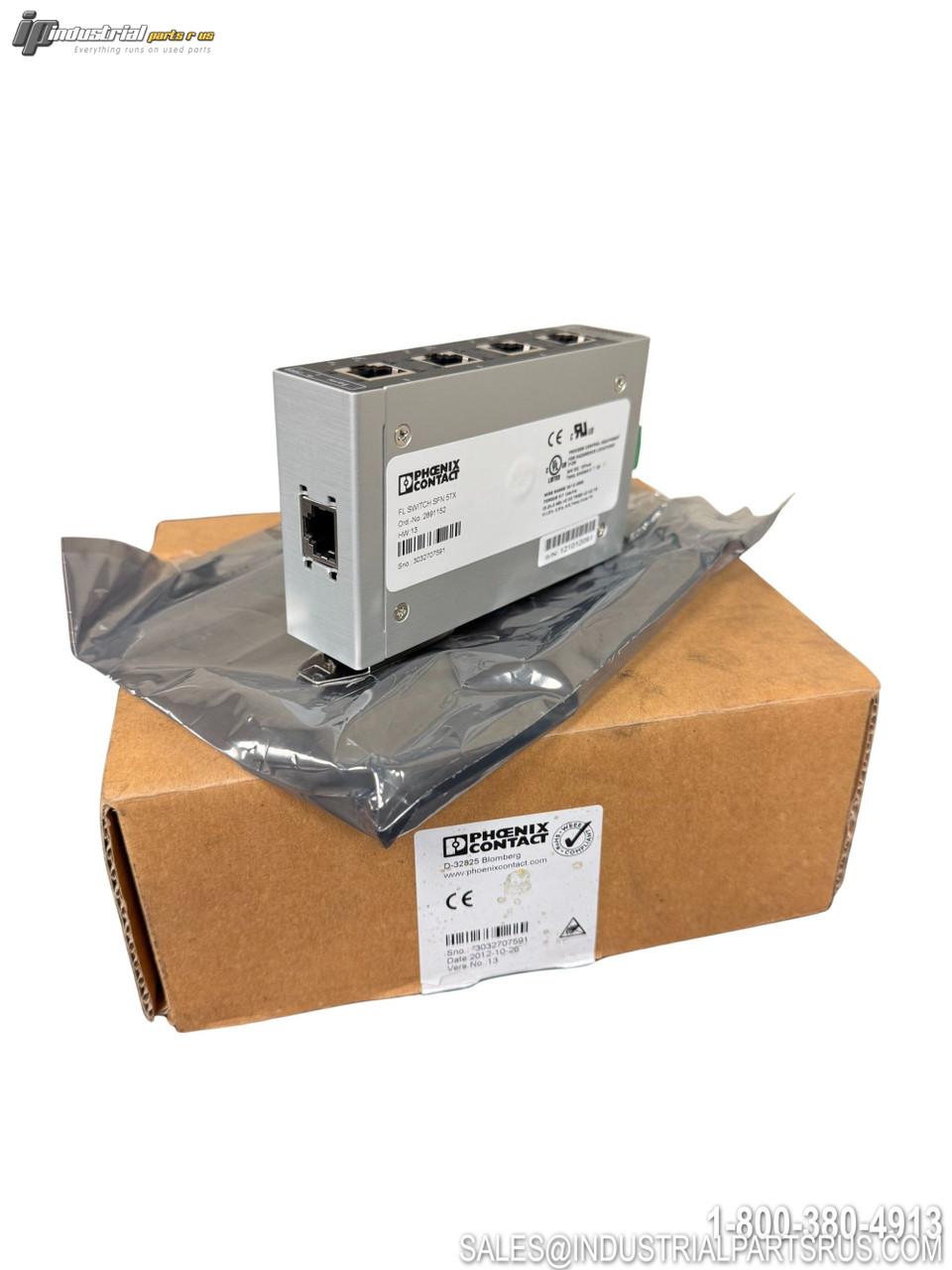

The Phoenix Contact 2891152 (FL SWITCH SFN 5TX) is a 5-port unmanaged industrial Ethernet switch designed for reliable 10/100 Mbps networking in automation and control environments. It features five RJ45 ports with auto-negotiation and autocrossing for simplified installation, and integrates into 24 VDC industrial power systems via a COMBICON screw-terminal connection. Belonging to the Factoryline SFN series, this compact DIN rail-mounted switch supports Quality of Service (QoS) packet prioritization and local LED diagnostics for network status monitoring. Compliant with IEEE 802.3 communication standards and suitable for digital industrial network architectures.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Phoenix Contact |
| Model / Part Number | 2891152 |
| Product Name | FL SWITCH SFN 5TX |
| Product Type | Industrial Ethernet Switch (Unmanaged) |
| Series | Factoryline SFN |
| Number of Ports | 5 (RJ45) |
| Port Type | RJ45 (TP Copper), Screened |
| Network Speed | 10/100 Mbps (Fast Ethernet) |
| Switch Type | Unmanaged, Store and Forward |
| Auto Negotiation | Yes (10/100 Mbps, Half/Full Duplex) |
| Auto Crossing (MDI/MDI-X) | Yes |
| Supply Voltage (Nominal) | 24 VDC |
| Supply Voltage Range | 9 VDC – 32 VDC |
| Typical Current Consumption | 90 mA at 24 VDC |
| Max Current Consumption | 205 mA at 9 VDC |
| Max Power Dissipation | 2.16 W |
| Residual Ripple | 3.6 VPP (within permitted voltage range) |
| Power Connection | COMBICON Screw Terminal, max 2.5 mm² conductor |
| Mounting Type | DIN Rail (NS 35), 30 mm width |
| Housing Material | Aluminum |
| Enclosure / IP Rating | IP20 |
| Dimensions (W x H x D) | 30 mm x 120 mm x 70 mm |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| QoS (Quality of Service) | Yes — Packet Prioritization |
| LED Diagnostics | LNK/ACT (Green), 100 Mbps Speed (Yellow), Supply (Green) |
| Transmission Medium | Copper (Twisted Pair) |
| Fiber Optic Ports | 0 |
| Wire Range | 30–12 AWG |
| Certifications / Approvals | CE, UL Listed (File E140324, E199827), cULus, Class I Div. 2, RoHS |
| Manufacturer Status | Obsolete / Discontinued |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Taiwan
Manufacturer Phoenix Contact
Enclosure Type IP20
Part Number 2891152
Shelf K-55
Model 2891152
MPN 2891152
Type Network Module
