Product Description

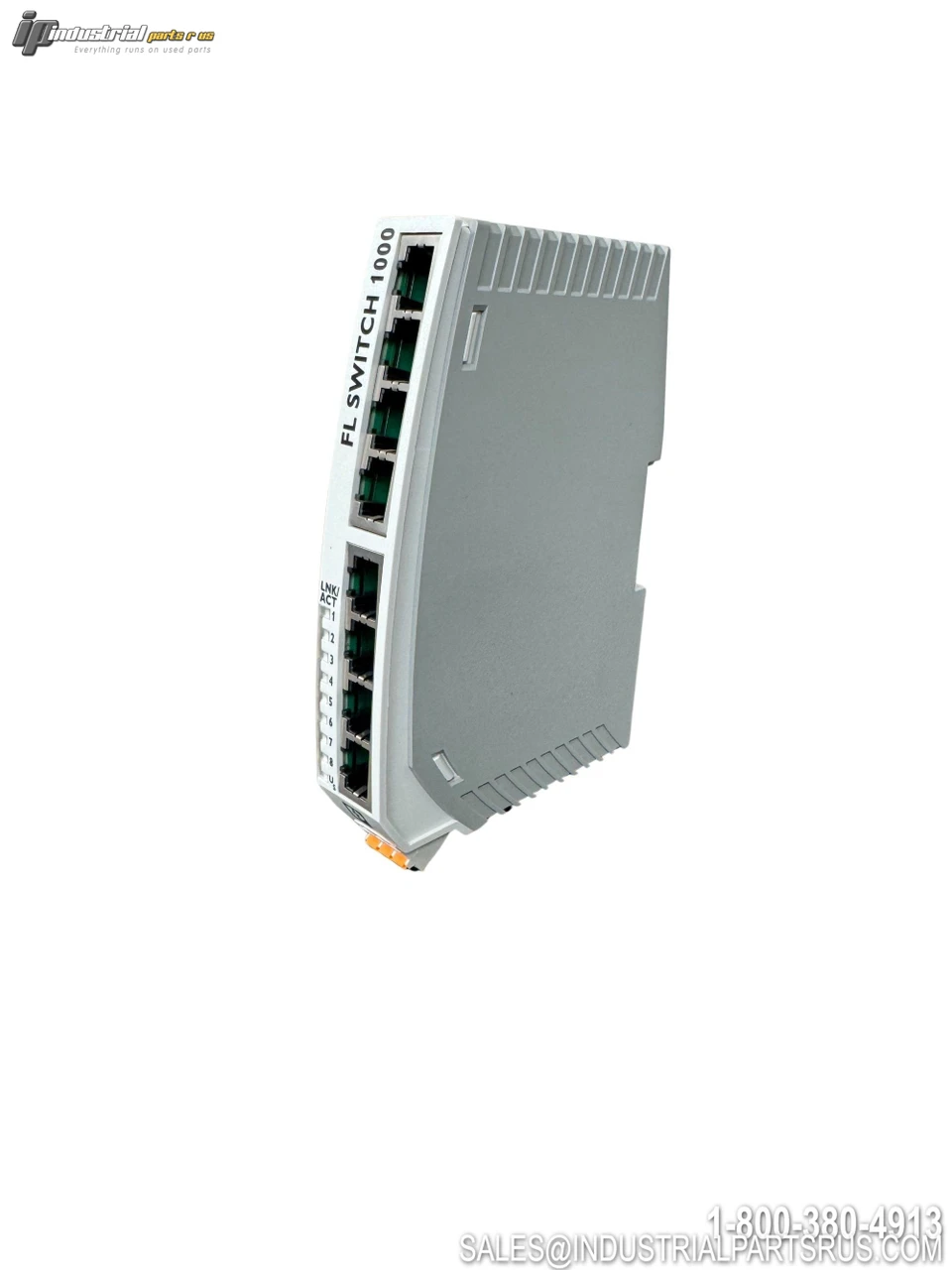

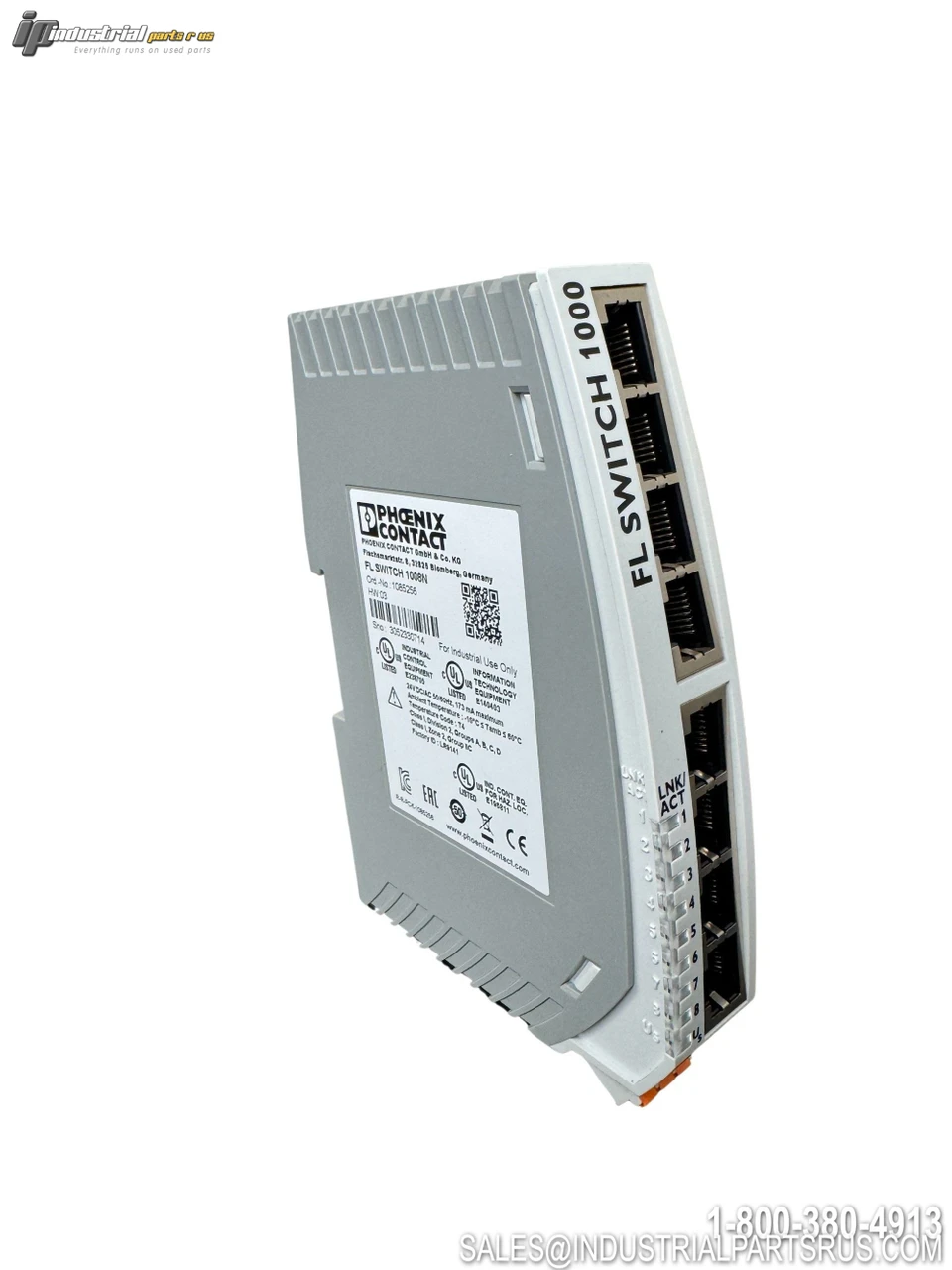

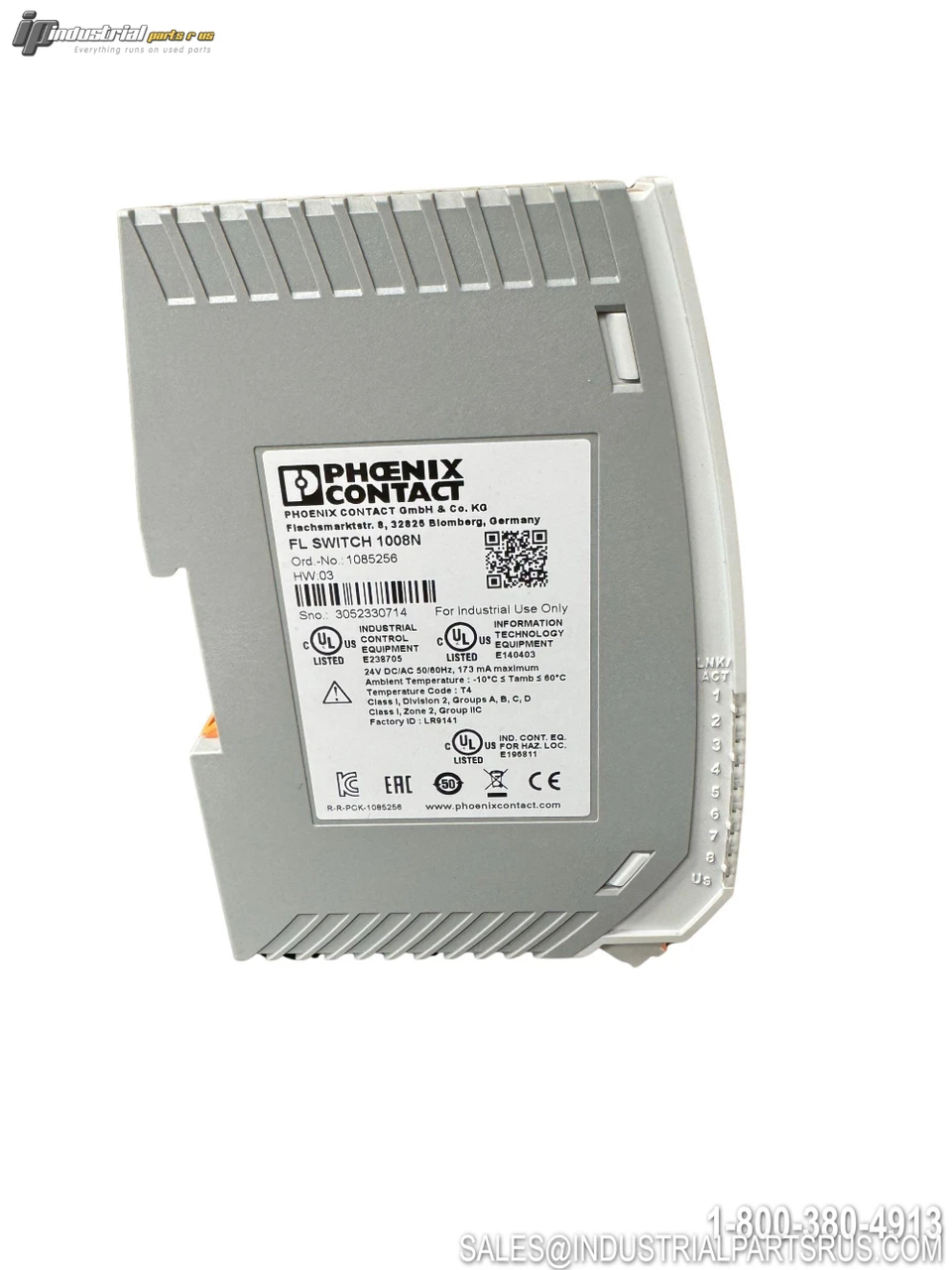

The Phoenix Contact FL Switch 1008N (Part No. 1085256) is a compact, unmanaged industrial Ethernet switch featuring eight RJ45 ports, each supporting 10/100 Mbps auto-negotiation data transmission. Designed for demanding industrial environments, it supports PROFINET Conformance Class A, Quality of Service (QoS) prioritization, and Energy-Efficient Ethernet per IEEE 802.3az. The switch mounts on standard DIN rail and is housed in a narrow, reinforced polycarbonate enclosure just 22.5 mm wide. With an MTTF of 133.9 years (MIL-HDBK-217F, 25 °C, 100% duty cycle), this switch is built for long-term reliability in automation and process control applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Phoenix Contact |
| Model / Part Number | FL Switch 1008N |
| Article / Item Number | 1085256 |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Number of Ports | 8 × RJ45 |
| Transmission Speed | 10/100 Mbps (Auto-Negotiation) |
| Transmission Physics | Ethernet in RJ45 twisted pair |
| Transmission Length | 100 m per segment |
| Switching Mode | Store and Forward |
| MAC Address Table | 2K entries |
| PROFINET Conformance Class | Class A |
| Network Standards | IEEE 802.3, 802.3u, 802.1p, 802.3az |
| Supply Voltage (DC Nominal) | 24 V DC |
| Supply Voltage Range (DC) | 9 V DC – 32 V DC |
| Supply Voltage (AC Nominal) | 24 V AC (50/60 Hz) |
| Supply Voltage Range (AC) | 18 V AC – 30 V AC (50/60 Hz) |
| Max Current Consumption | 173 mA (at 9 V DC) |
| Max Power Dissipation | 4.152 W (at 24 V DC) |
| Static Power Loss | 1.557 W |
| Residual Ripple | 3.6 V PP (within permitted voltage range) |
| Power Supply Connection | Via COMBICON plug-in connector, push-in spring connection |
| Conductor Cross Section (Rigid) | 0.2 mm² – 2.5 mm² |
| Conductor Cross Section (AWG) | AWG 24 – AWG 12 |
| Mounting Type | DIN Rail |
| Width | 22.5 mm |
| Height | 140.4 mm (147.5 mm with connector) |
| Depth | 92.4 mm |
| Housing Material | Polycarbonate, fiber reinforced |
| Housing Color | Gray (RAL 7042) |
| Cover Color | Light Gray (RAL 7035) |
| Degree of Protection | IP30 |
| Operating Temperature | -10 °C to +60 °C |

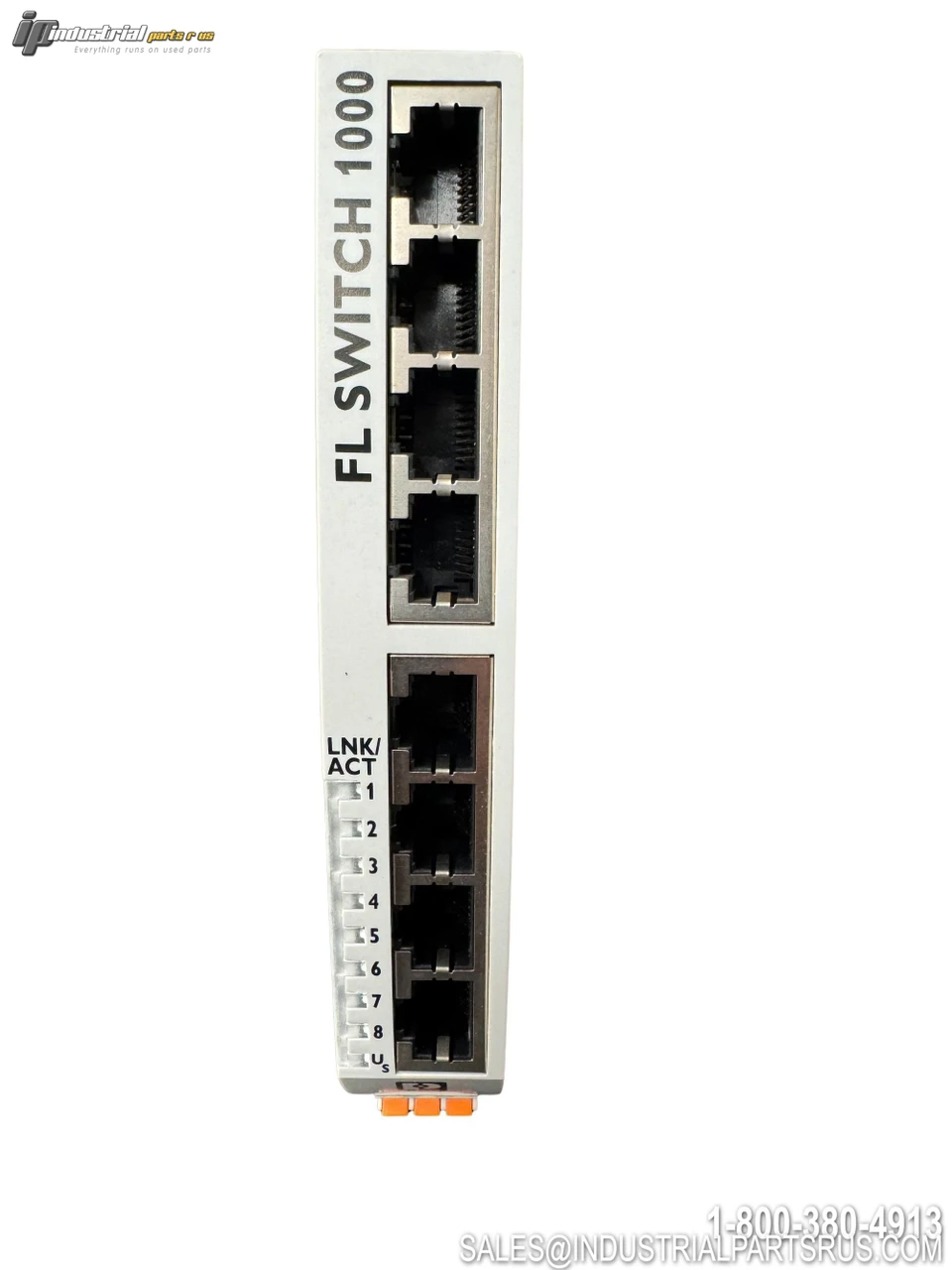

| Diagnostic Indicators | LEDs: US, link and activity per port |
| EMC Classification | Class A |
| Certifications | UL, FCC Class A, CB |
| GTIN / EAN | 4055626833590 |
| Weight (excluding packaging) | 174 g |
| Weight (including packaging) | 255 g |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Germany
Full Load Amps 173 mA at 9 V DC
Manufacturer Phoenix Contact
Enclosure Type IP30
Part Number FL SWITCH 1008N
Controller Platform PROFINET
Shelf K-33
Model FL SWITCH 1008N
MPN FL SWITCH 1008N
Type Network Module
